Compressor Tool Reference Number Applications

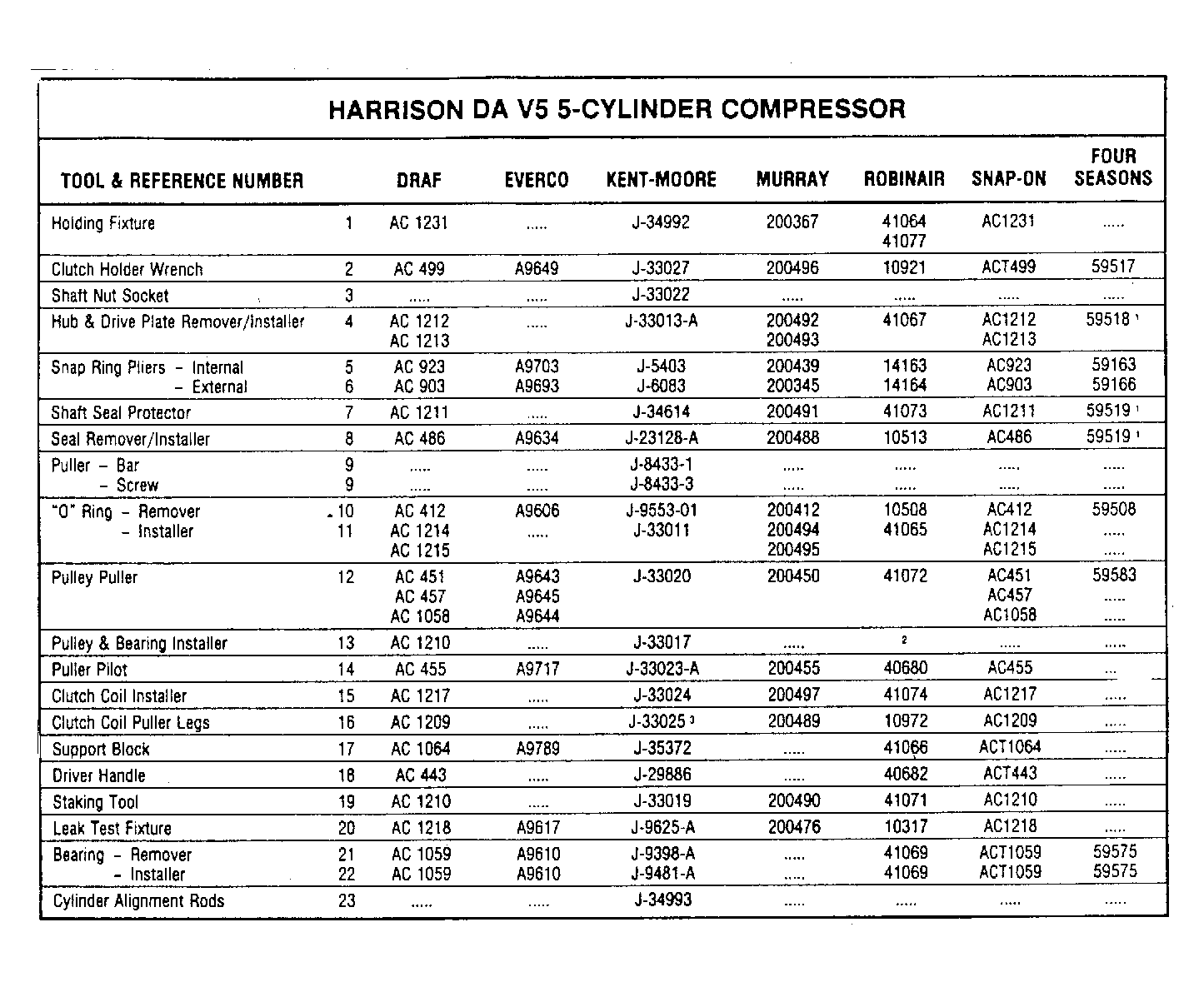

Fig 1: Harrison DA V5 Compressor Tools Number Cross-References
G6650
NOTE: Tariffed numbers in Fig. Fig 1 refer to the following: 1 - Part number is for kit. 2 - Kits needed are 41064 and 41075. 3 - Used with J-8433-1 Puller Bar & J-9433-3 Puller Screw.

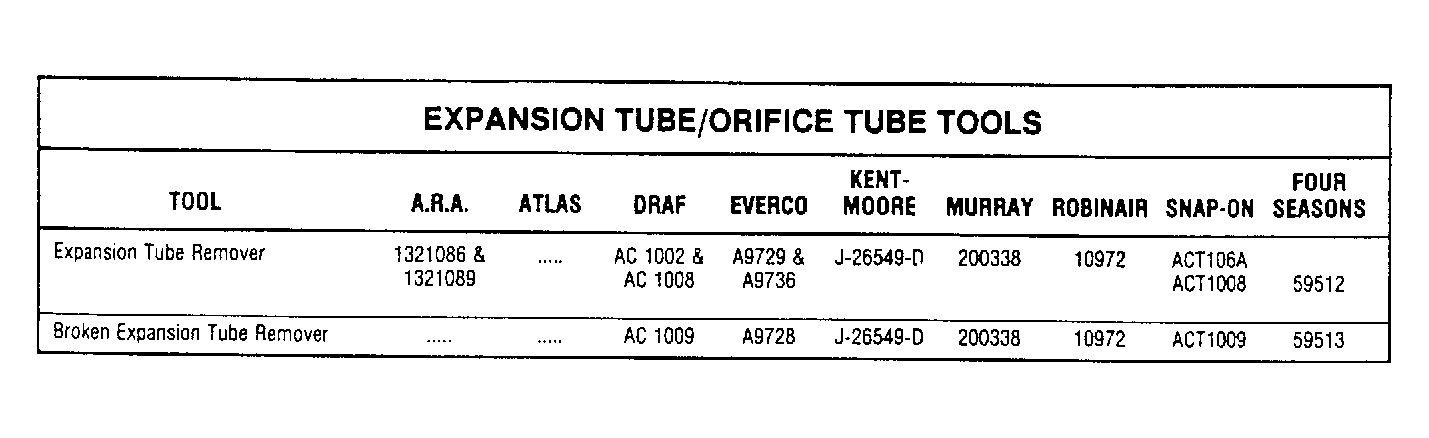

Fig 2: Expansion Tube/Orifice Tube Tool Number Cross-References
G6651
