4.3L/5.0L/5.7L Tests W/Codes: Wiring Diagram

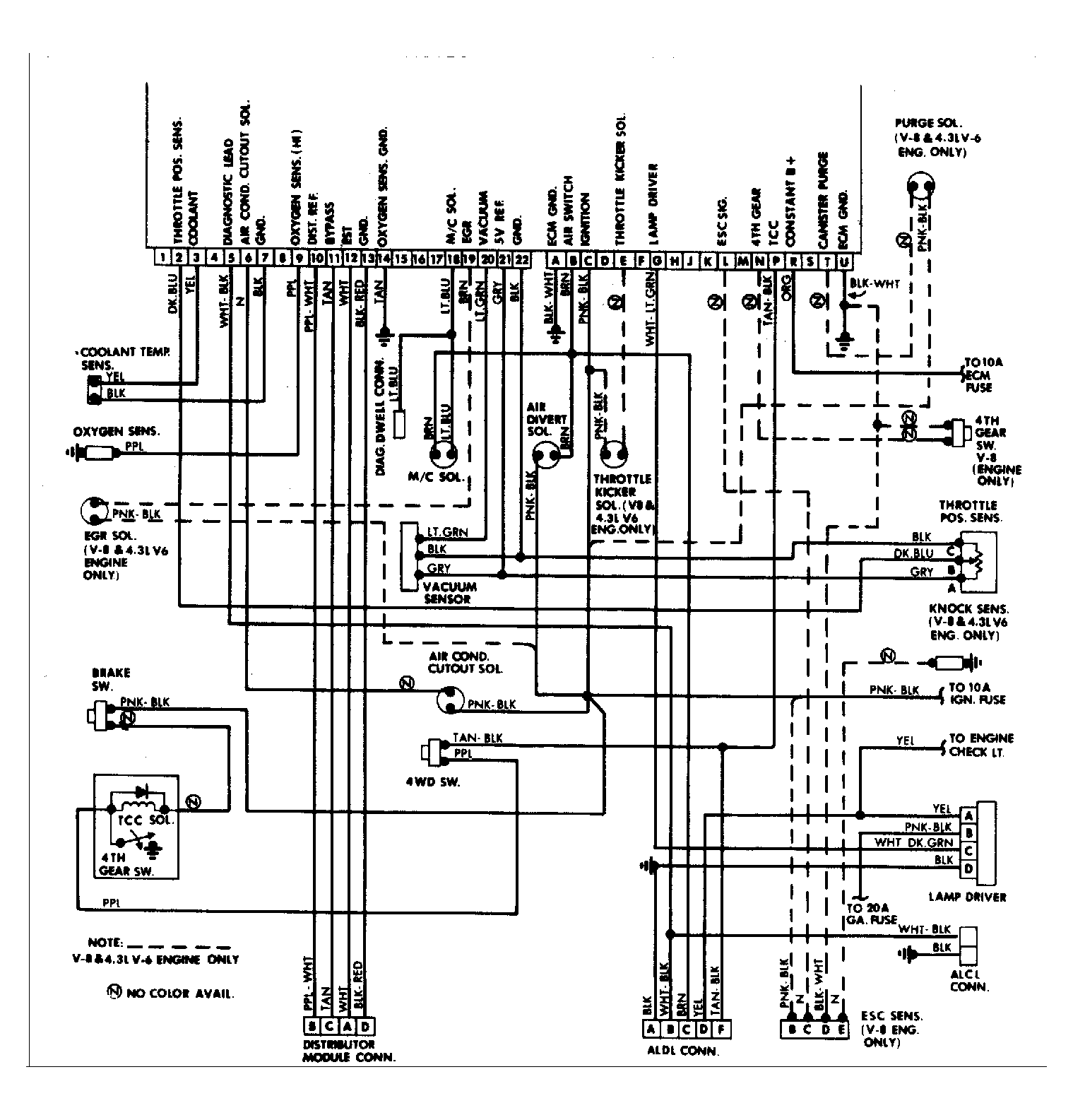

Fig 1: 4.3L, 5.0L & 5.7L Full Function Fdbk Carb. Wiring Diagram
