Diagnostic Circuit Check

Diagnostic Circuit Check determines if: 1) the ECM is operating and can recognize a fault, and 2) if any faults exist. This is the starting point for any diagnosis. If no faults are indicated, go to the Diesel Diagnostic Check (DDC) Tester Check.

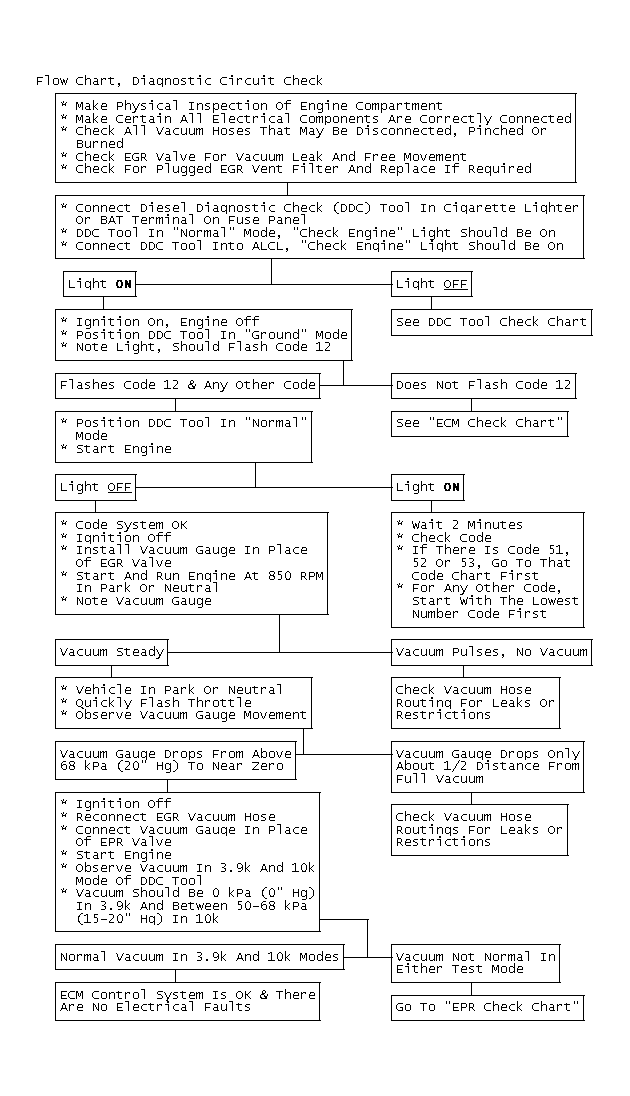

Fig 1: Flow Chart, Diagnostic Circuit Check

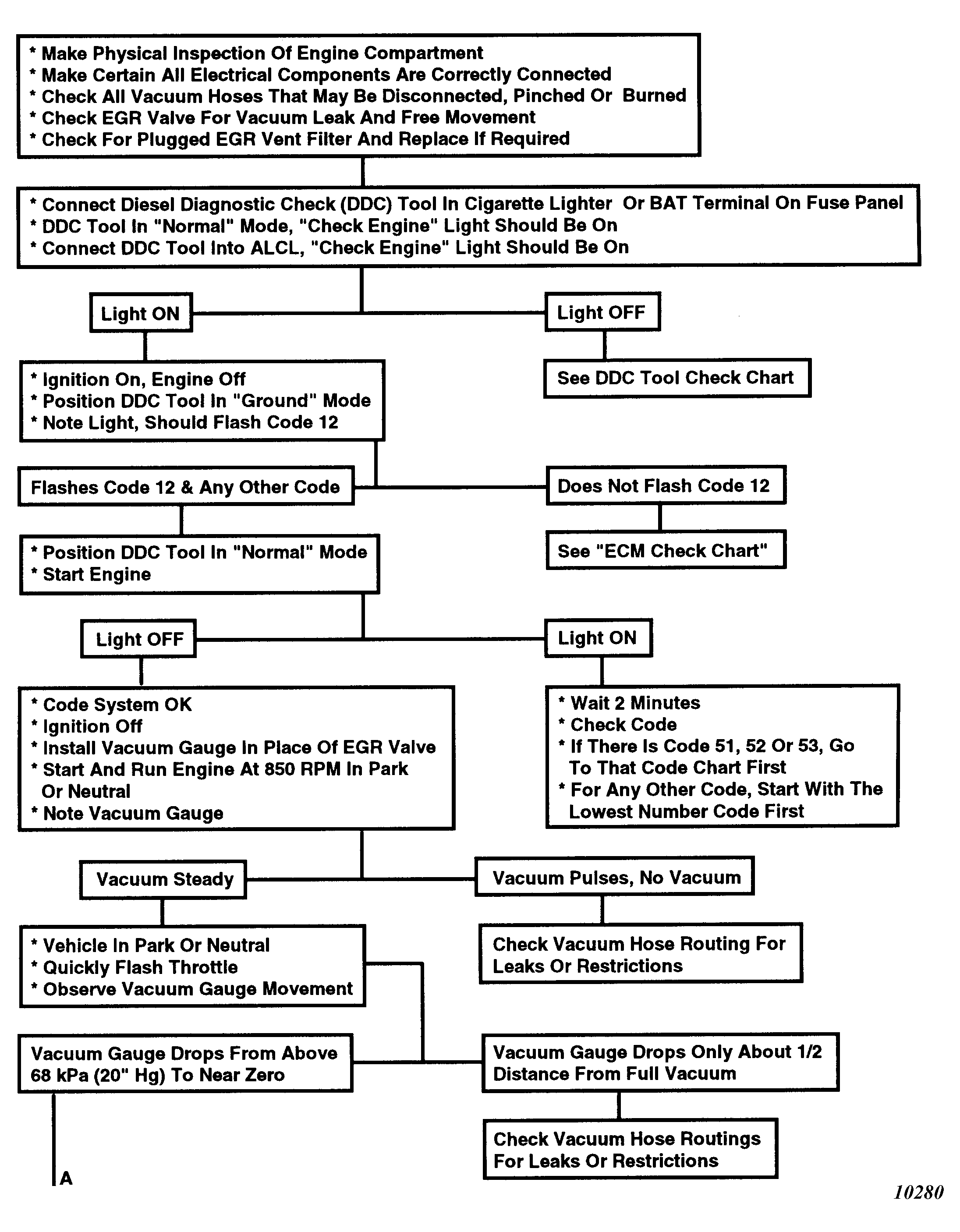

Fig 2: Flow Chart, Diagnostic Circuit Check
