G30 Series Alignment Specifications
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 1985 GMC Vandura Special, 1985 GMC Vandura, 1985 GMC Rally Camper Special, 1985 GMC Rally, and 1985 GMC Magnavan. However, it is still accessible from the selected car via links, so may be relevant.
G30 SERIES ALIGNMENT SPECIFICATIONS
| Application | Specification | |||
|---|---|---|---|---|

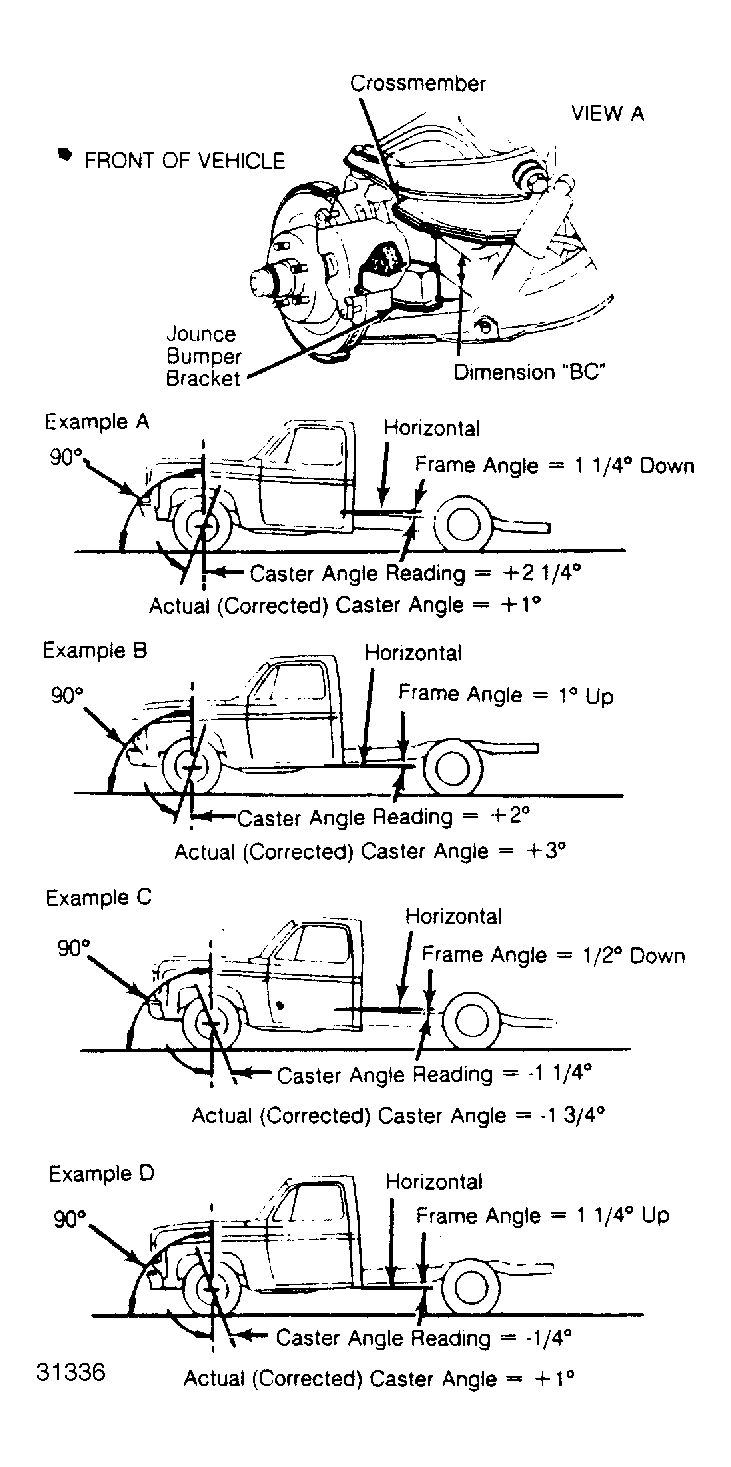

| Axle Gap (In Inches) (1) | ||||
| 1.50 | 3.094° Caster | |||
| 1.62 | 3.034° Caster | |||
| 1.75 | 2.967° Caster | |||
| 1.88 | 2.800° Caster | |||
| 2.00 | 2.667° Caster | |||
| 2.12 | 2.500° Caster | |||
| 2.25 | 2.367° Caster | |||
| 2.38 | 2.233° Caster | |||
| 2.50 | 2.100° Caster | |||
| 2.62 | 1.967° Caster | |||
| 2.75 | 1.833° Caster | |||
| 2.88 | 1.633° Caster | |||
| 3.00 | 1.500° Caster | |||
| 3.12 | 1.367° Caster | |||
| 3.25 | 1.233° Caster | |||
| 3.38 | 1.117° Caster | |||
| 3.50 | 0.967° Caster | |||
| 3.62 | 0.833° Caster | |||
| 3.75 | 0.700° Caster | |||
| 3.88 | 0.583° Caster | |||
| 4.00 | 0.450° Caster | |||
| 4.12 | 0.333° Caster | |||
| 4.25 | 0.200° Caster | |||
| 4.38 | 0.100° Caster | |||
| 4.50 | 0.033° Caster | |||
| Camber | 0.3° | |||
| Toe-In (In Inches) | 3/16" | |||
|
||||
