A/C Clutch Control

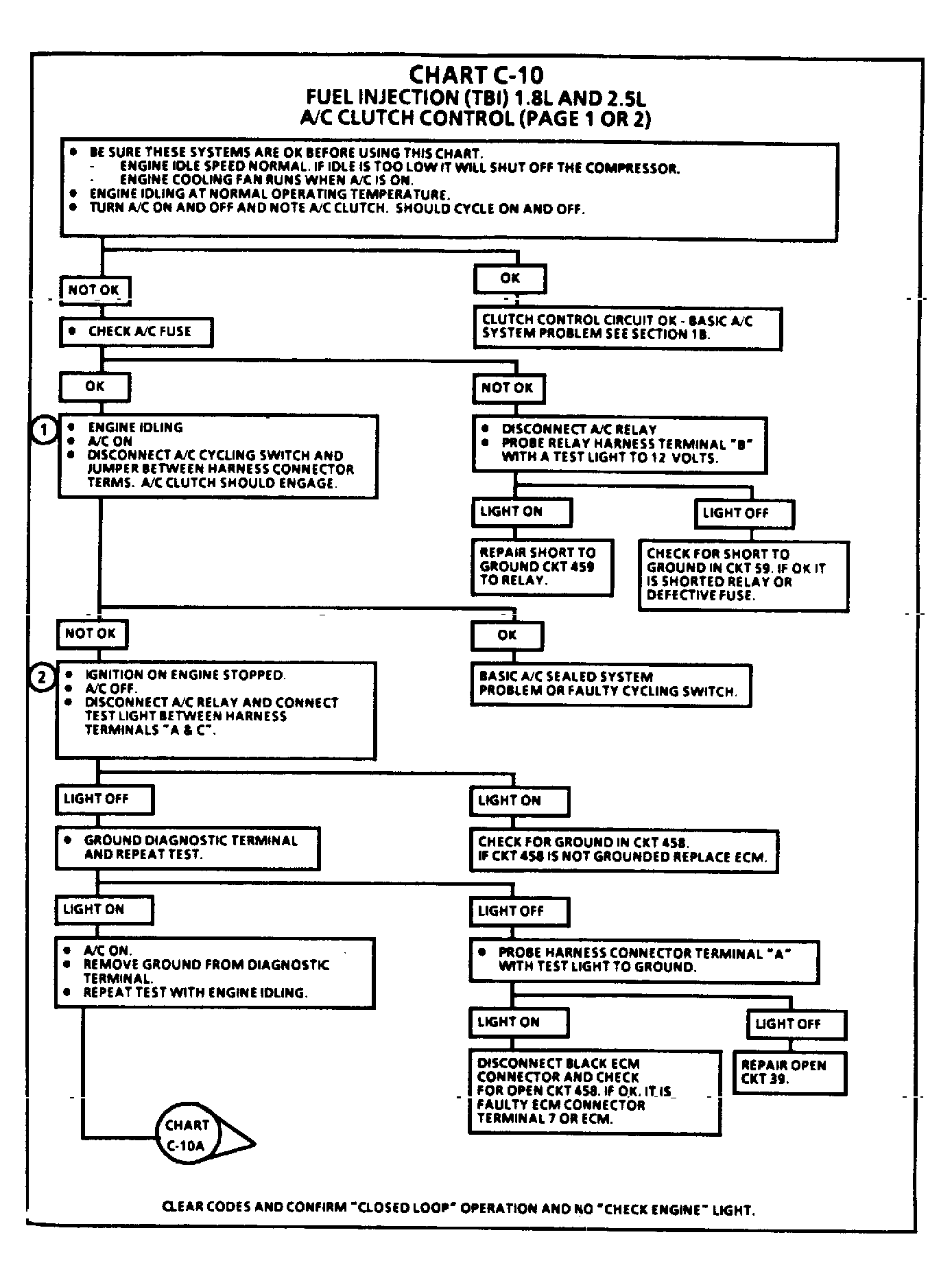

Fig 1: A/C Clutch Control (1 Of 2)
G6521

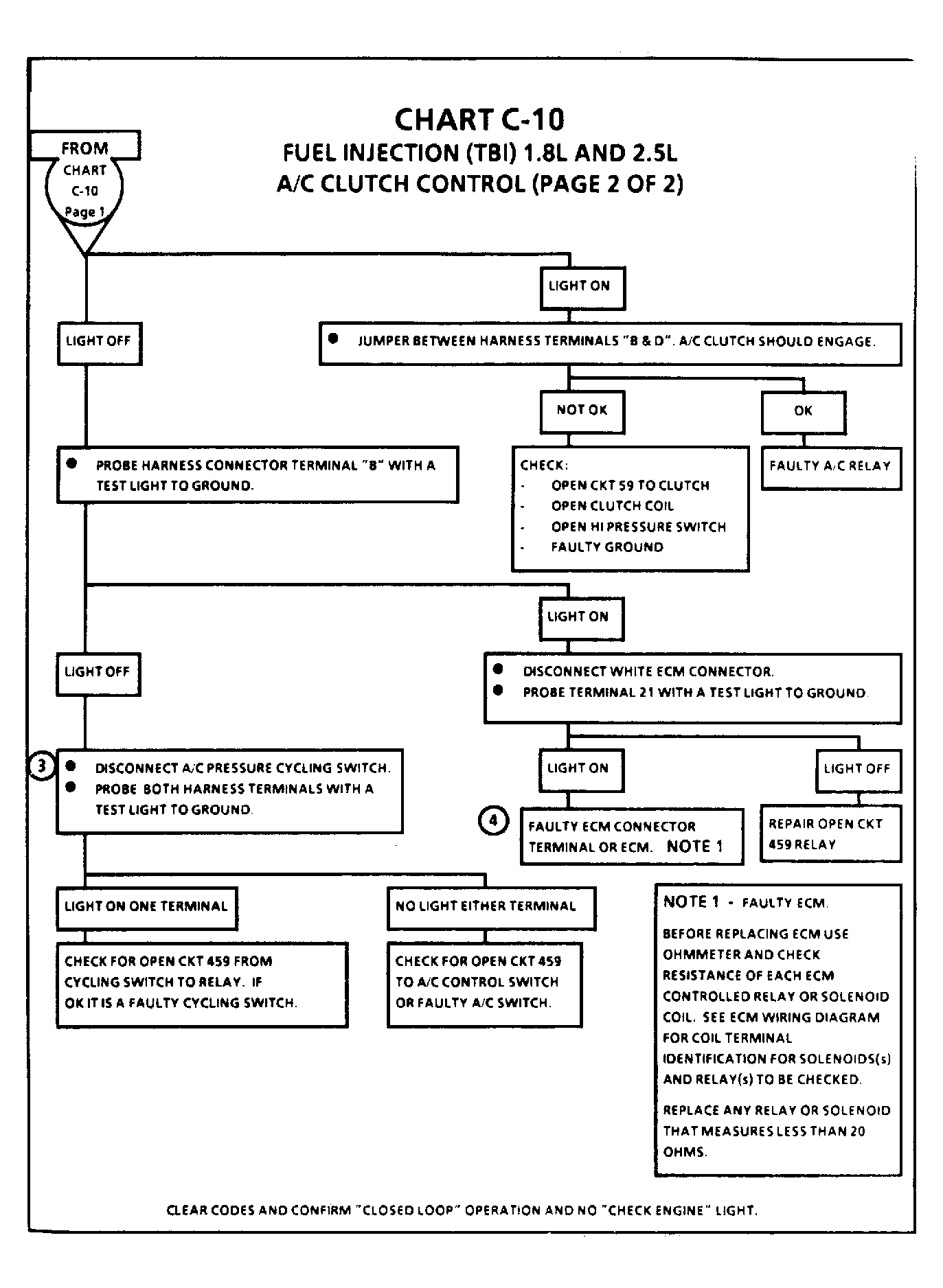

Fig 2: A/C Clutch Control (2 Of 2)
G10270
