Jacking & Hoisting: Jacking

To raise front end of vehicle, position jack under front end jacking point. To raise rear of vehicle, position jack under rear end jacking point.

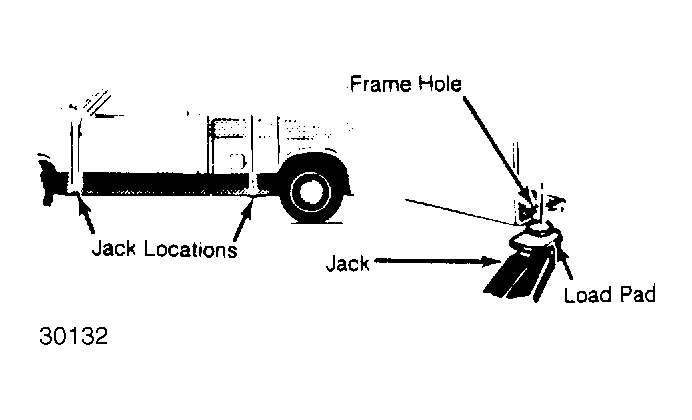

Fig 1: Jacking Points (Astro & Safari)

Courtesy of GENERAL MOTORS CORP.

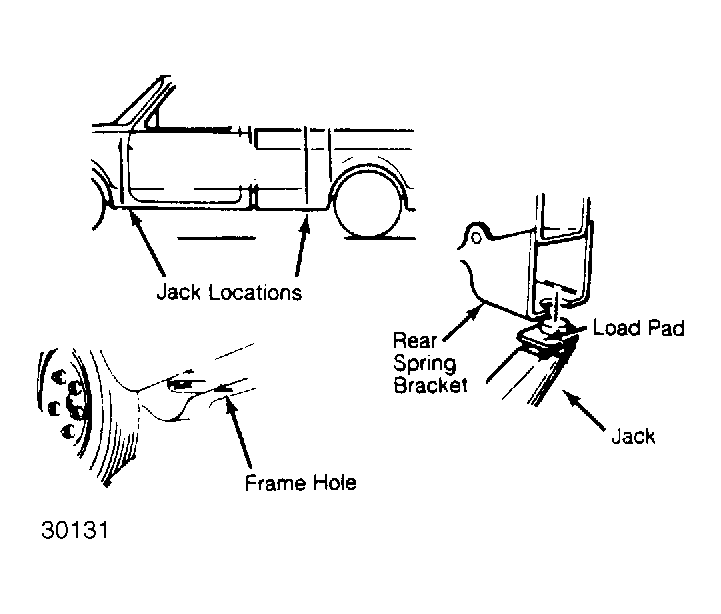

Fig 2: Jacking Points (Blazer & Suburban)

Courtesy of GENERAL MOTORS CORP.

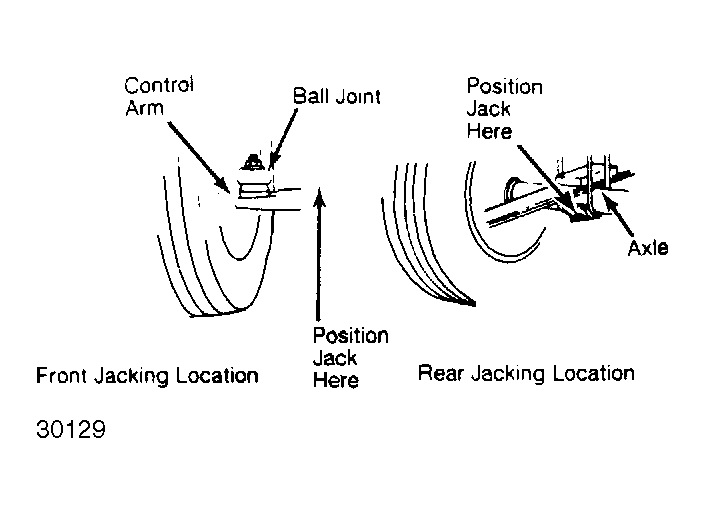

Fig 3: Jacking Points (Van)

Courtesy of GENERAL MOTORS CORP.

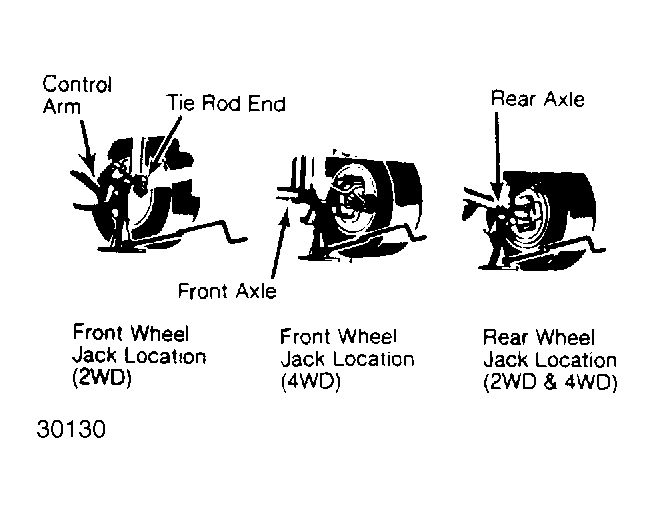

Fig 4: Jacking Points (Pickup)

Courtesy of GENERAL MOTORS CORP.

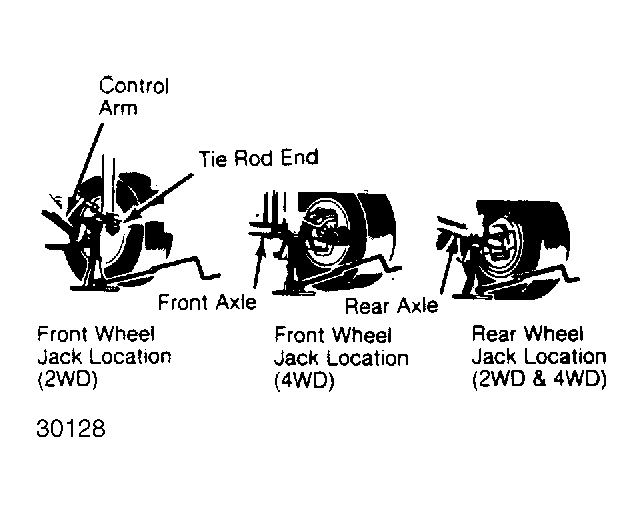

Fig 5: Jacking Points (S10/15)

Courtesy of GENERAL MOTORS CORP.

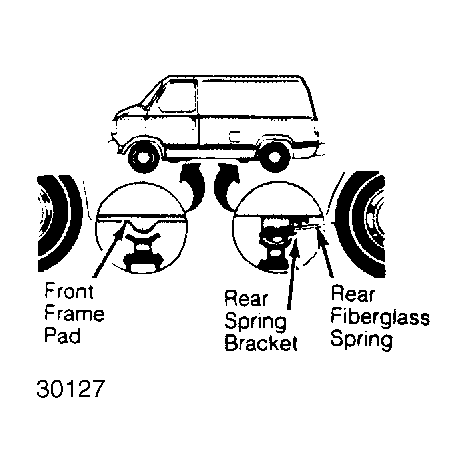

Fig 6: Jacking Points (S10 Blazer)

Courtesy of GENERAL MOTORS CORP.
