Off/On/Resume/Accel Switch Test

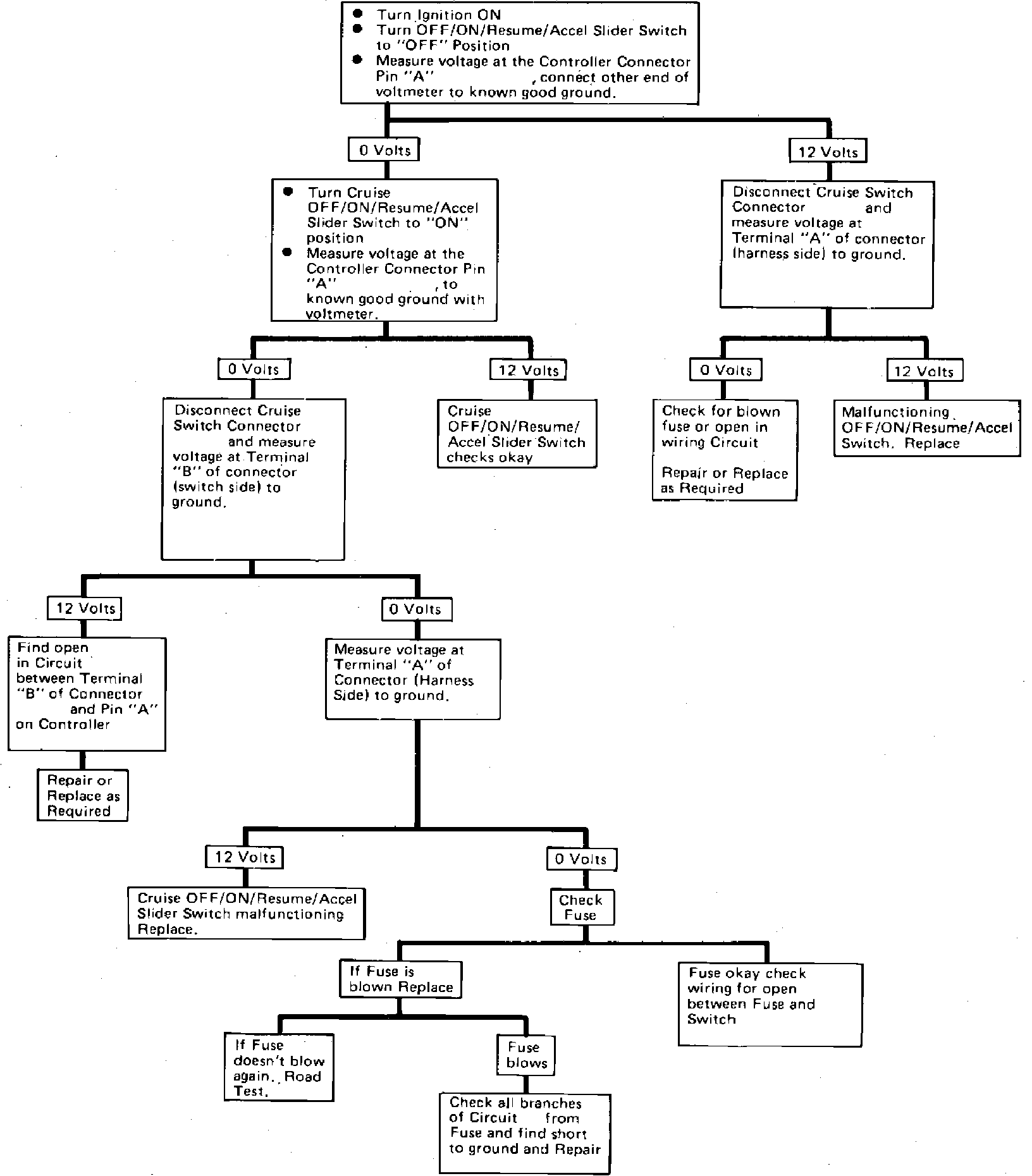

Fig. 15 On/Off/Resume/Accel switch diagnostic chart. Custom Cruise III:





Refer to Fig. 15 to check Off/On/Resume/Accel switch and related wiring.
