Electronic Spark Control Sensor

RH Side Of Engine:




Lower RH Side Of Engine

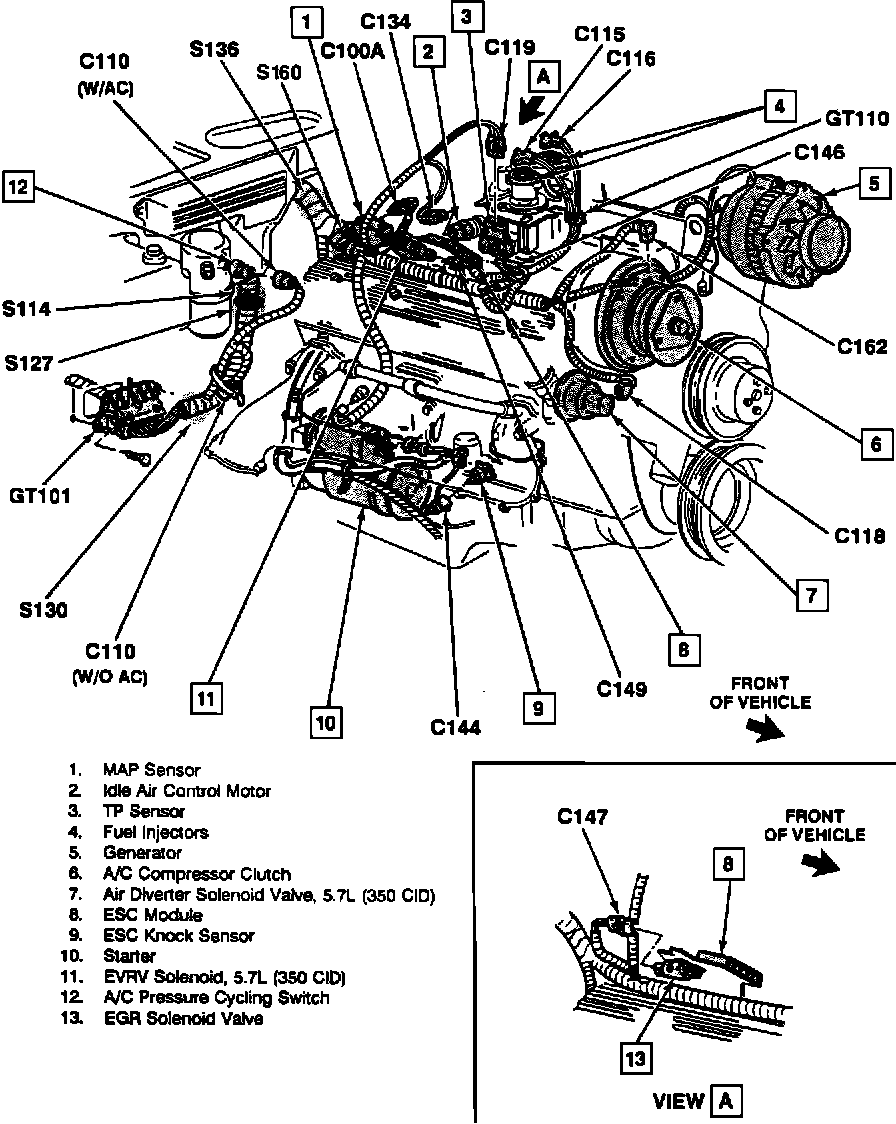

Applicable to: 1992 5.0L/V8-305 & 5.7L/V8-350 Engines

RH Side Of Engine:




Lower RH Side Of Engine

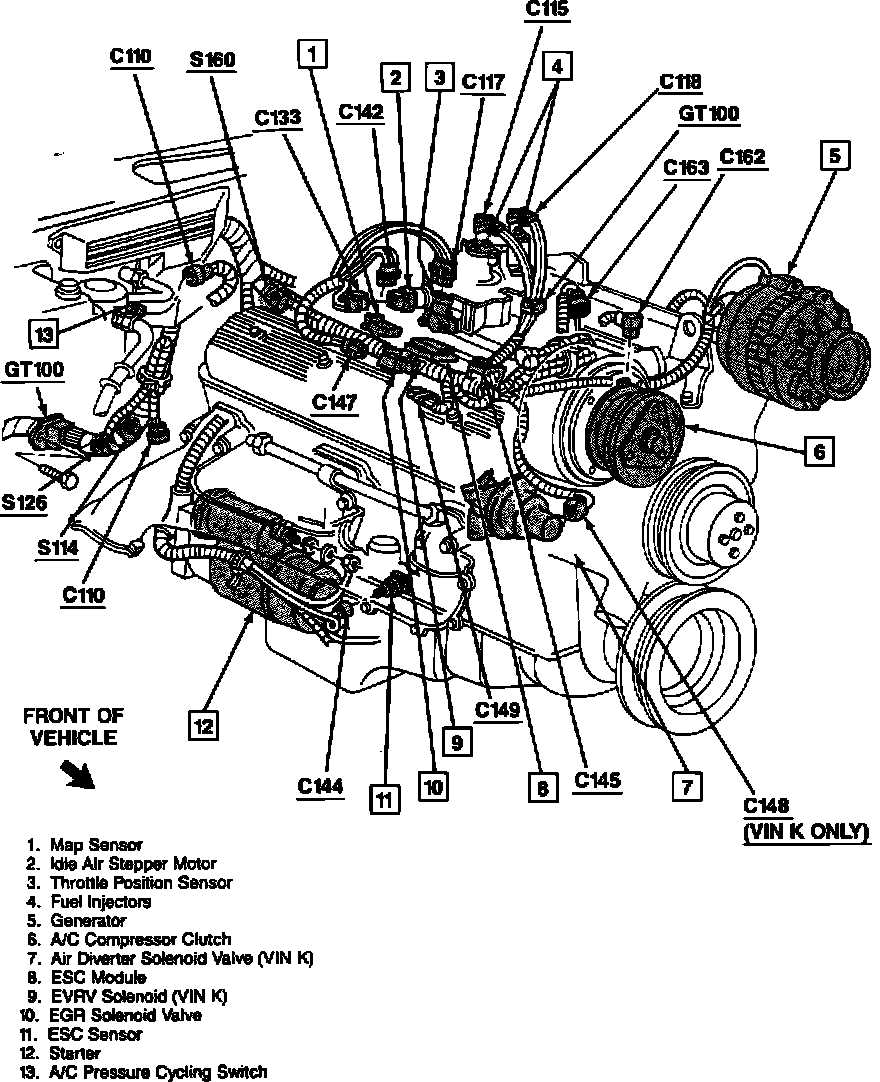

Applicable to: 1991 5.0L/V8-305 & 5.7L/V8-350 Engines
