Electronic Spark Timing Module (EST)

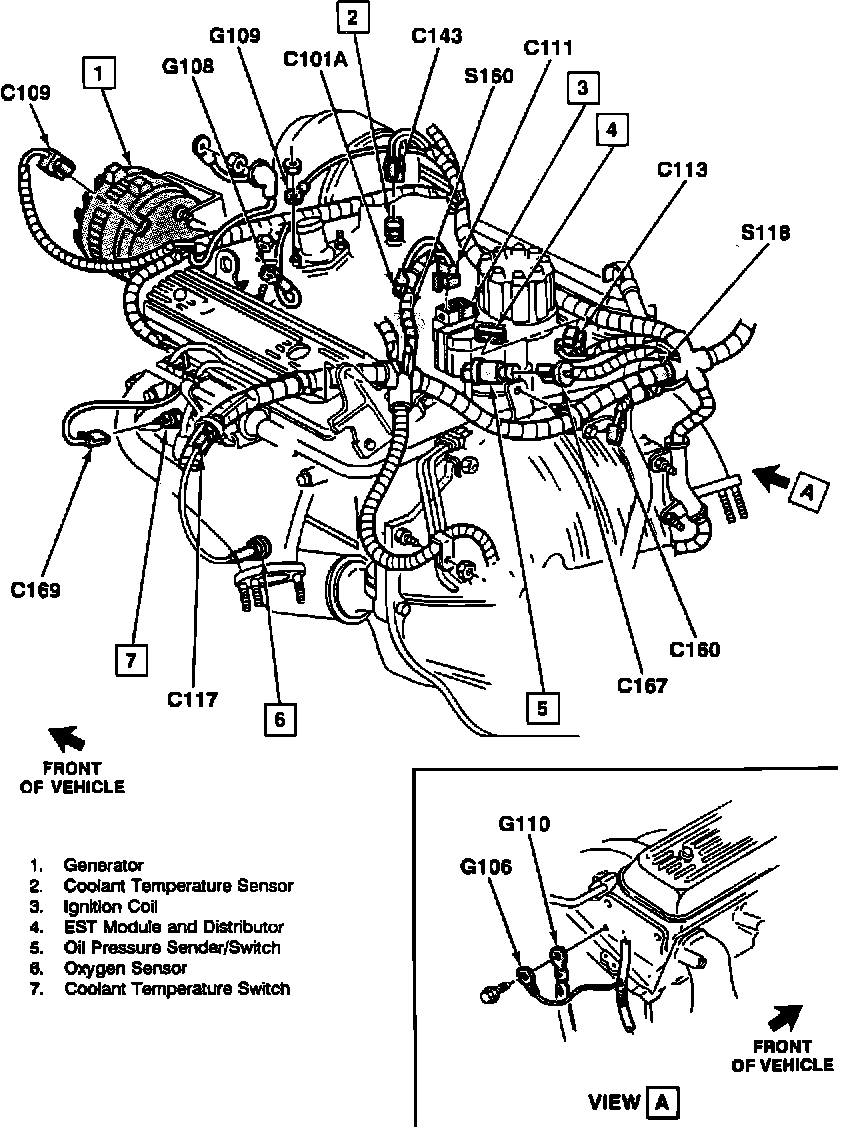

LH Side Of Engine:

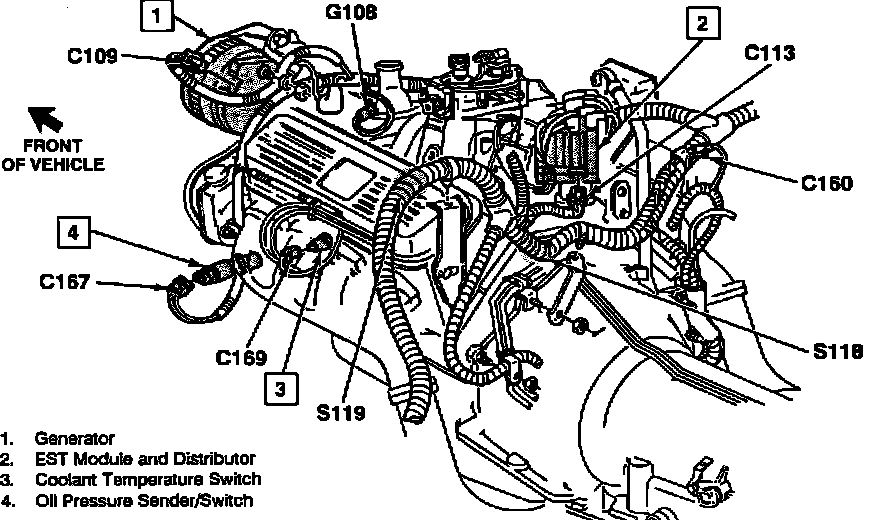

Center Rear Of Engine

Applicable to: 1991 7.4L/V8-454 Engine

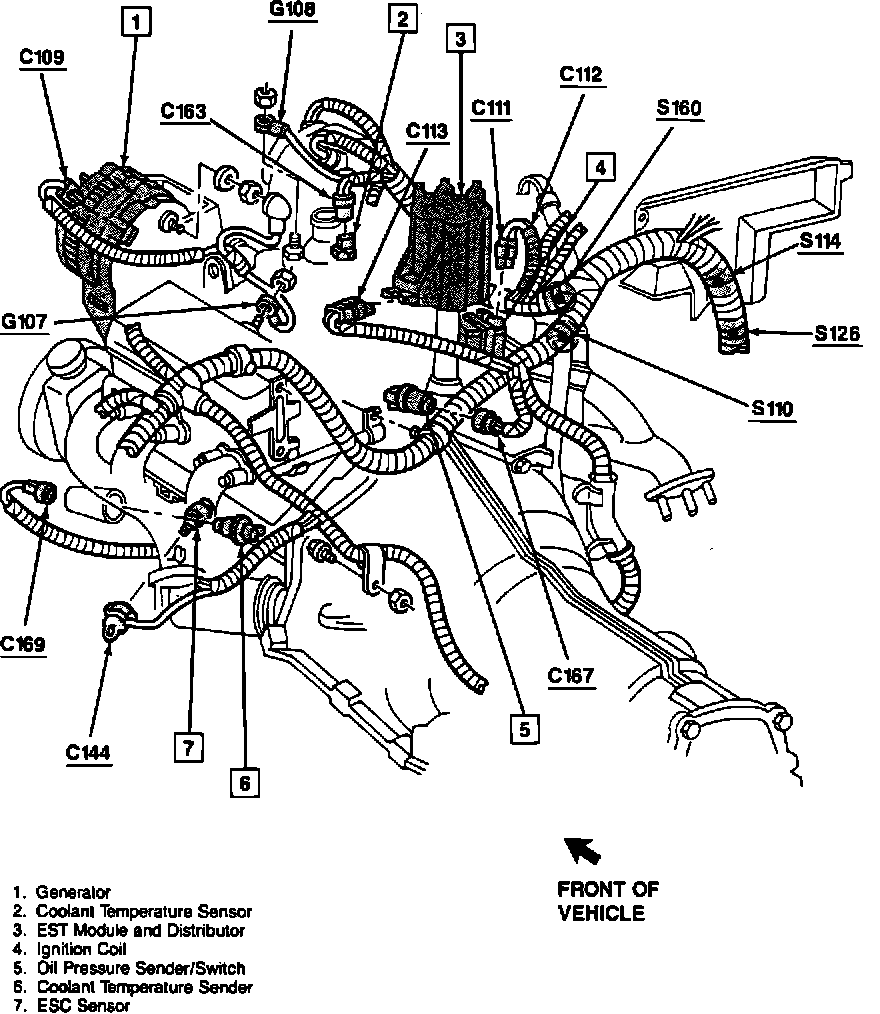

LH Side Of Engine:

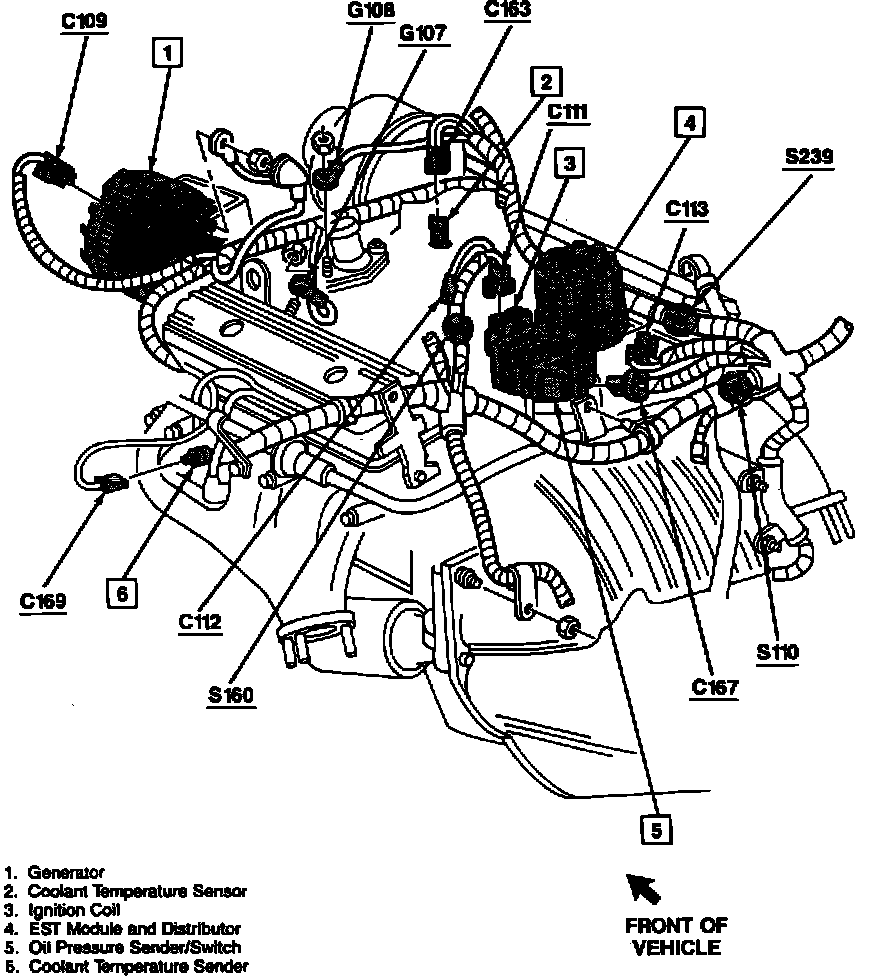

Center Rear Of Engine

Applicable to: 1992 7.4L/V8-454 Engine

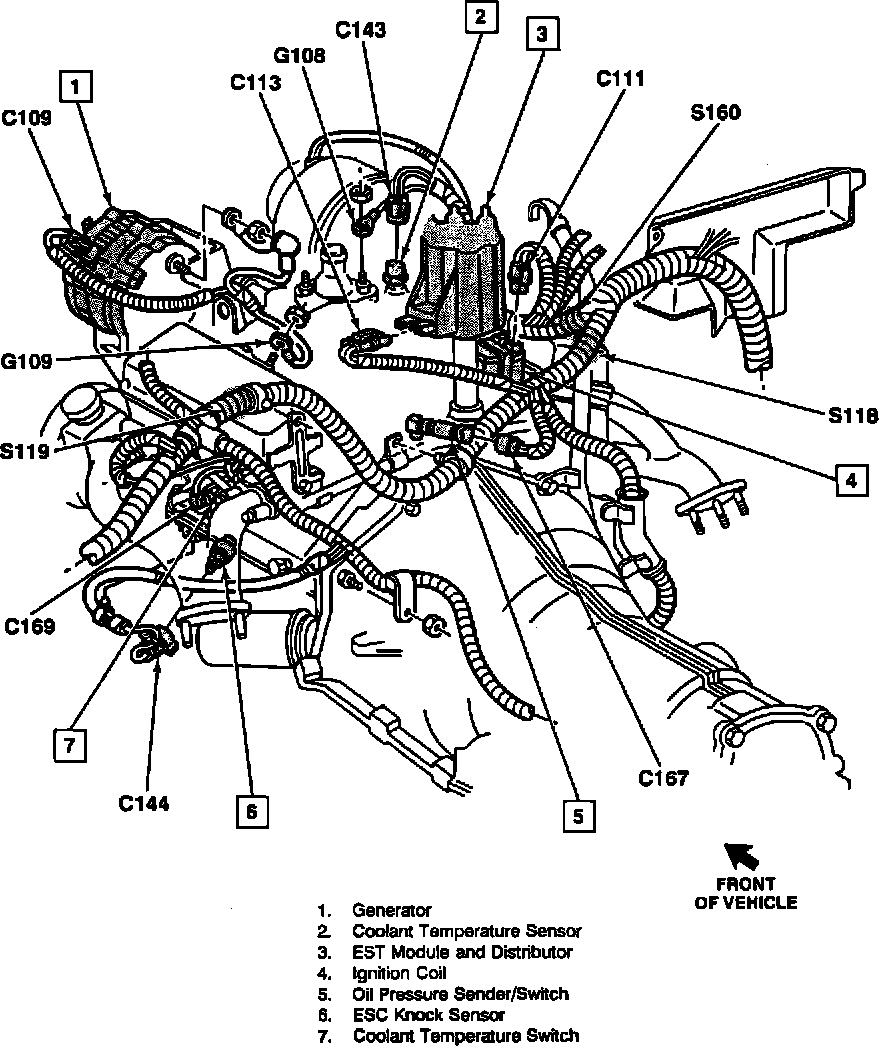

LH Side Of Engine:

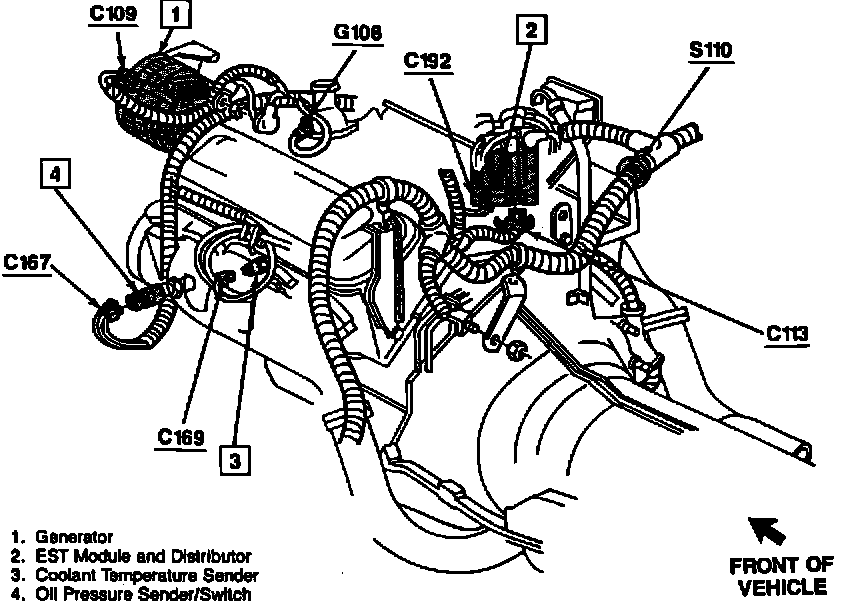

Center Rear Of Engine

Applicable to: 1991 4.3L/V6-262 Engine

LH Side Of Engine:




Center Rear Of Engine

Applicable to: 1991 5.0L/V8-305 & 5.7L/V8-350 Engines

LH Side Of Engine:




Center Rear Of Engine

Applicable to: 1992 4.3L/V6-262 Engine

LH Side Of Engine:




Center Rear Of Engine

Applicable to: 1992 5.0L/V8-305 & 5.7L/V8-350 Engines
