Connector Identification

WARNING: This page is about a different car, the 1995 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

CONNECTOR IDENTIFICATION DIRECTORY

Connector	See
A/C Clutch Relay	Fig 1
Auto Shutdown (ASD) Relay	Fig 2 & Fig 3
Crankshaft Position Sensor	Fig 4
Exhaust Gas Recirculation (EGR) Solenoid	Fig 5
Engine Coolant Temperature (ECT) Sensor	Fig 6
Evaporative Purge Solenoid	Fig 7
Fuel Pump	Fig 8
Fuel Pump Relay	Fig 9 & Fig 10
Idle Air Control (IAC) Motor	Fig 11
Manifold Absolute Pressure (MAP) Sensor	Fig 12
02S Connector	Fig 13
Powertrain Control Module (PCM)	Fig 19
Radiator Fan Relay	Fig 14
Torque Converter Clutch (TCC) Solenoid	Fig 15
Throttle Position (TP) Sensor	Fig 16
Torque Converter Clutch/Overdrive Solenoid	Fig 17
Transmission Temperature Sensor	Fig 18

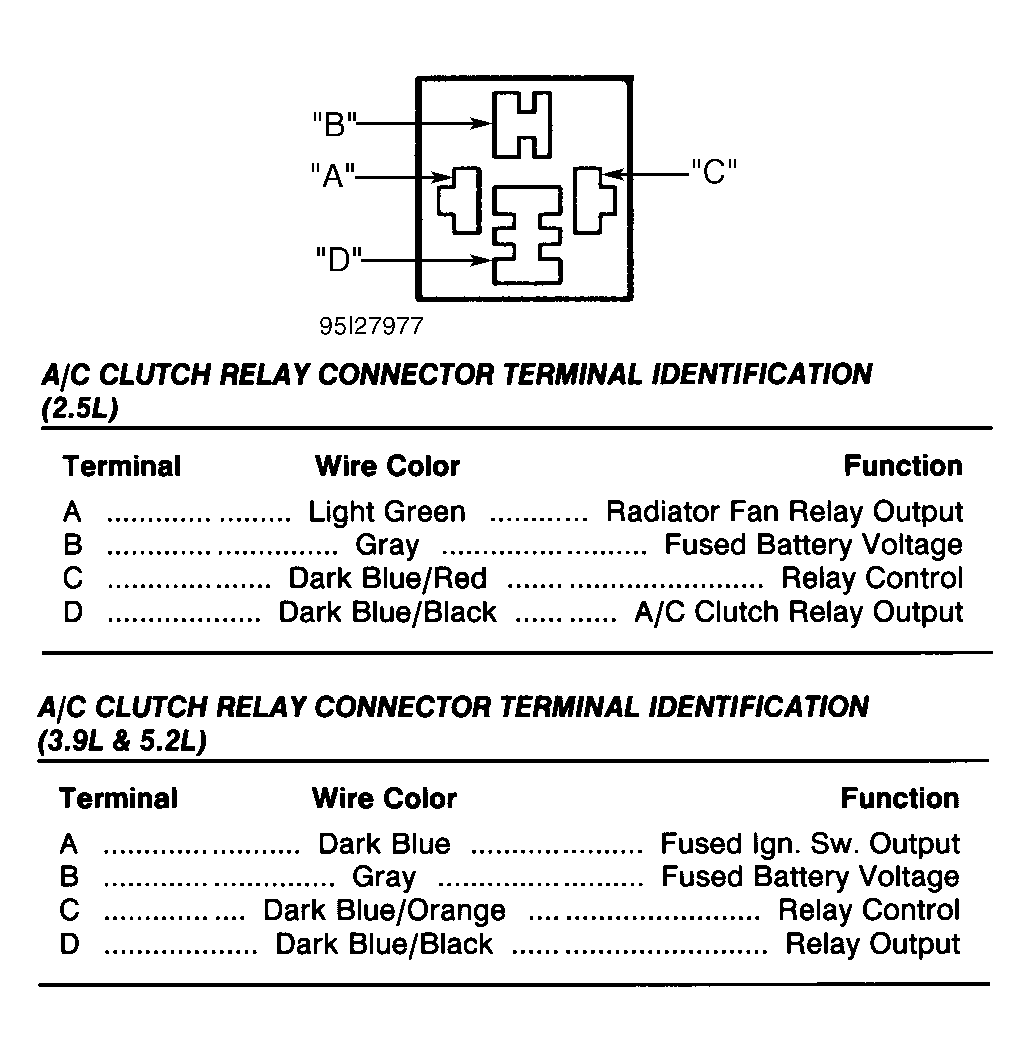

A/C CLUTCH RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Light Green	Radiator Fan Relay Output
B	Red/Light Green	Fused Battery Voltage
C	Dark Blue/Red	Relay Control
D	Dark Blue/Black	A/C Clutch Relay Output

Fig 1: Identifying A/C Clutch Relay Connector Terminals (Dakota)

Courtesy of CHRYSLER CORP.

ASD RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
A	Dark Blue	Fused Ign. Sw. Output
B	Red/White	Fused Battery Voltage
C	Dark Blue/Yellow	Relay Control
D	Dark Green/Orange	Relay Output

Fig 2: ASD Relay Connector Terminal ID - 1 Of 2 (Dakota)

Courtesy of CHRYSLER CORP.

Fig 3: ASD Relay Connector Terminal ID - 2 Of 2 (Dakota)

Courtesy of CHRYSLER CORP.

CRANKSHAFT POSITION SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Orange	8-Volt Supply
2	Black/Light Blue	Ground
3	Gray/Black	Signal

Fig 4: Identifying Crankshaft Sensor Connector Terminals (Dakota)

Courtesy of CHRYSLER CORP.

EGR SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Dark Blue	Fused Ign. Sw. Output
2	Gray/Yellow	Control

Fig 5: Identifying EGR Solenoid Connector Terminals (Dakota)

Courtesy of CHRYSLER CORP.

ECT SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Tan/Black	Signal
2	Black/Light Blue	Ground

Fig 6: ECT Sensor Connector Terminal ID (Dakota)

Courtesy of CHRYSLER CORP.

EVAPORATIVE PURGE SOLENOID CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Dark Blue	Fused Ign. Switch Output
2	Pink/Black	Solenoid Control

Fig 7: Evaporative Purge Solenoid Connector Terminal ID (Dakota)

Courtesy of CHRYSLER CORP.

FUEL PUMP CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Dark Green/Black	Fuel Pump Relay Output
2	Dark Blue	Sending Unit Feed
3	---	Not Used
4	Black	Sending Unit Ground
5	Black	Fuel Pump Ground

Fig 8: Fuel Pump Connector Terminal ID (Dakota)

Courtesy of CHRYSLER CORP.

FUEL PUMP RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue	Fused Ign. Sw. Output
B	Red/White	Fused Battery Voltage
C	Dark Blue/Yellow	ASD Relay Control
D	Dark Green/Black	Fuel Pump Relay Output

Fig 9: Fuel Pump Relay Connector Terminal ID - 1 Of 2 (Dakota)

Courtesy of CHRYSLER CORP.

Fig 10: Fuel Pump Relay Connector Terminal ID - 2 Of 2 (Dakota)

Courtesy of CHRYSLER CORP.

IAC MOTOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Gray/Red	IAC Driver No. 3
2	Yellow/Black	IAC Driver No. 2
3	Brown/White	IAC Driver No. 1
4	Violet/Black	IAC Driver No. 4

Fig 11: IAC Motor Connector Terminal ID (Dakota)

Courtesy of CHRYSLER CORP.

MAP SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Dark Green/Red	Signal
3	Violet/White	5-Volt Supply

Fig 12: MAP Sensor Connector Terminal ID (Dakota)

Courtesy of CHRYSLER CORP.

O2S CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Light Blue	Sensor Ground
2	Black/Dark Green	Signal
3	Black/Tan	Heater Ground
4	Dark Green/Orange	ASD Relay Output

Fig 13: Identifying O2S Connector Terminals (Dakota)

Courtesy of CHRYSLER CORP.

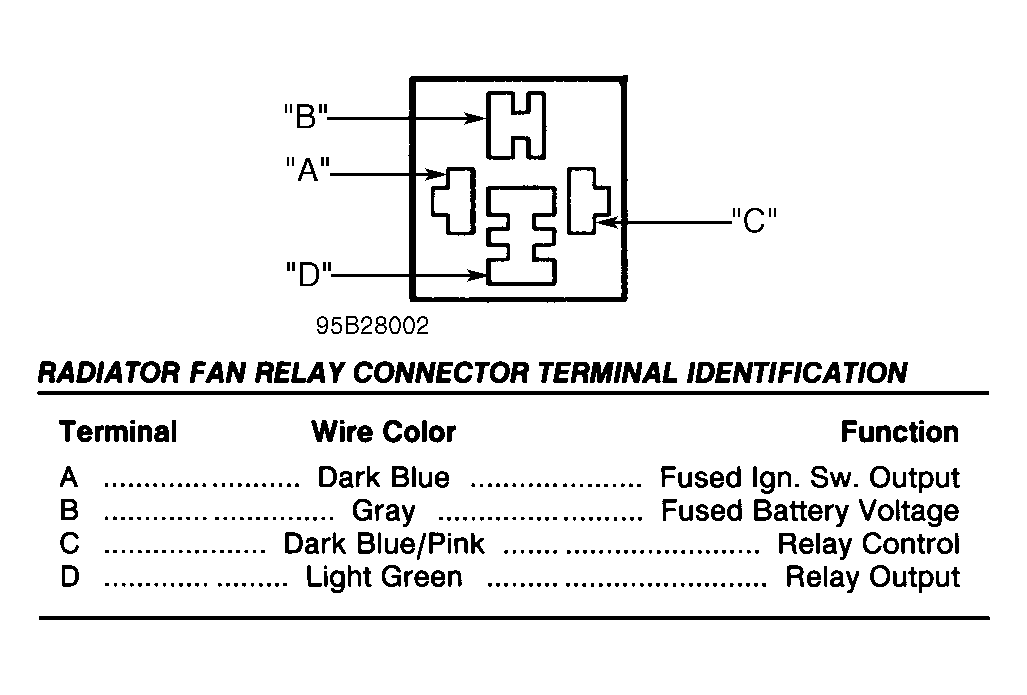

RADIATOR FAN RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue	Fused Ign. Sw. Output
B	Gray	Fused Battery Voltage
C	Dark Blue/Pink	Relay Control
D	Light Green	Relay Output

Fig 14: Radiator Fan Relay Connector Terminal ID (Dakota)

Courtesy of CHRYSLER CORP.

TCC SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	---	Not Used
2	Dark Blue	Fused Ign. Sw. Output
3	Orange/Black	Solenoid Control

Fig 15: TCC Solenoid Connector Terminal ID (Dakota)

Courtesy of CHRYSLER CORP.

TPS CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Orange/Dark Blue	Signal
3	Violet/White	5-Volt Supply

Fig 16: Throttle Position (TP) Sensor Connector Terminal ID (Dakota)

Courtesy of CHRYSLER CORP.

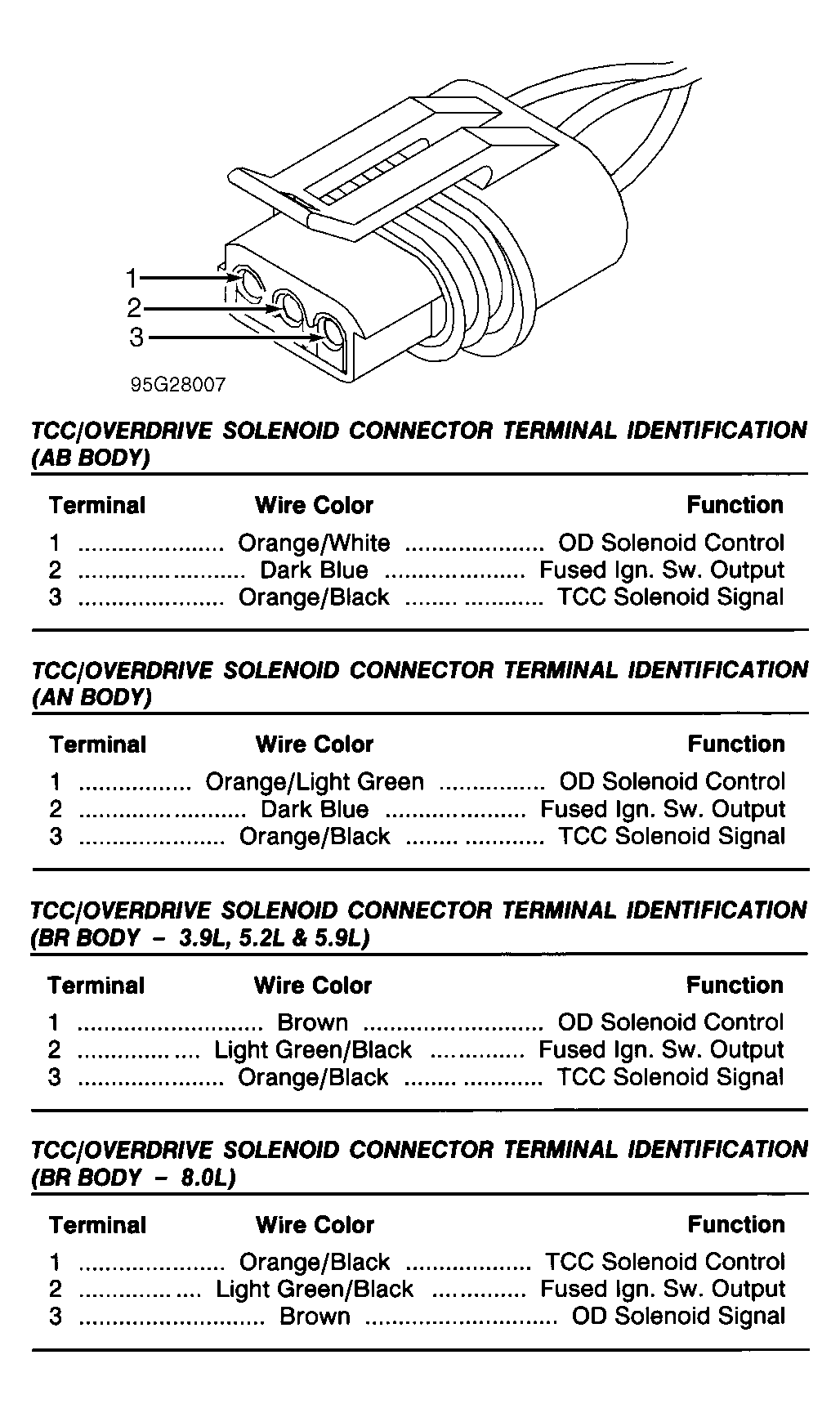

TCC/OVERDRIVE SOLENOID CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Orange/Light Green	OD Solenoid Control
2	Dark Blue	Fused Ign. Sw. Output
3	Orange/Black	TCC Solenoid Signal

Fig 17: TCC/Overdrive Solenoid Connector Terminal ID (Dakota)

Courtesy of CHRYSLER CORP.

TRANSMISSION TEMPERATURE SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Violet	Sensor Signal
2	Black/Light Blue	Ground

Fig 18: Transmission Temperature Sensor Connector Terminal ID (Dakota)

Courtesy of CHRYSLER CORP.

Fig 19: PCM Connector Terminal ID (Dakota)

Courtesy of CHRYSLER CORP.
