Cruise Control Switch: Service and Repair

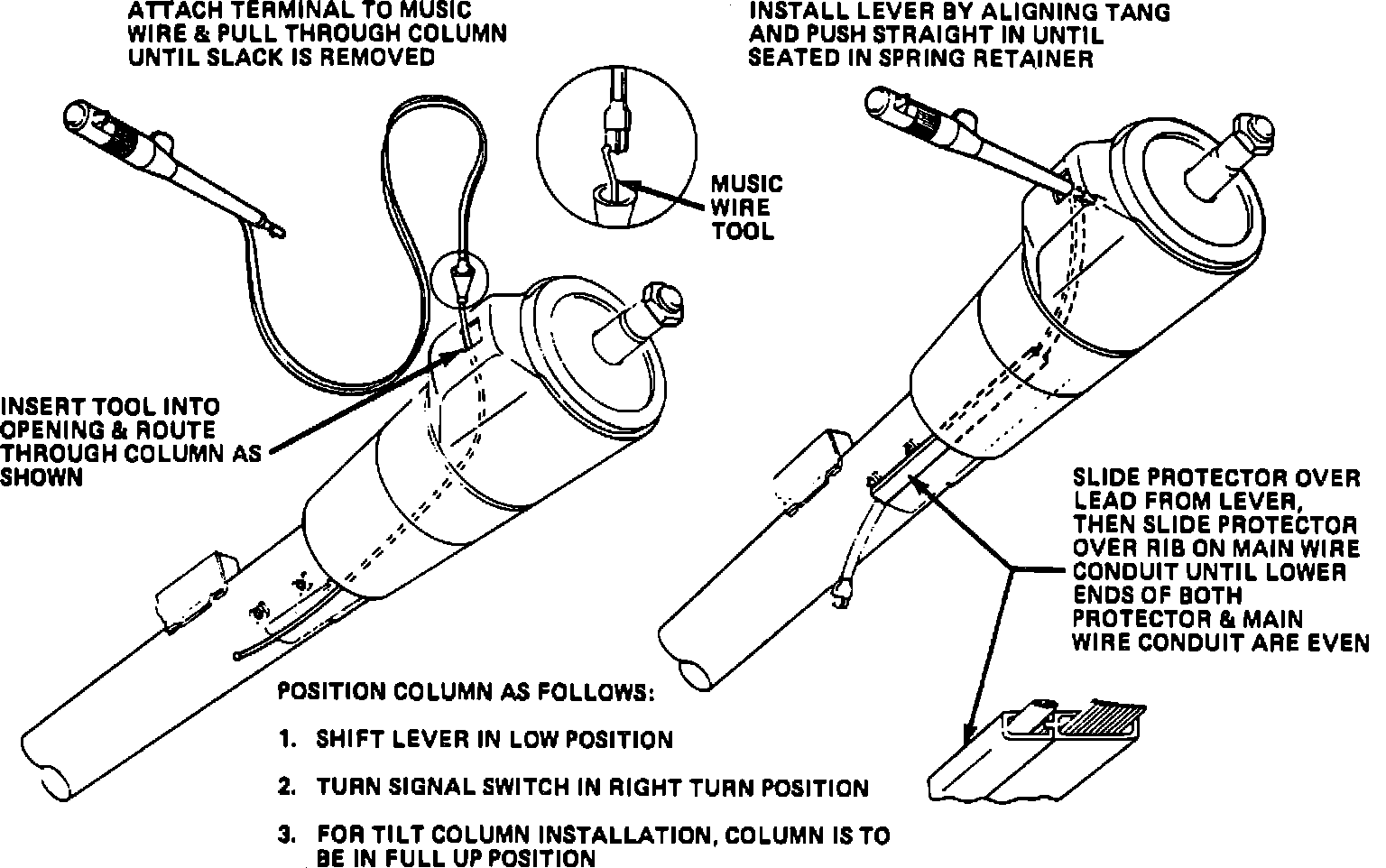

Fig. 40 Mode control replacement:

1. Remove steering wheel, lower steering column covers and steering lock plate cover, if equipped.
2. Disconnect mode control connector from main harness connector and attach a suitable length of flexible wire to mode control harness.
3. Tape joint between wire and control harness to aid removal, then remove control assembly as shown in Fig. 40.
4. Reverse procedure to install.
