Inline Fuse

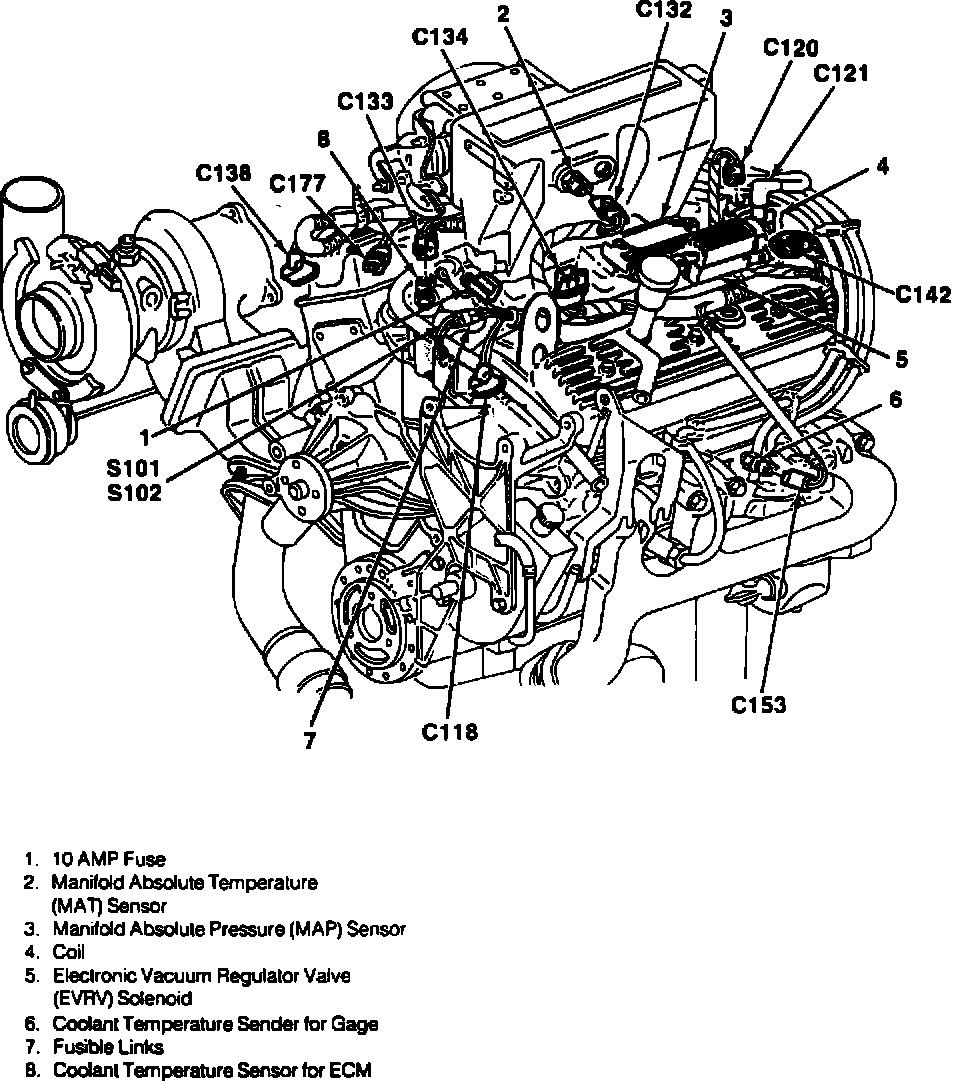

LH Front Side Of Engine.:

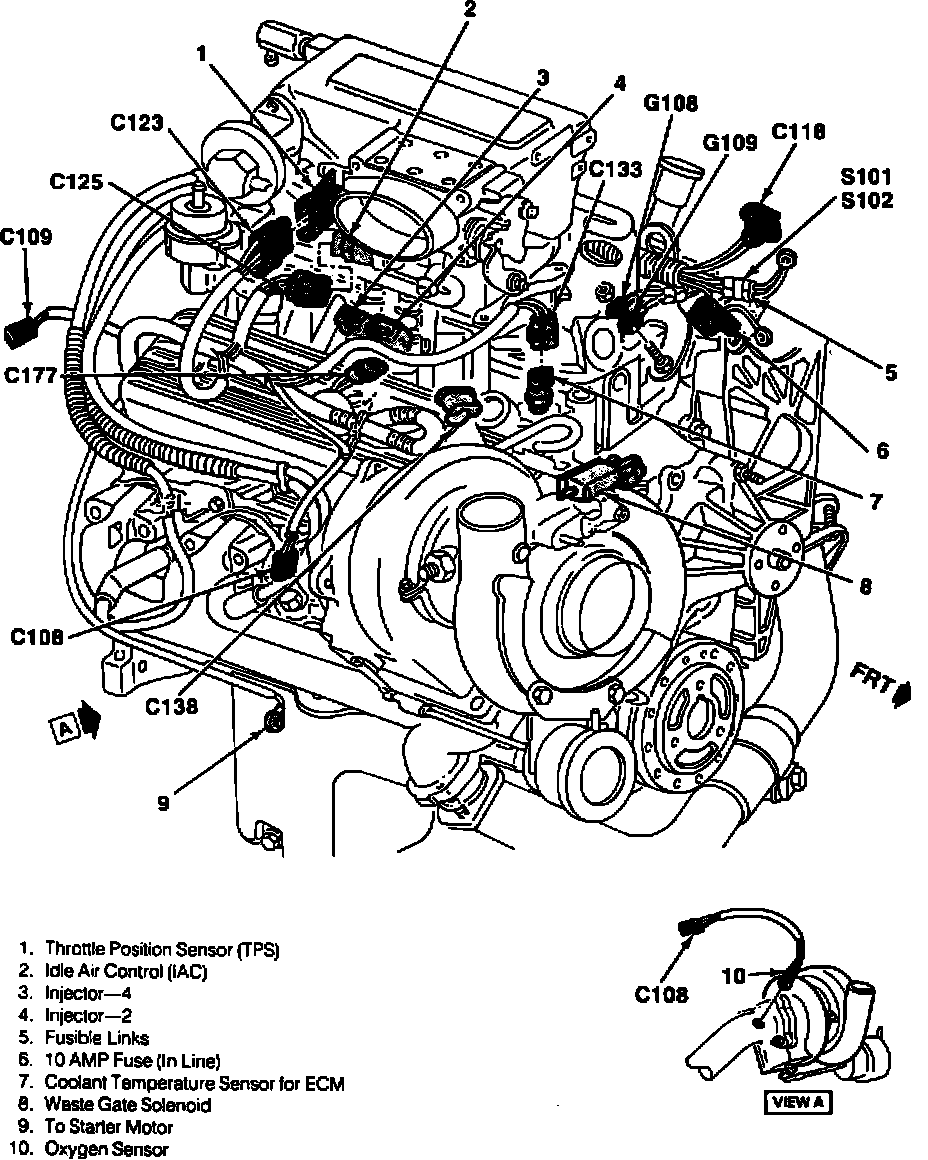

RH Front Side Of Engine.:
LH Front Of Engine
Applicable to: 4.3L/V6-262 Turbo Engine
