Control Assembly: Service and Repair

Control Assembly Replacement:

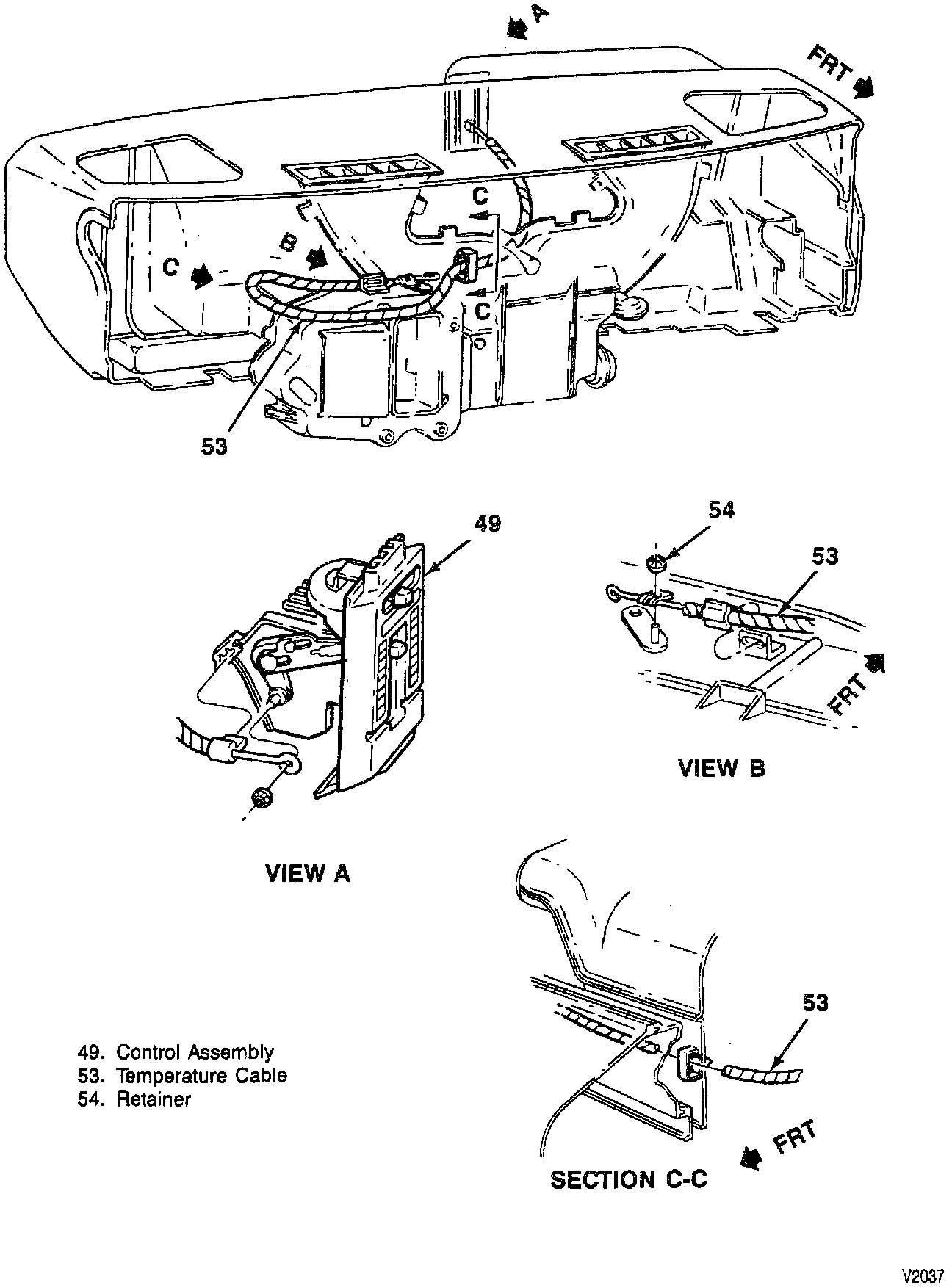

Temperature Control Cable:

REMOVE OR DISCONNECT

1. Screws (50).

- Pull control assembly away from Instrument panel.

2. Cable (53) from control assembly (49).

3. Vacuum connections from control assembly (49).

4. Electrical connections from control assembly (49).

5. Control assembly (49).

INSTALL OR CONNECT

1. Cables (53) to the control assembly (49).

2. Vacuum connections to the control assembly (49).

3. Electrical connections to the control assembly (49).

4. Control assembly (49).

5. Screws (50).
