Lower Components

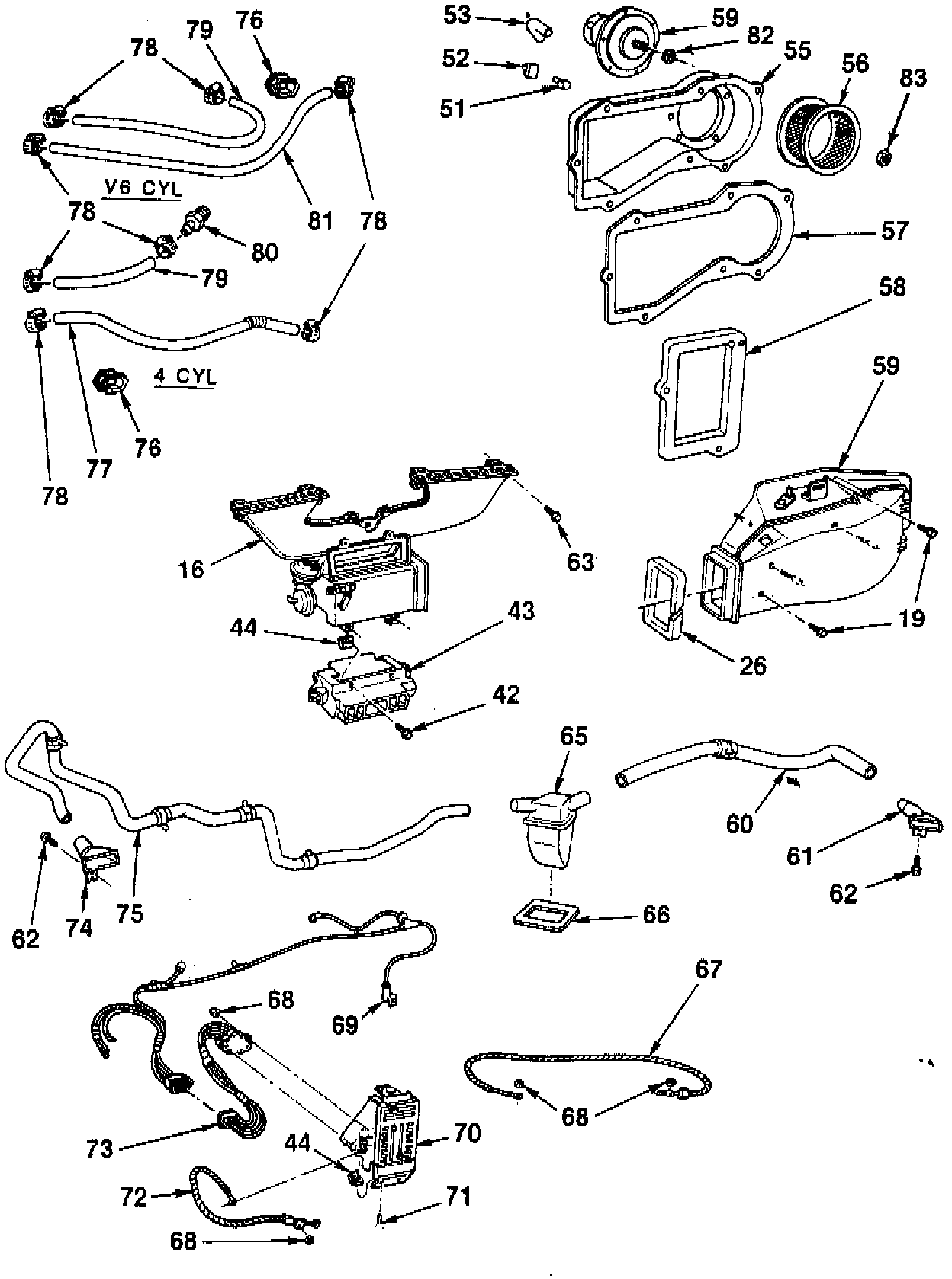

Air Distribution System Component View:

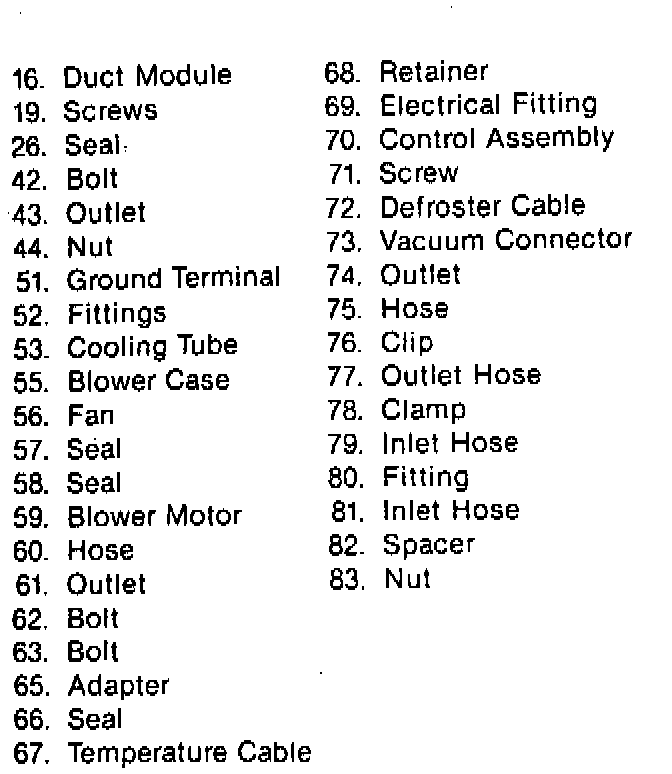

Air Distribution System Component View Legend:
