Control Module, A/T

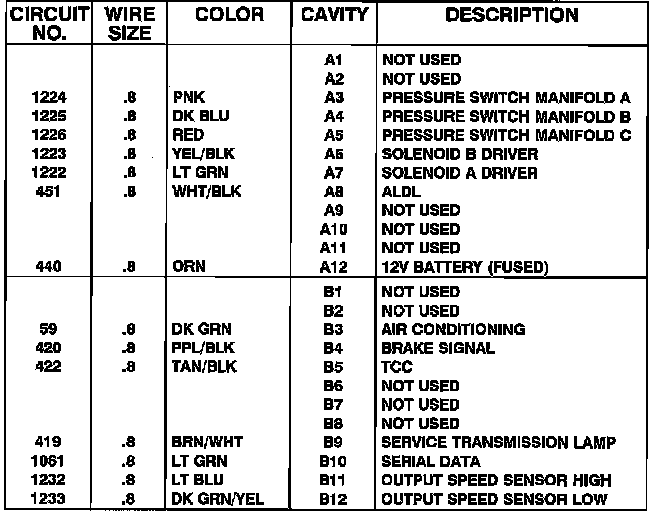

Transmission Control Module (TCM) Pinouts:

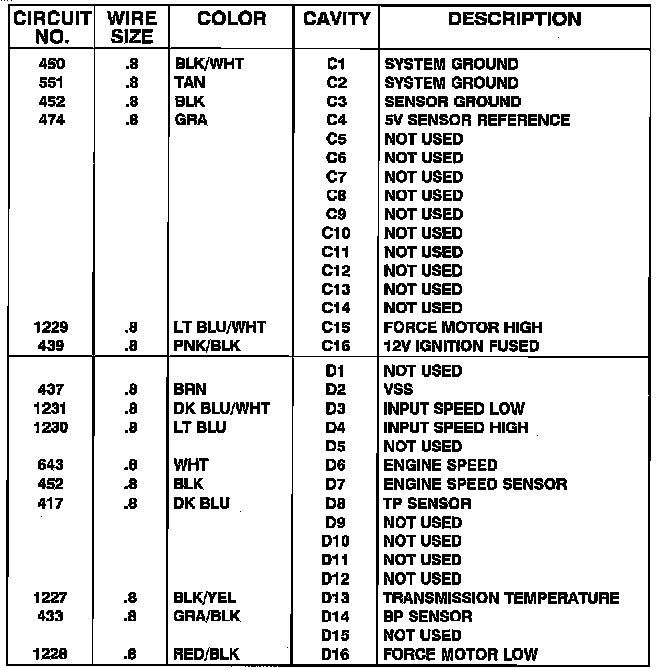

Transmission Control Module (TCM) Pinouts:
