Cruise Control Module

The cruise control module is mounted on the upper radiator support. The cruise control module has an electronic controller and an electronic stepper motor to vary the throttle with each different cruise control mode. The cruise control module is not serviceable. See Fig 1.

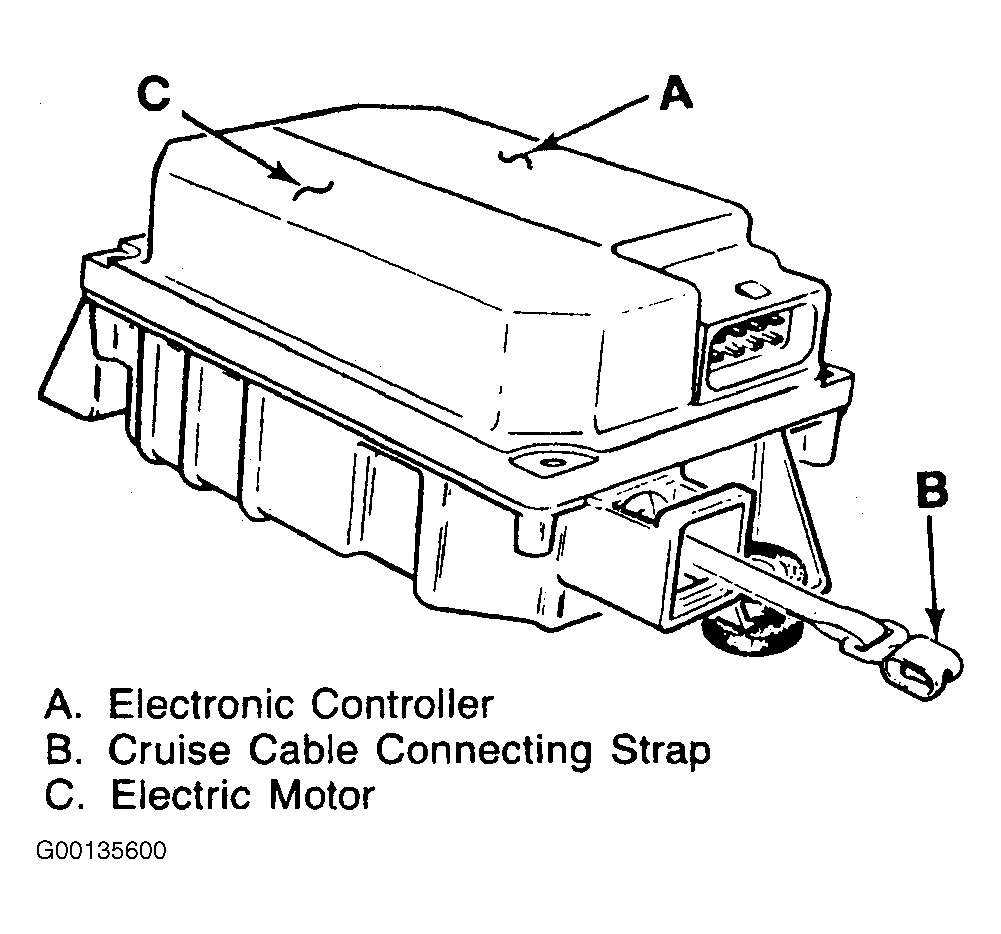

Fig 1: Identifying Cruise Control Module
G00135600Courtesy of GENERAL MOTORS CORP.
