Cruise Control Switch: Service and Repair

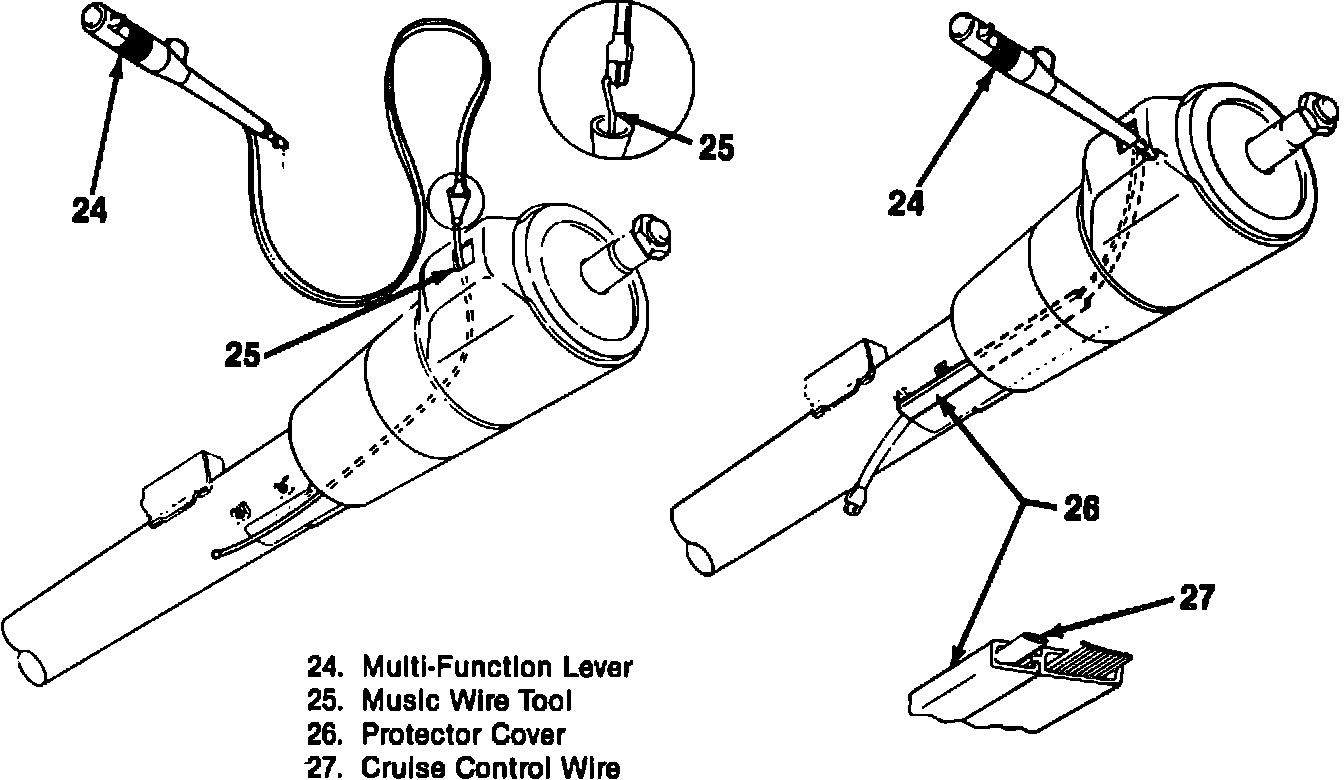

Fig. 14 Mode control switch replacement:

1. Disconnect battery ground cable.
2. Remove mode control switch protector cover, Fig. 14.
3. Disconnect switch electrical connector, then remove the switch and cruise control wire.
4. Reverse procedure to install.
