Electronic/Engine Control Module (ECM)

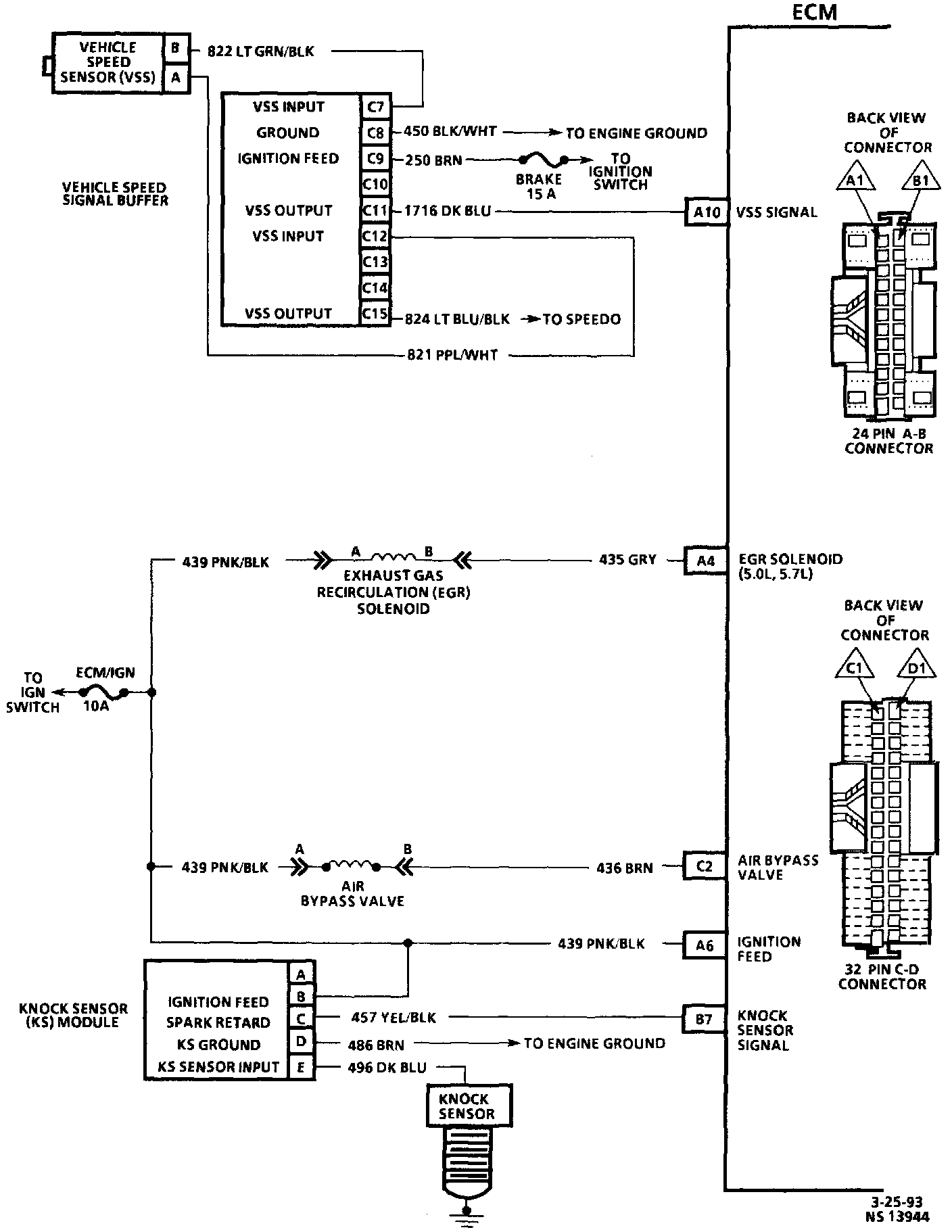

ECM Wiring Diagram (1 of 4):




1 of 4

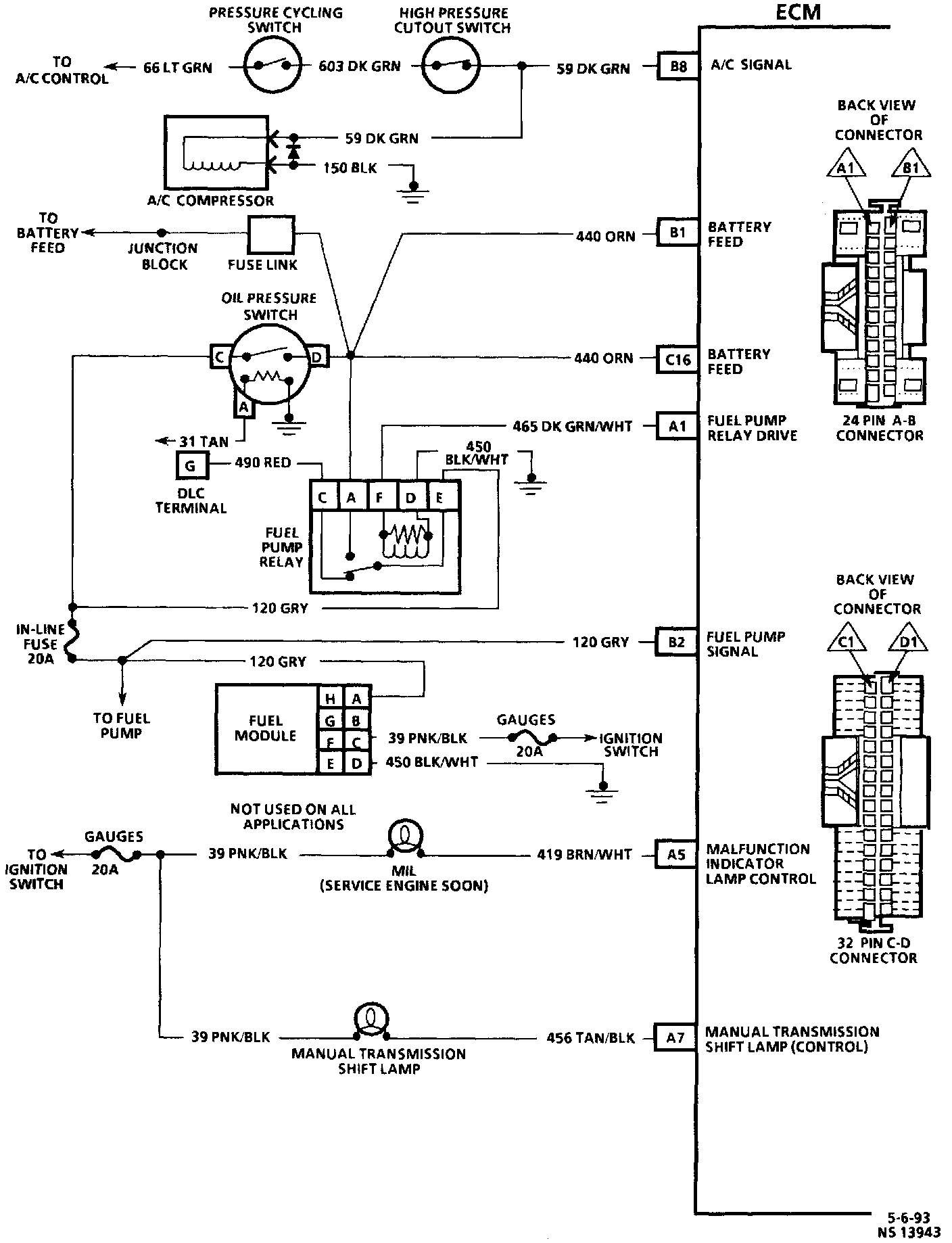

ECM Wiring Diagram (2 of 4):




2 of 4

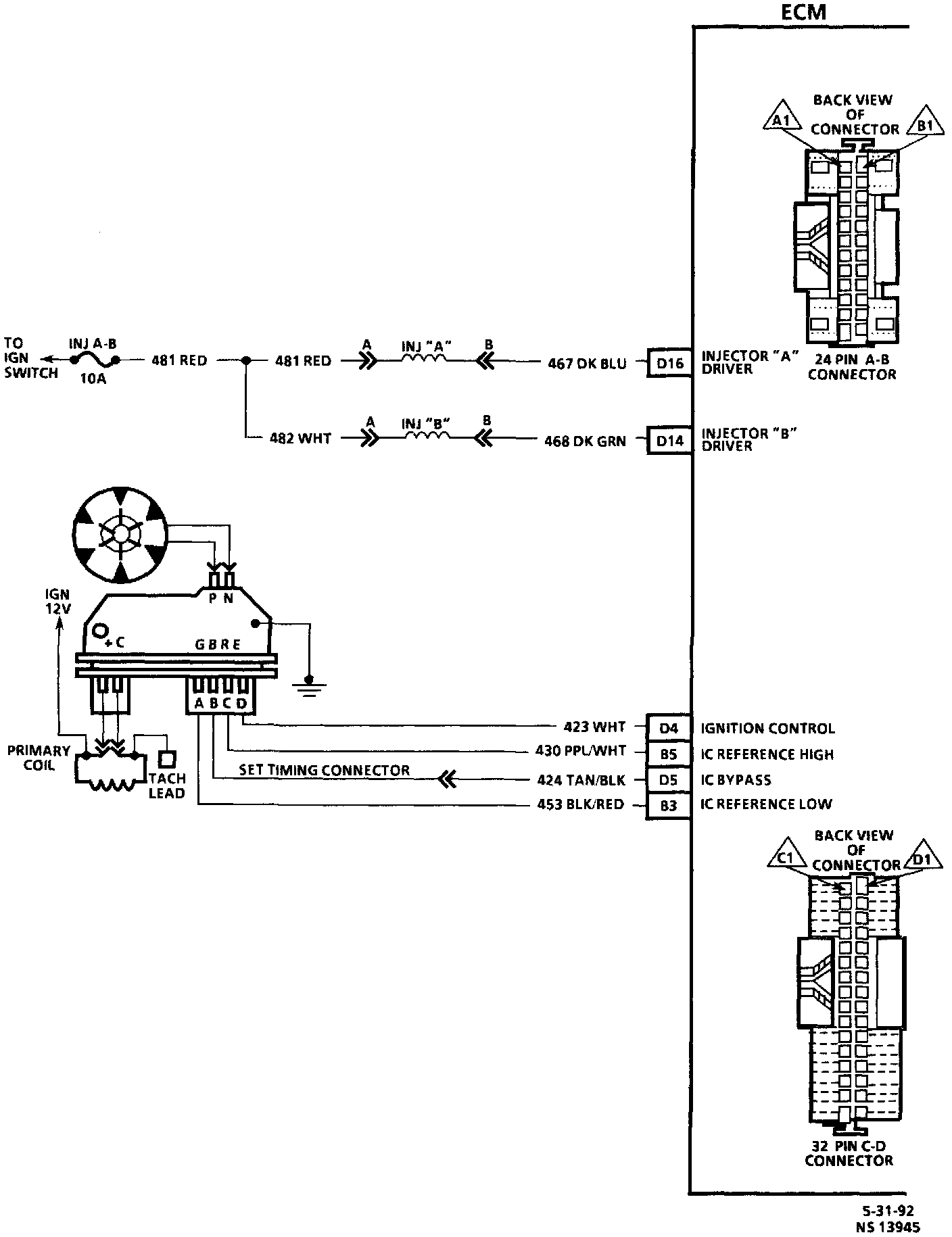

ECM Wiring Diagram (3 of 4):




3 of 4

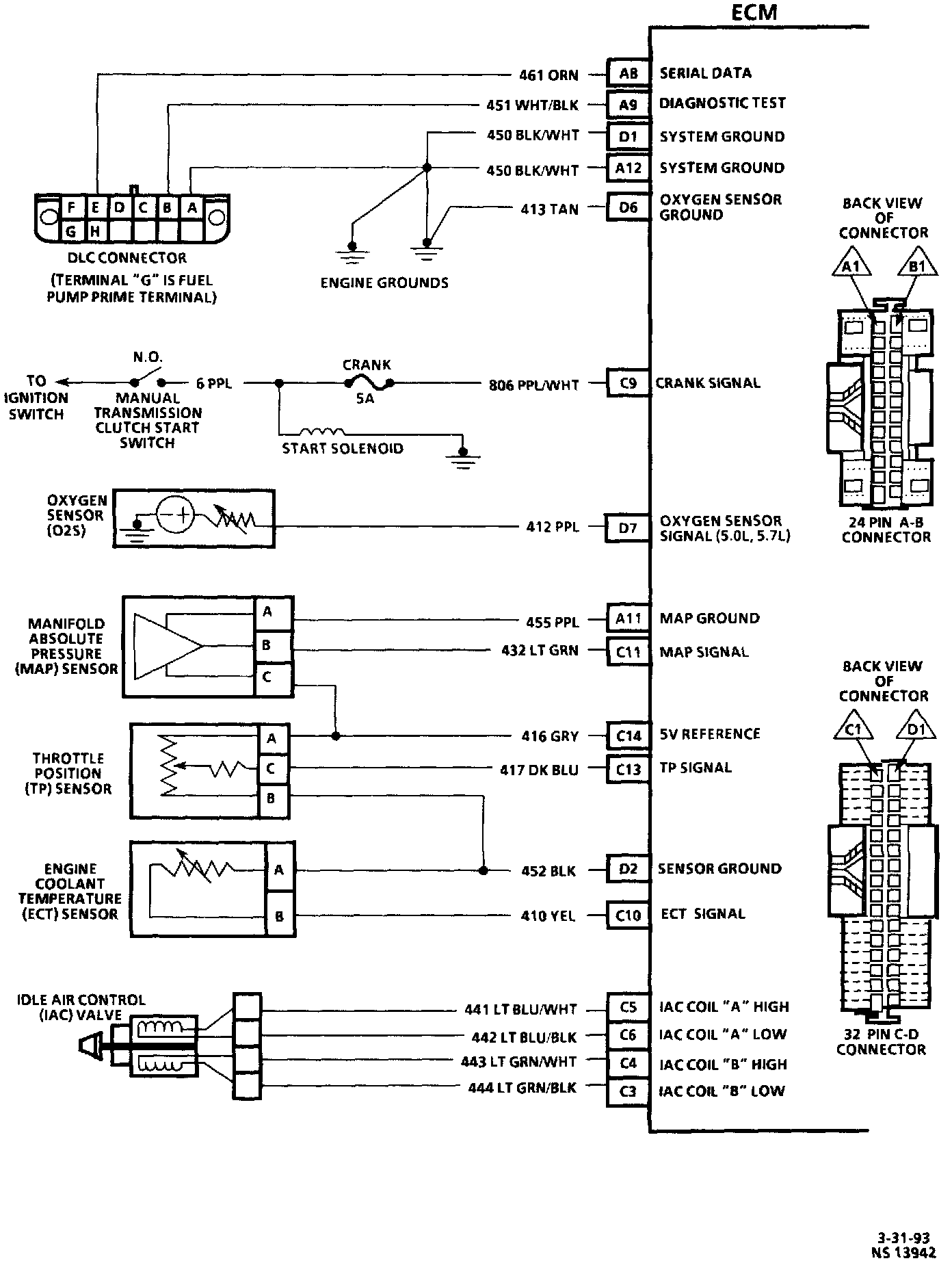

ECM Wiring Diagram (4 of 4):




4 of 4
