Pinout and Terminal ID with ECM

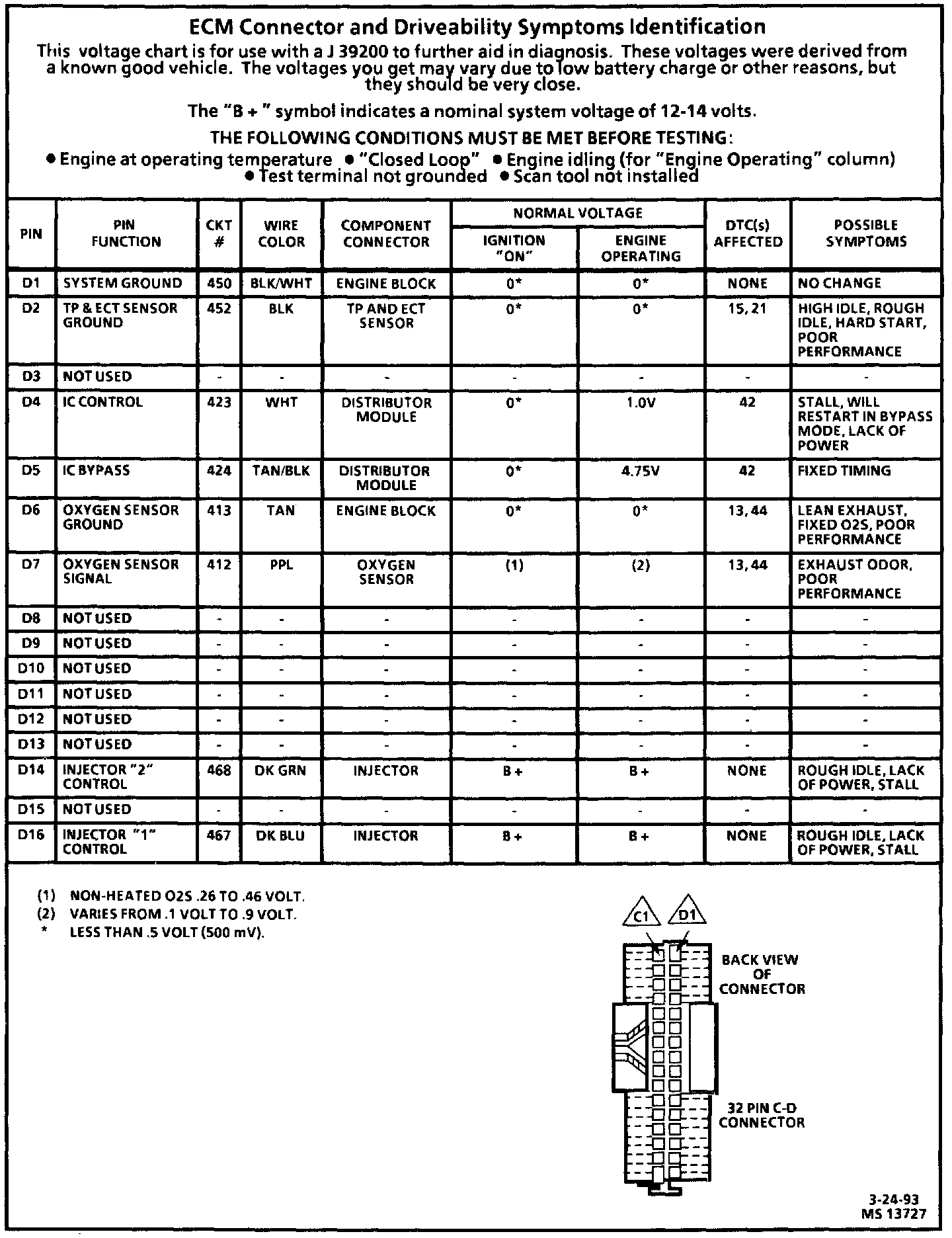

ECM Connector Terminal End View (1 of 4):




1 of 4

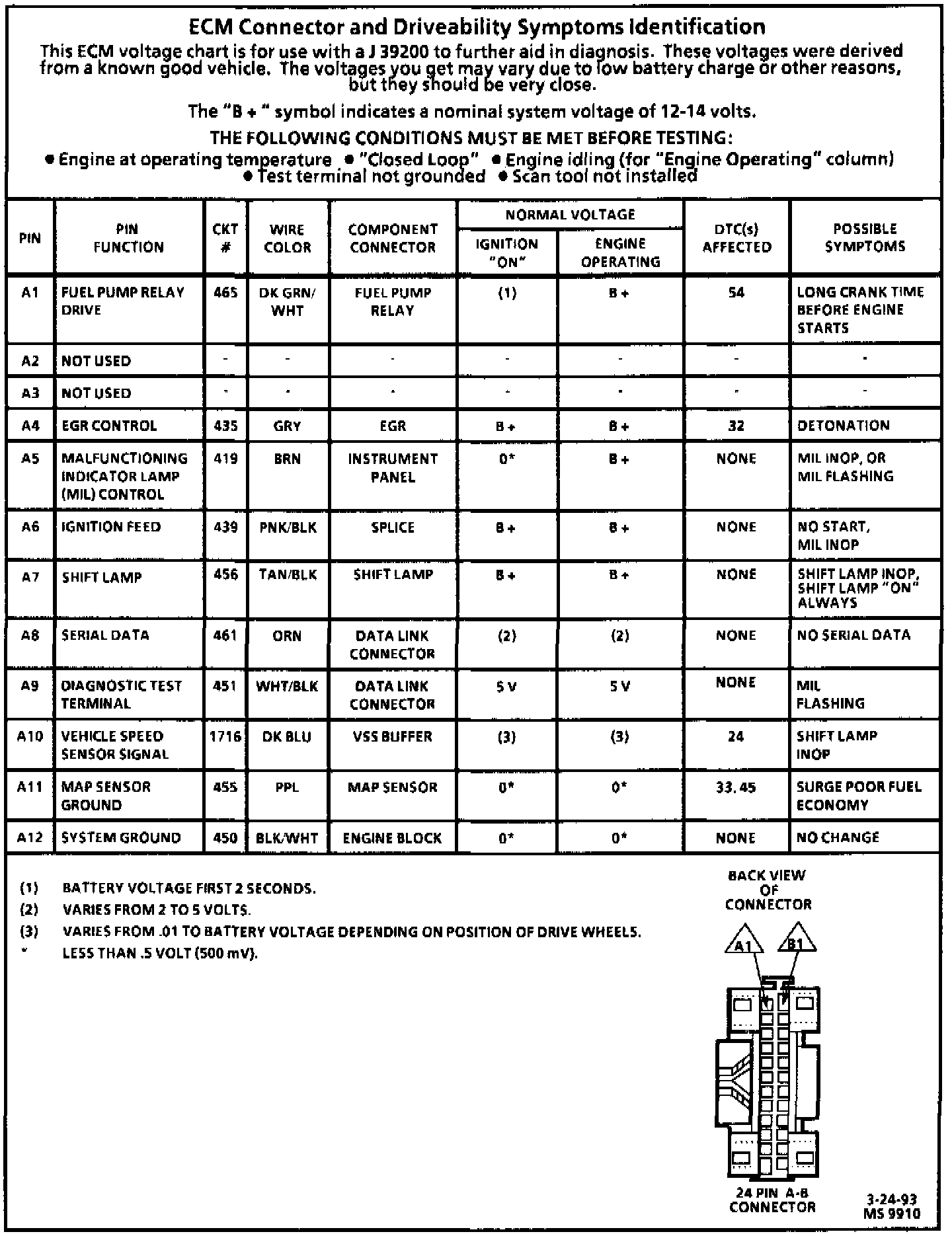

ECM Connector Terminal End View (2 of 4):




2 of 4

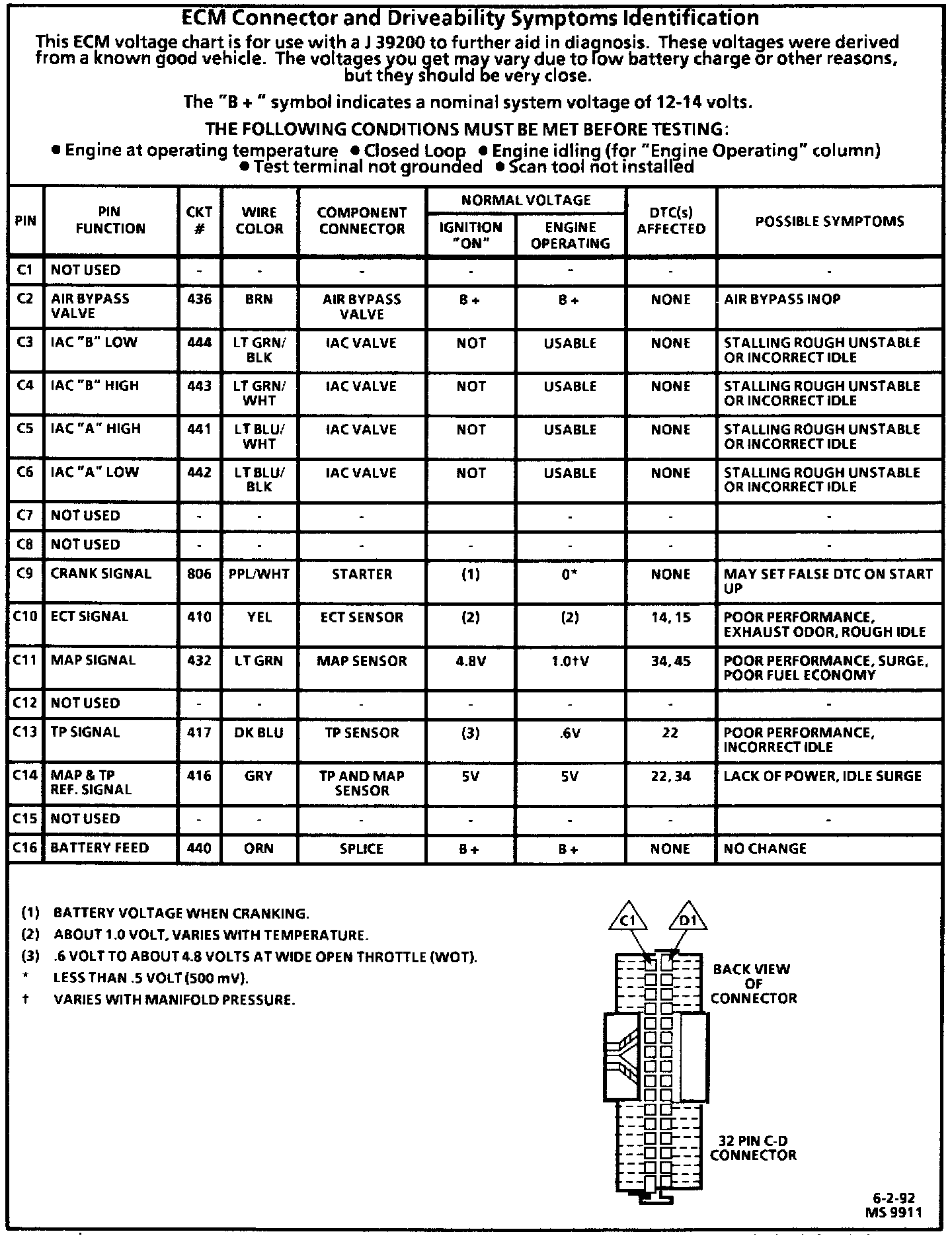

ECM Connector Terminal End View (3 of 4):




3 of 4

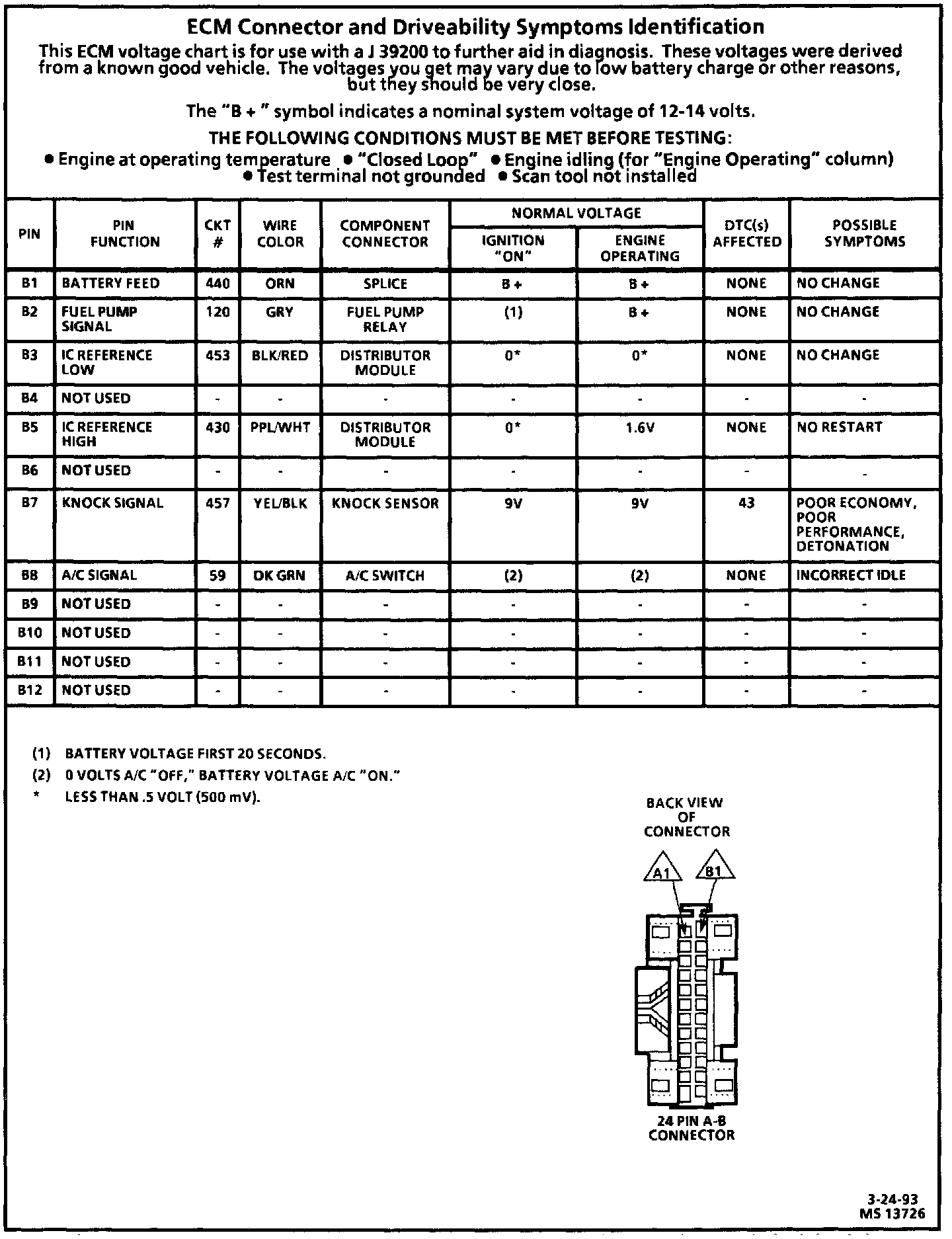

ECM Connector Terminal End View (4 of 4):




4 of 4
