ECM QDR Check Procedure - Without 4L80-E
ECM QDR Check Procedure:

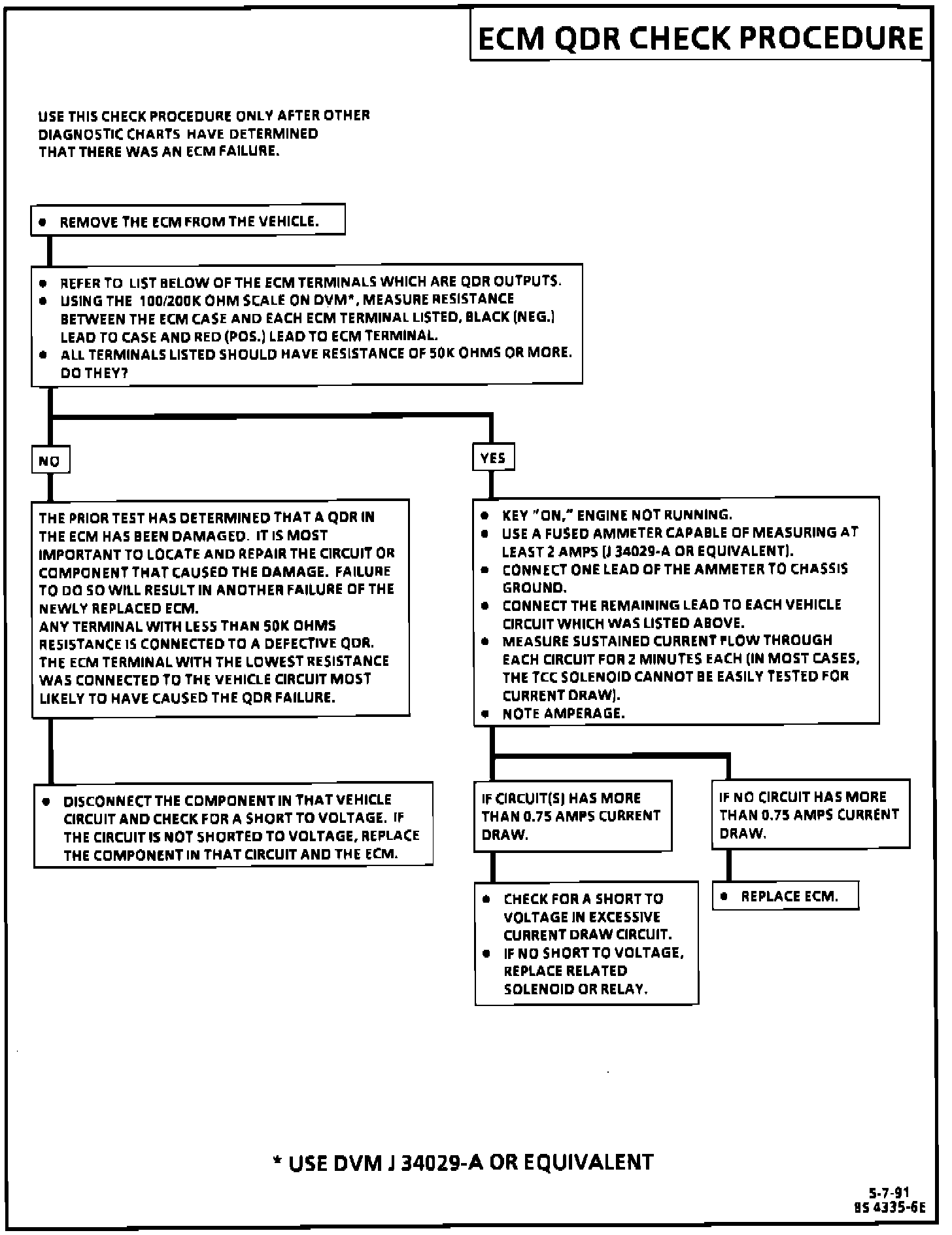

Diagnostic Chart
ECM QDR Check Procedure:
Circuit and ECM Output Terminal
