Removal & Installation (Mechanical)

Disconnect fuel lines from fuel pump. Remove mounting screws and remove fuel pump from block. To install, reverse removal procedure. Check for fuel leak at fuel line fittings.

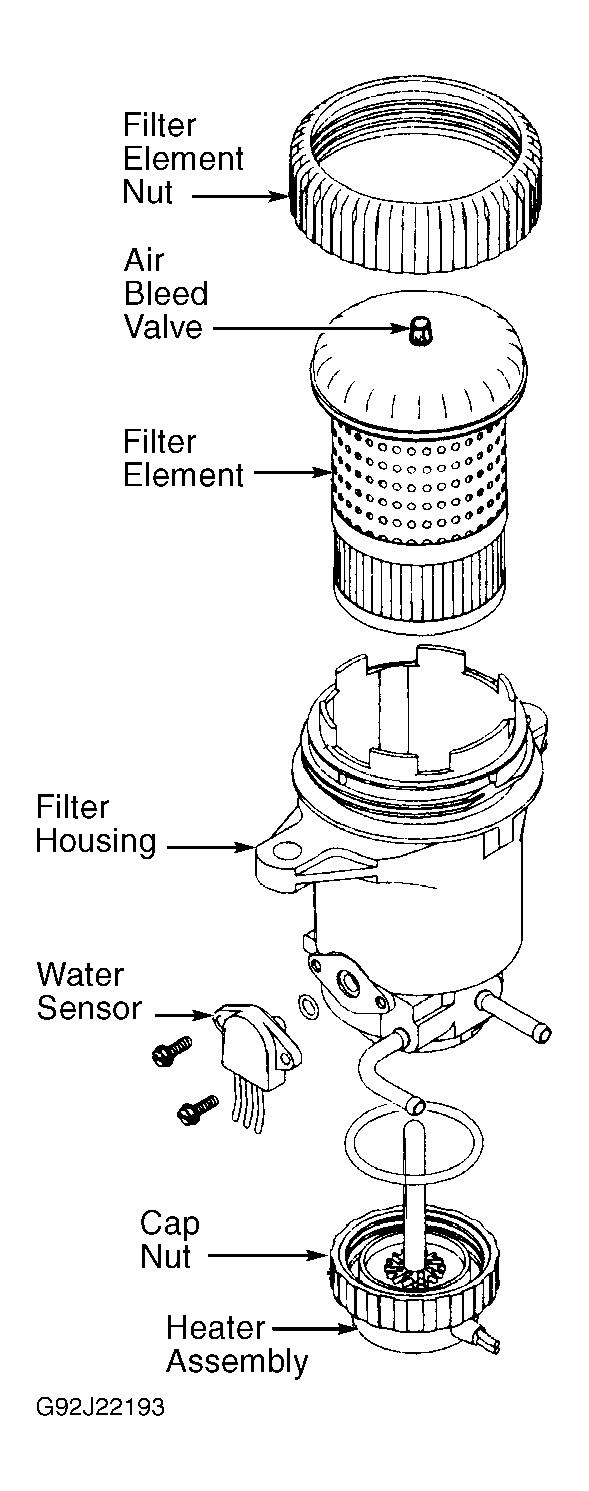

Fig 1: Diesel Fuel Manager/Filter Components
G92J22193Courtesy of GENERAL MOTORS CORP.
