Diagnostic Aids

When PCM is in backup fuel, fast idle and poor performance problems will exist. If DTC 18 is also stored, a problem with 5-volt reference circuit or sensor ground circuit may exist. If air is present in fuel system, DTC 17 may set.

Fig 1: DTC 17 Schematic (All Models) High Resolution Circuit Fault

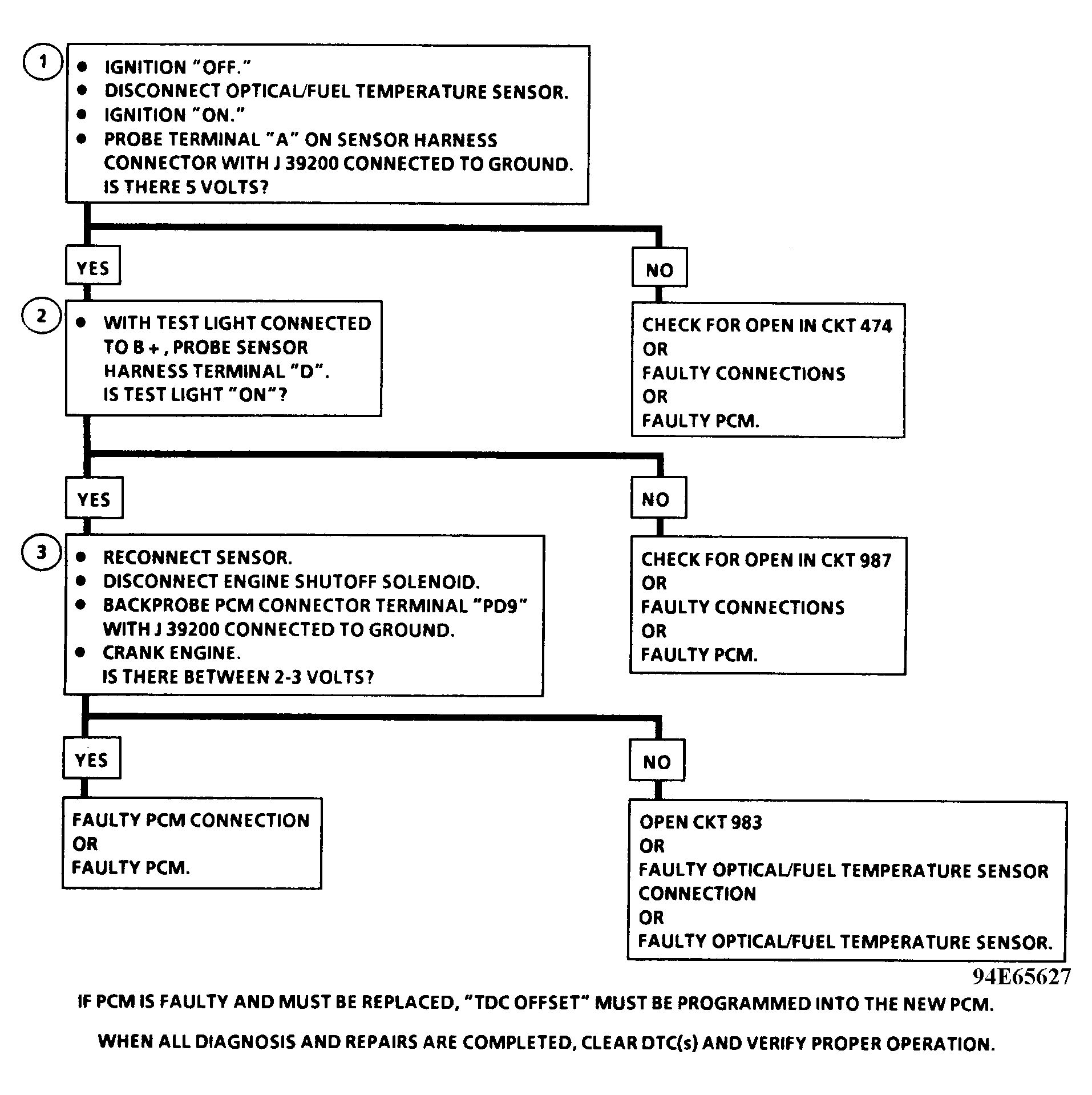

Fig 2: DTC 17 Flow Chart (All Models) High Resolution Circuit Fault
