Diagnostic Aids

Injection pulse width will fluctuate slightly when throttle is depressed.

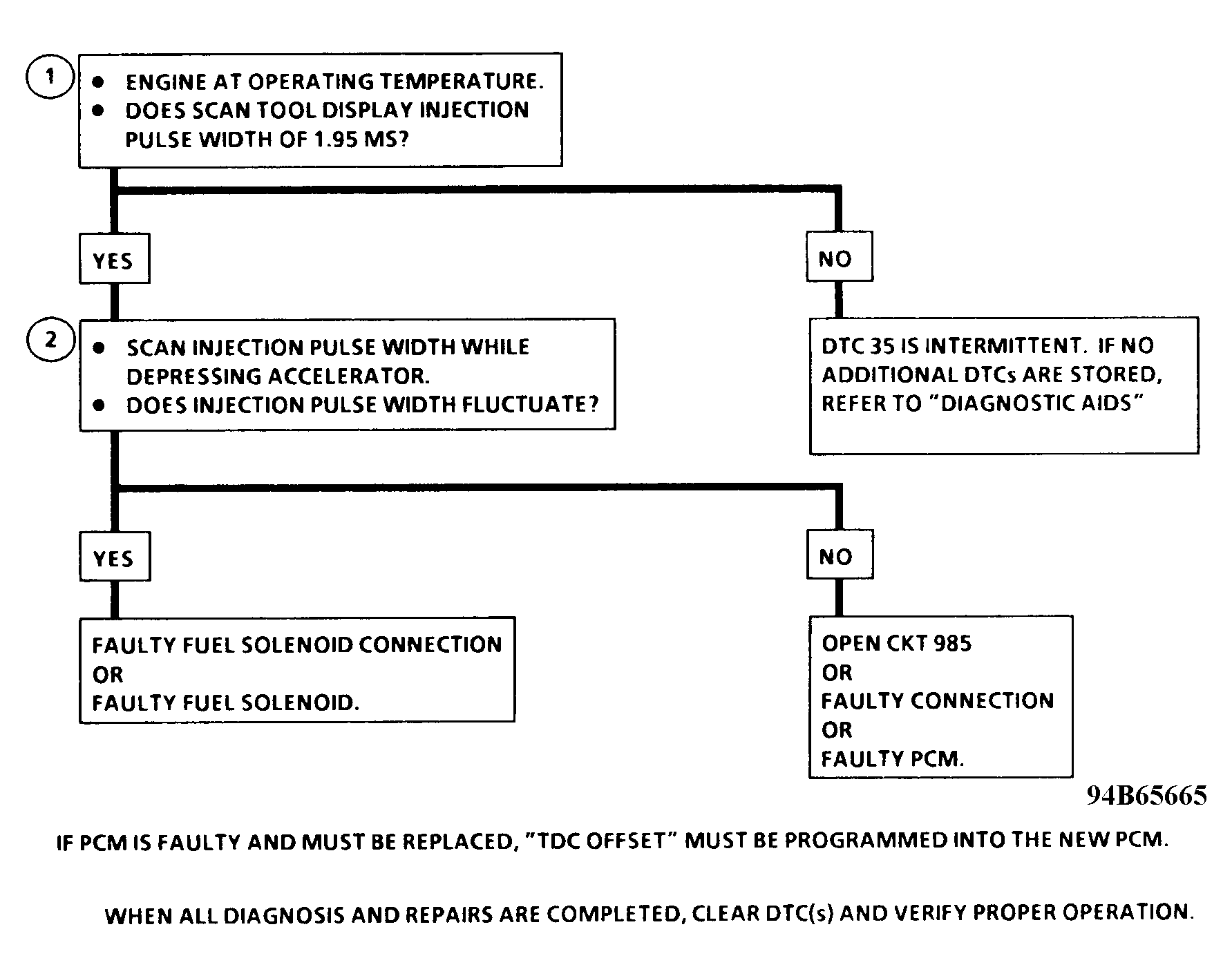

Fig 1: DTC 35 Schematic ("G" Series) Injection Pulse Width Error (Response Time Short)

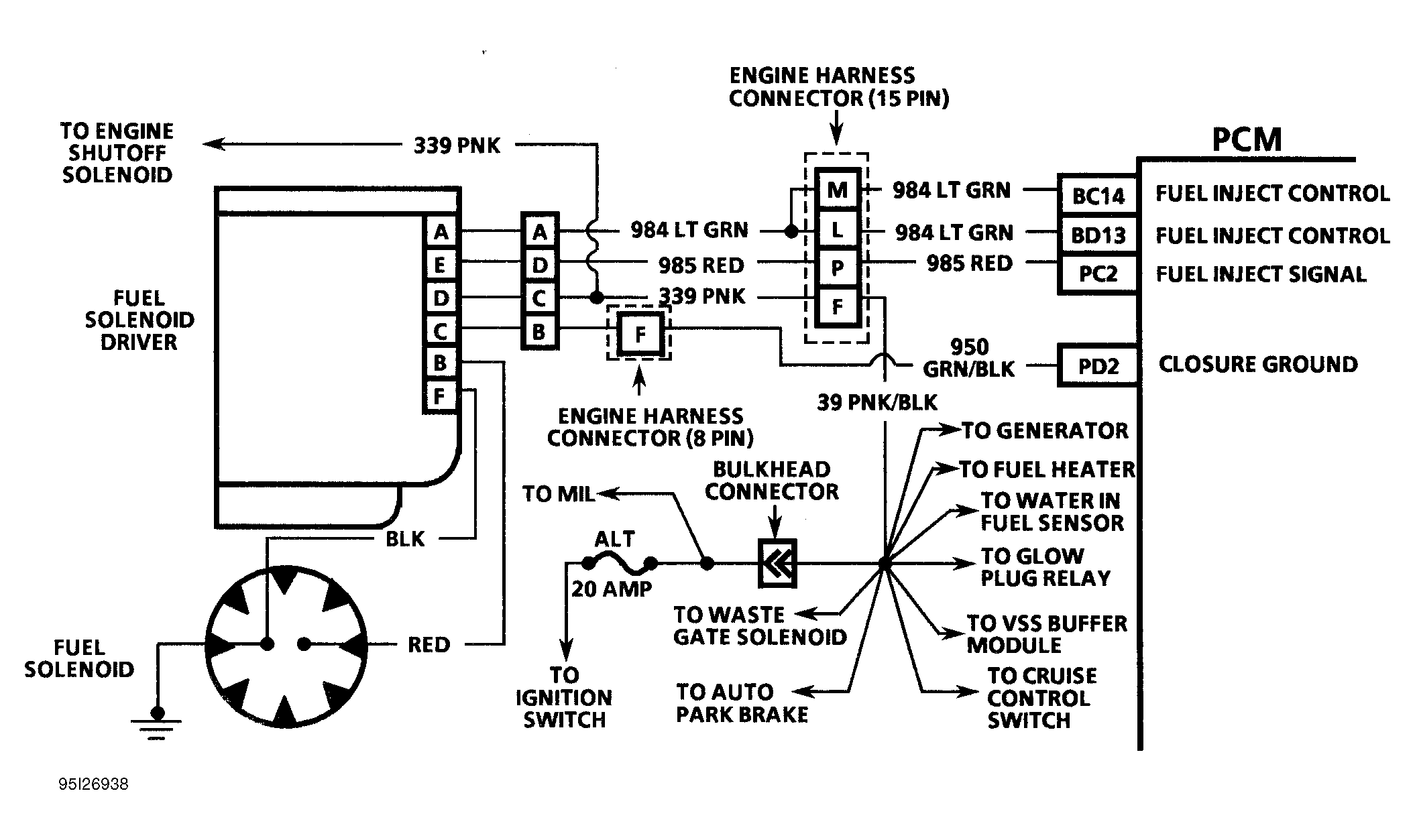

Fig 2: DTC 35 Schematic ("P" Series) Injection Pulse Width Error (Response Time Short)

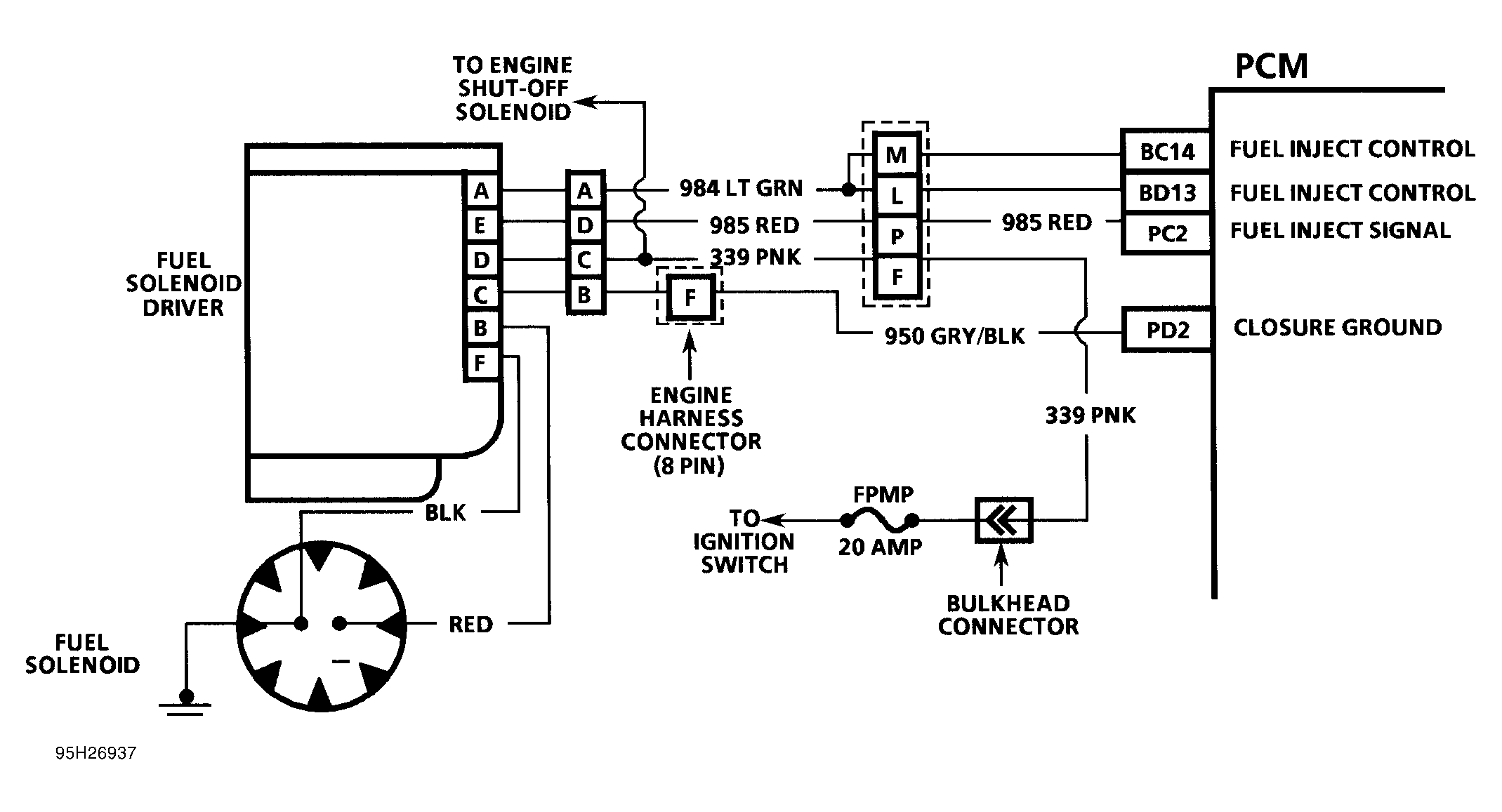

Fig 3: DTC 35 Schematic (All Models) Injection Pulse Width Error (Response Time Short)
