Disassembly (Fuel Meter Assembly Model 295)

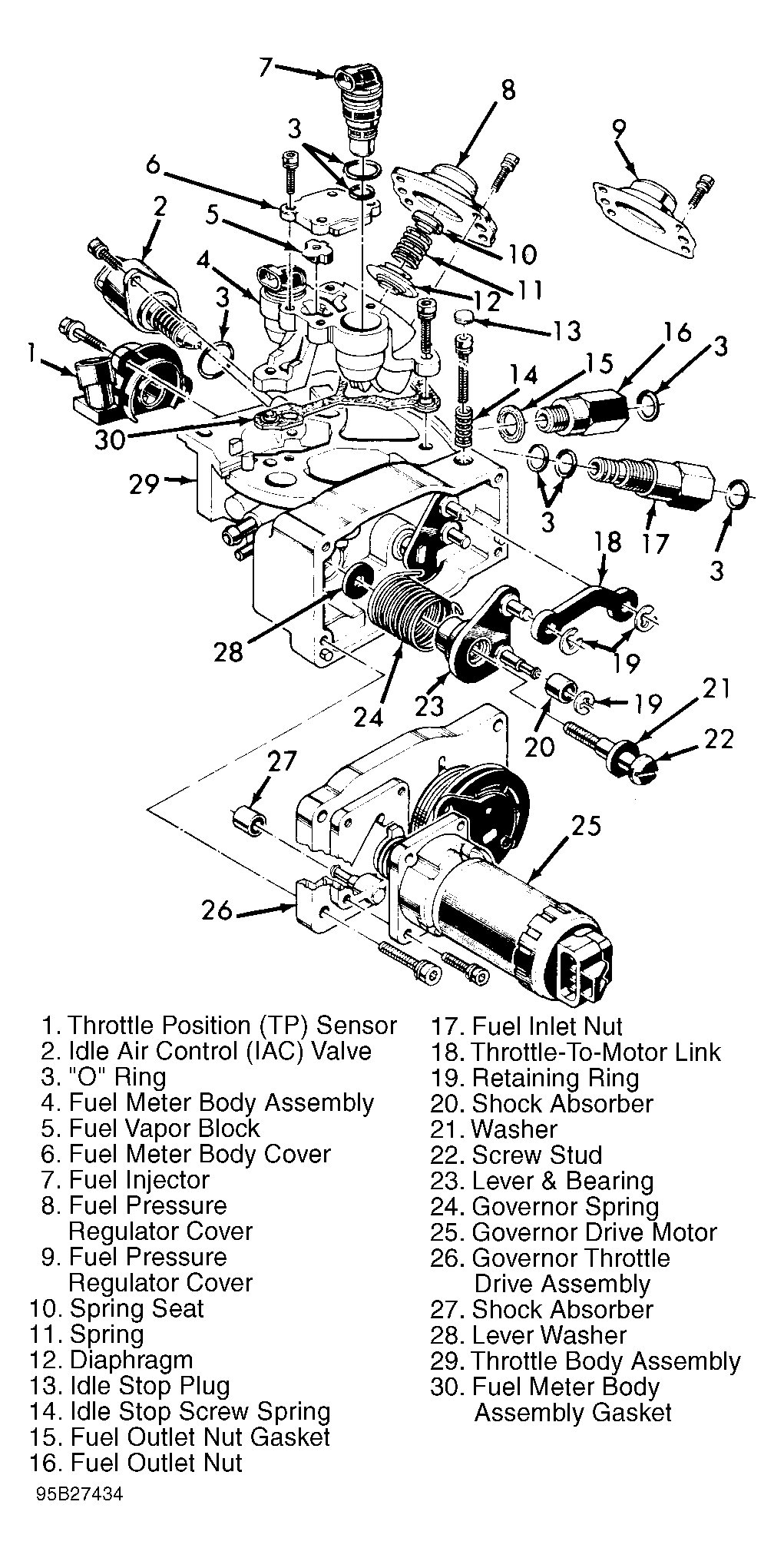

  1. Place throttle body on Holding Fixture (J-9789-118 or BT-30-15) to prevent damage to throttle valve. Remove fuel meter body cover screws and remove fuel meter body cover. See Figure. If fuel pres sure regulator cover is removed, regulator diaphragm must be replaced to prevent fuel leaks.
  2. Remove fuel injectors. Note location of fuel inlet and outlet nuts and remove. Discard gaskets and "O" rings. Remove fuel meter body assembly-to-throttle body screws. See Figure. Remove fuel meter body assembly. Remove and discard fuel meter body assembly gasket.
  3. Remove TP sensor, IAC valve, fuel pressure regulator, governor drive motor and governor throttle drive assembly, lever and bearing assembly, rubber components, gaskets and diaphragms. Clean all remaining (metal) parts in a cold immersion-type cleaner such as Carbon X (X-55). Blow dry with compressed air. Inspect mating surfaces for damage which may prevent gasket sealing. Repair or replace faulty components.
