Remote Transmitter

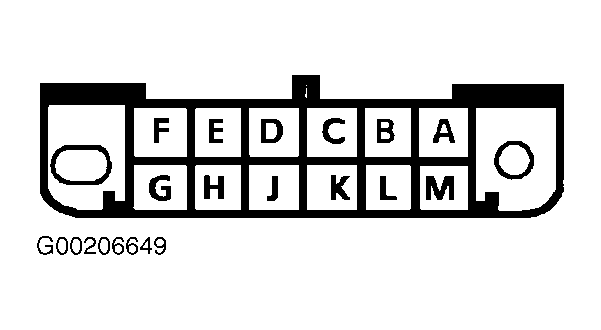

- Ground pin "G" of the Data Link Connector (DLC). The receiver will respond by locking and unlocking doors within 2 seconds. See Fig 1
.
Courtesy of GENERAL MOTORS CORP.
- Press any button of the first transmitter to be programmed.
- The control module will respond by locking/unlocking doors and activating rear window release.
- Press any button of the second transmitter to be programmed (if used).
- The control module will respond by locking/unlocking doors and activating the rear window release.
- Remove the ground applied to the reprogramming connector.
- Transmitter operation is verified by locking and unlocking the doors and activating the rear window release.
