Control Module: Removal

  1. Remove the left hand instrument panel sound insulator.
  2. Disconnect the electrical connectors. See Fig 1
  3. Remove the control module retainers. See Fig 1
  4. Remove the control module. See Fig 1 .
  5. To install, reverse removal procedures.

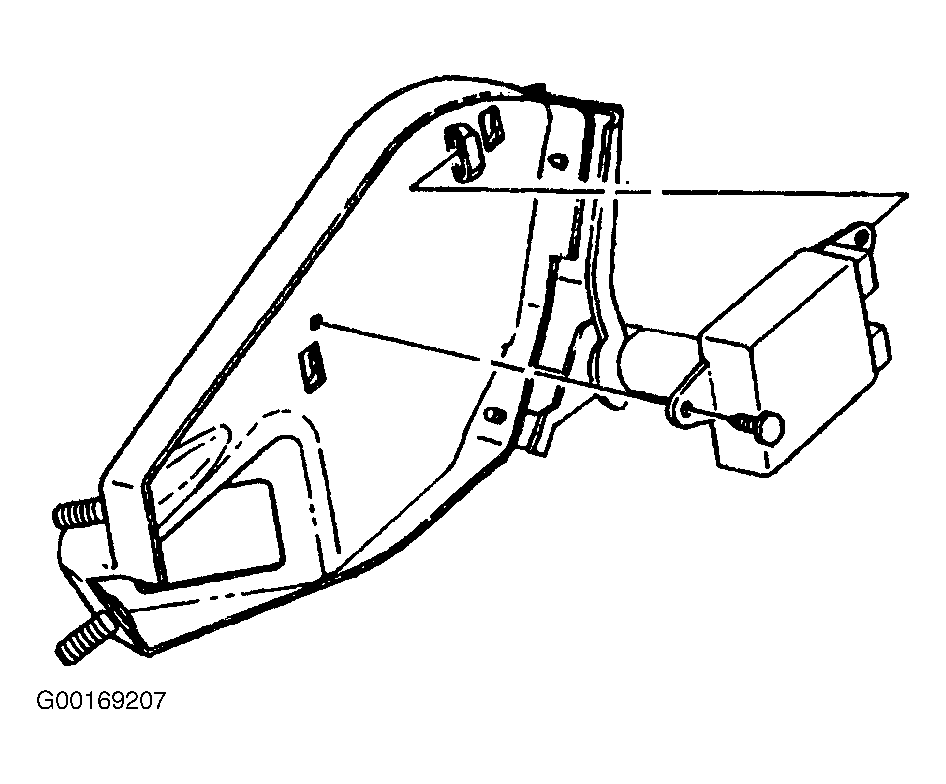

Fig 1: Removing & Installing Remote Keyless Entry Control Module
G00169207Courtesy of GENERAL MOTORS CORP.
