SPS/EEPROM Programming Chart (53-65-05)

Publication date: 1995-09-19
Reference number: 53-65-05

EXPERTEC TSB

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 53-65-05, Date of Issue:  09/19/95

CHART TO ASSIST TECHNICIAN - WITH SPS/EEPROM

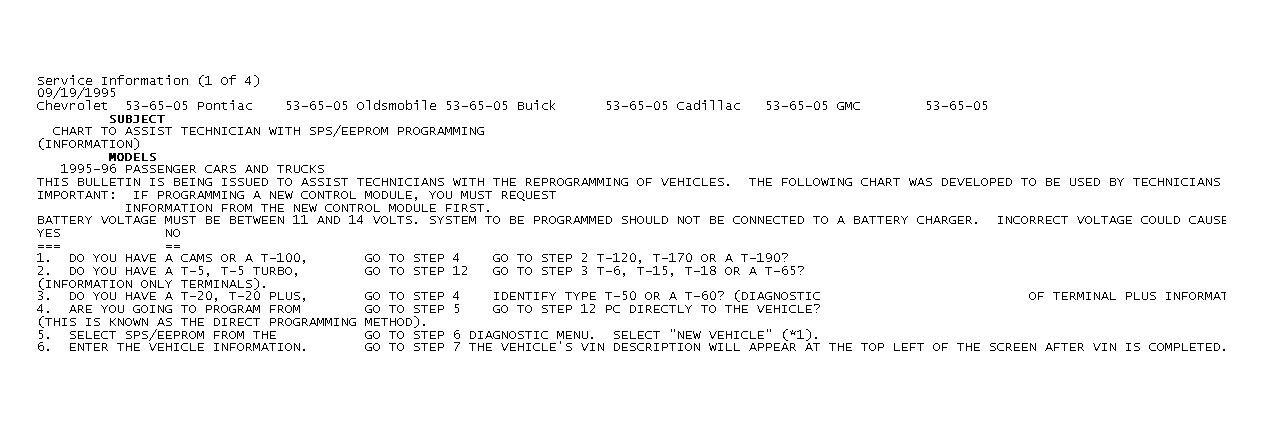

Fig 1: Service Information (1 Of 4)
GB0042436

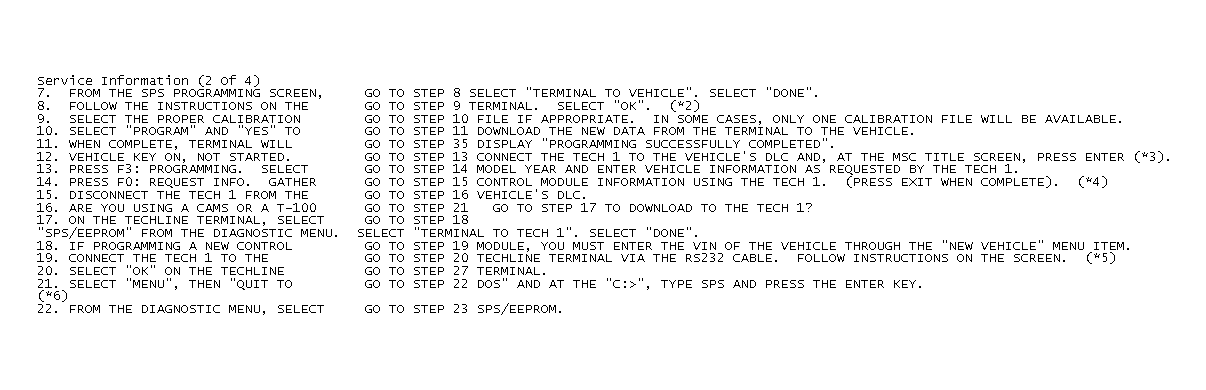

Fig 2: Service Information (2 Of 4)
GB0042437

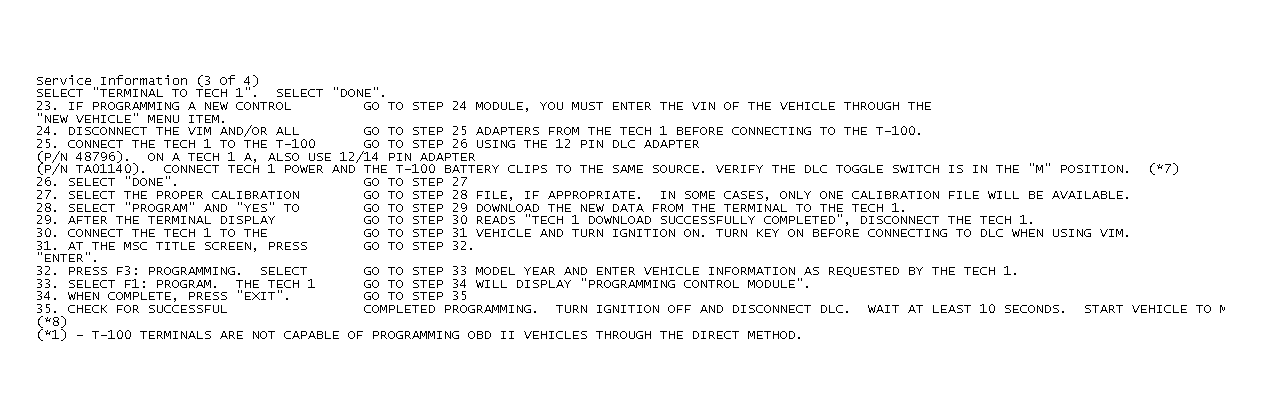

Fig 3: Service Information (3 Of 4)
GB0042438

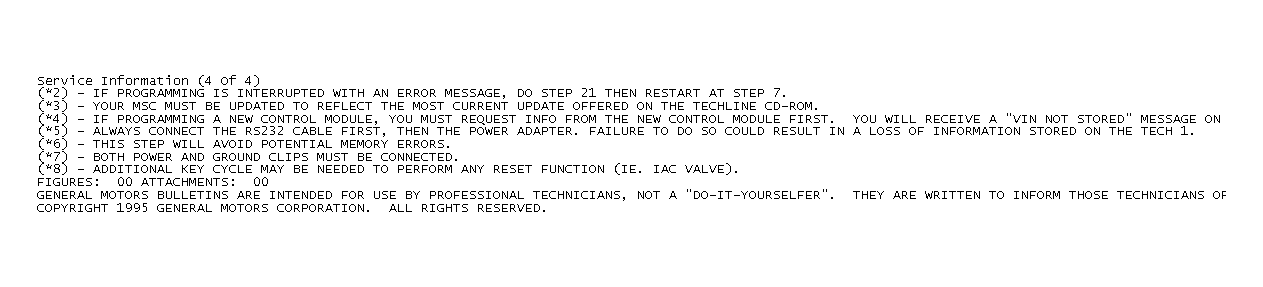

Fig 4: Service Information (4 Of 4)
GB0042439
