Tach Pulse (RPM Reference) Signal

WARNING: This page is about a different car, the 1995 Pontiac Trans Sport, 1995 Oldsmobile Silhouette, and 1995 Chevrolet Lumina APV. However, it is still accessible from the selected car via links, so may be relevant.

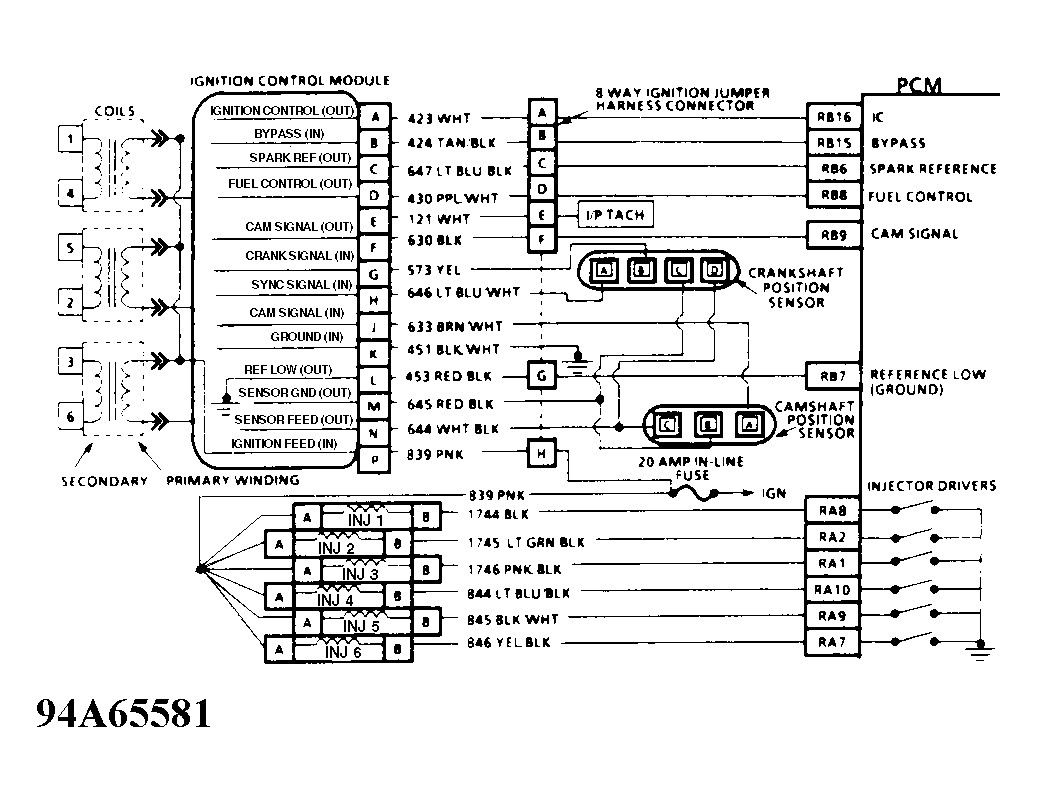

Connect scan tester to DLC. RPM should be indicated on tester when engine is cranked or running. Tach pulse (RPM reference) will be indicated as a voltage signal when a DVOM connected to battery voltage is used to backprobe circuit No. 430, PCM terminal. See Figure .
