Diagnostic Aids

A hard start and possible poor performance may exist. Actual injection time will freeze at point of fault. DTC could set if injection timing is not correctly set. See ADJUSTMENTS article.

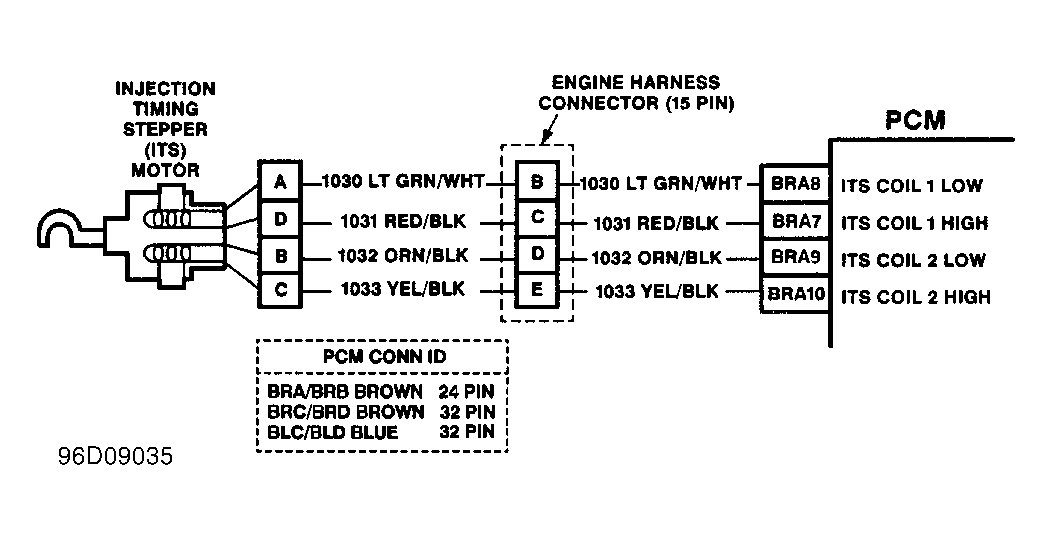

Fig 1: DTC P0216 Schematic
G96D09035
