Component Locations

WARNING: This page is about a different car, the 1995 GMC Sonoma and 1995 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

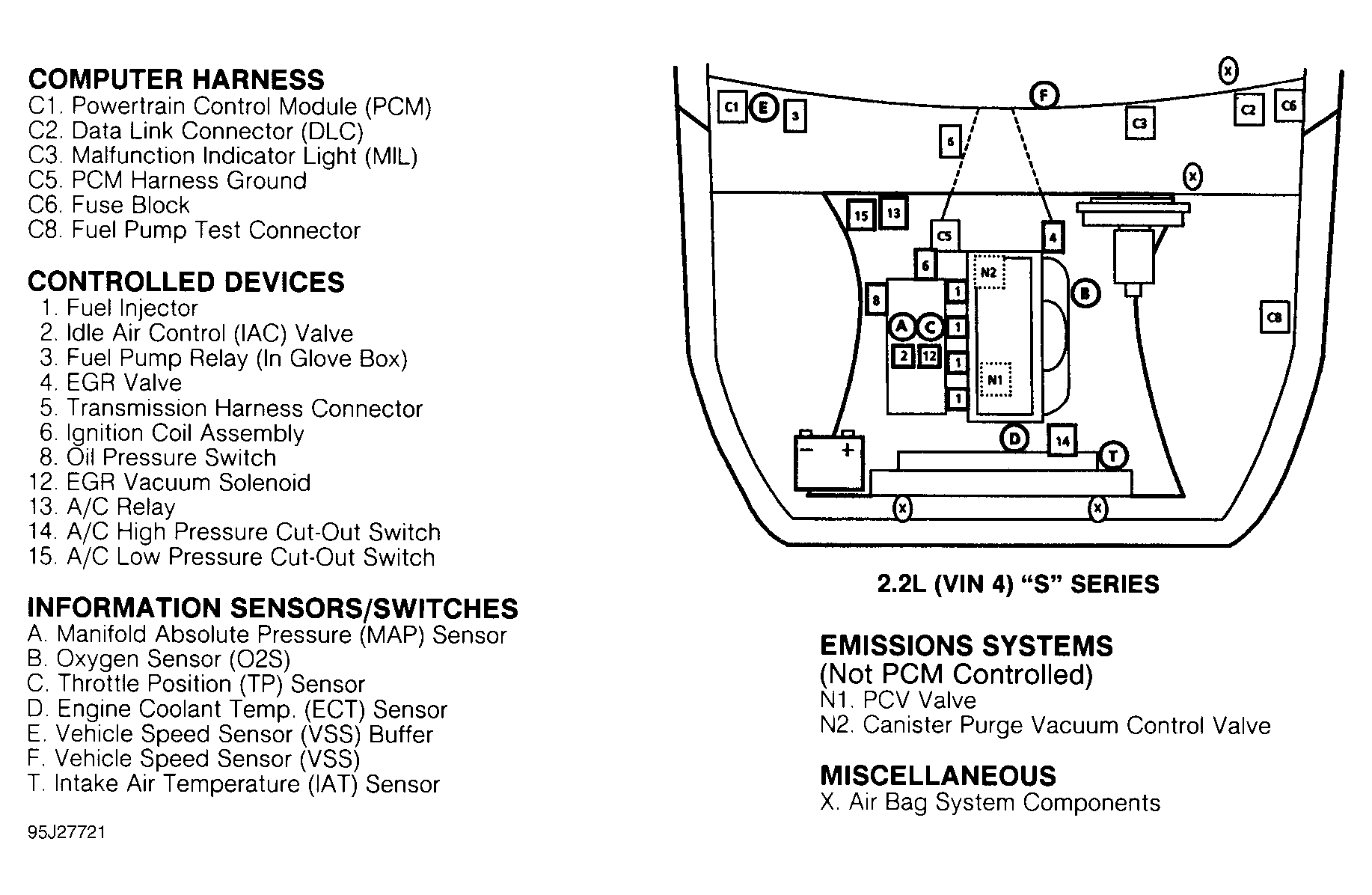

Fig 1: Component Location For 2.2L (VIN 4)
G95J27721Courtesy of GENERAL MOTORS CORP.
