VCM Connectors: C3

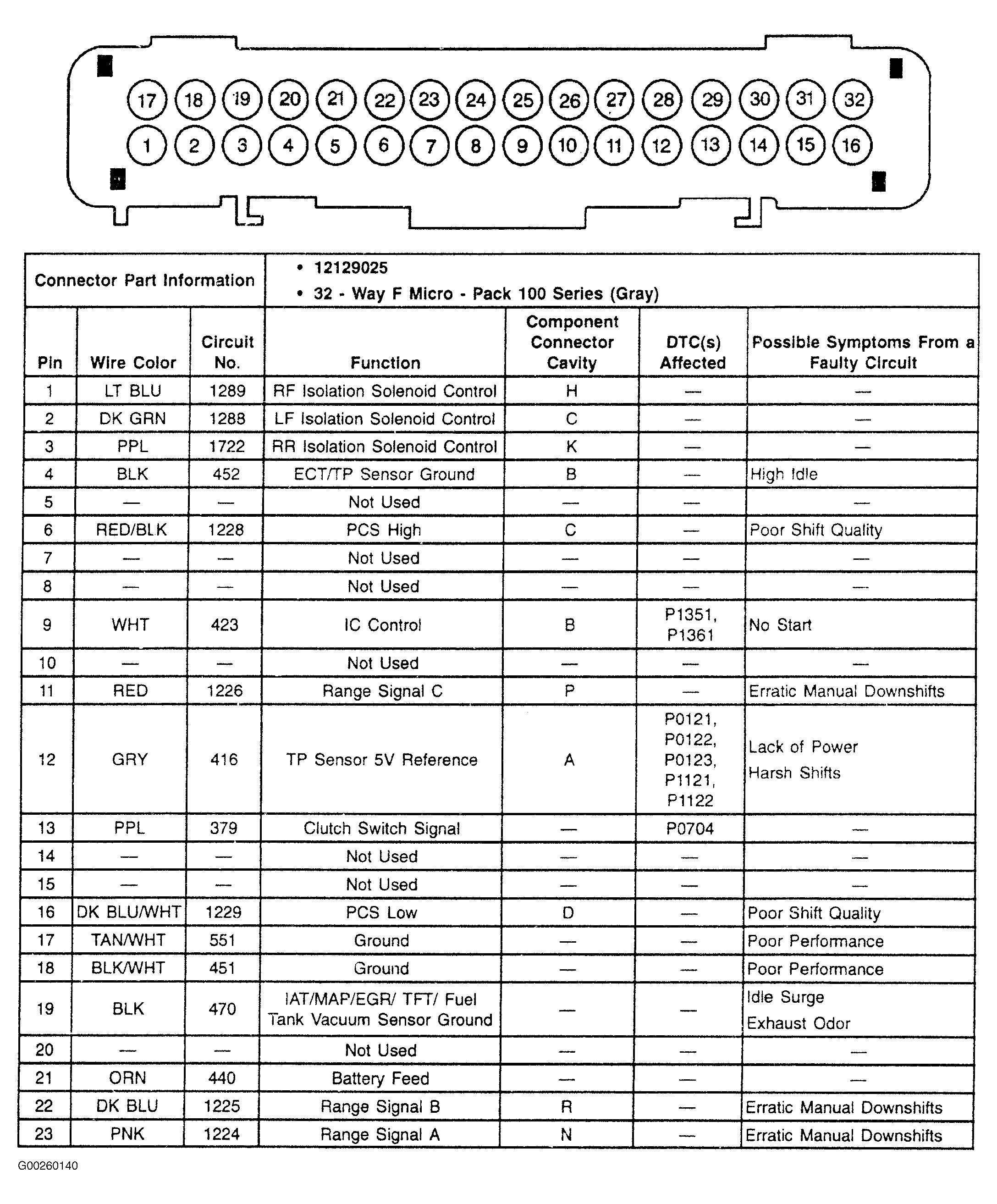

Fig 1: Identifying VCM 32-Pin Connector C3 (Gray - 1 Of 2)
G00260140Courtesy of GENERAL MOTORS CORP.

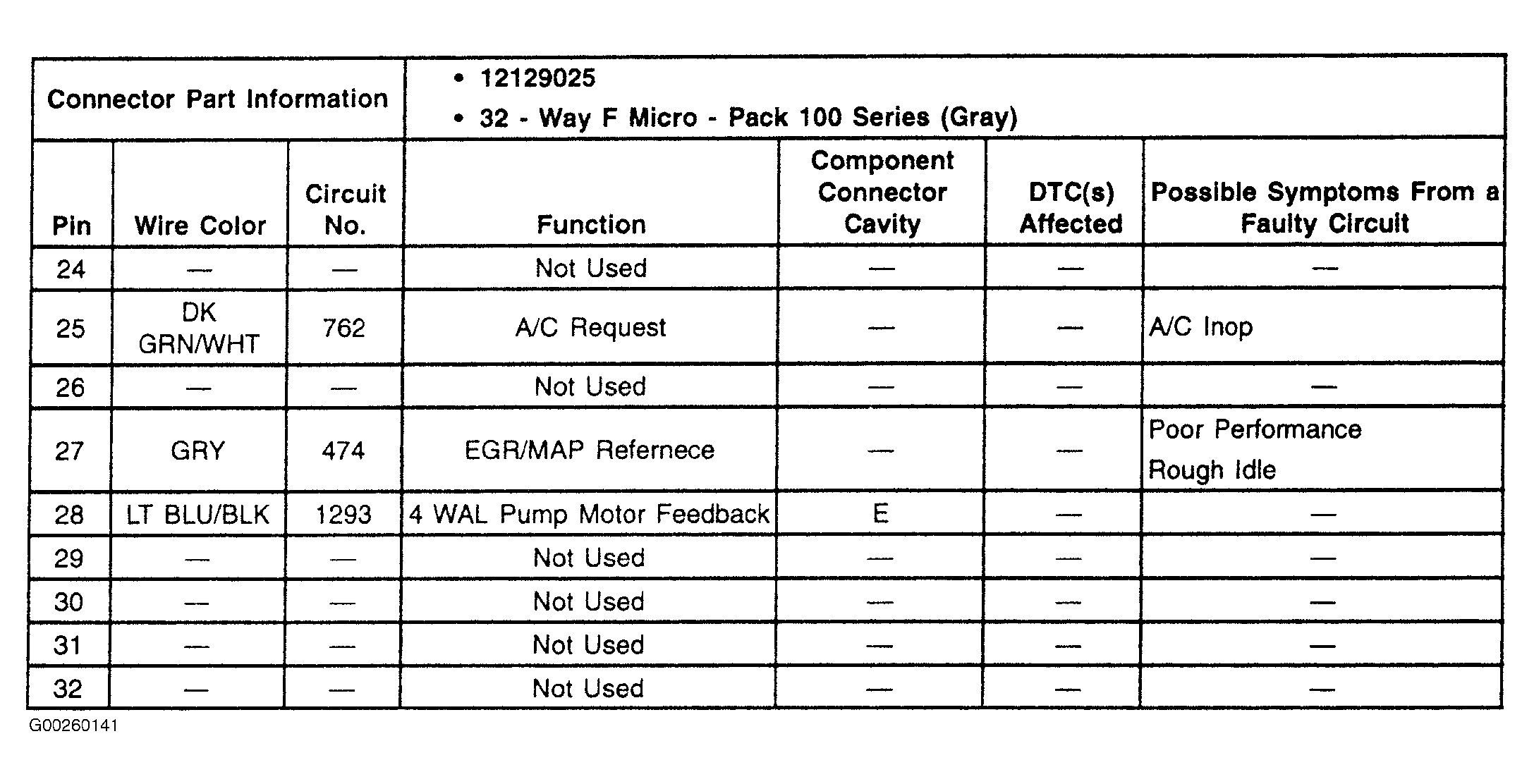

Fig 2: Identifying VCM 32-Pin Connector C3 (Gray - 2 Of 2)
G00260141Courtesy of GENERAL MOTORS CORP.
