Transfer Case Shift Control Module

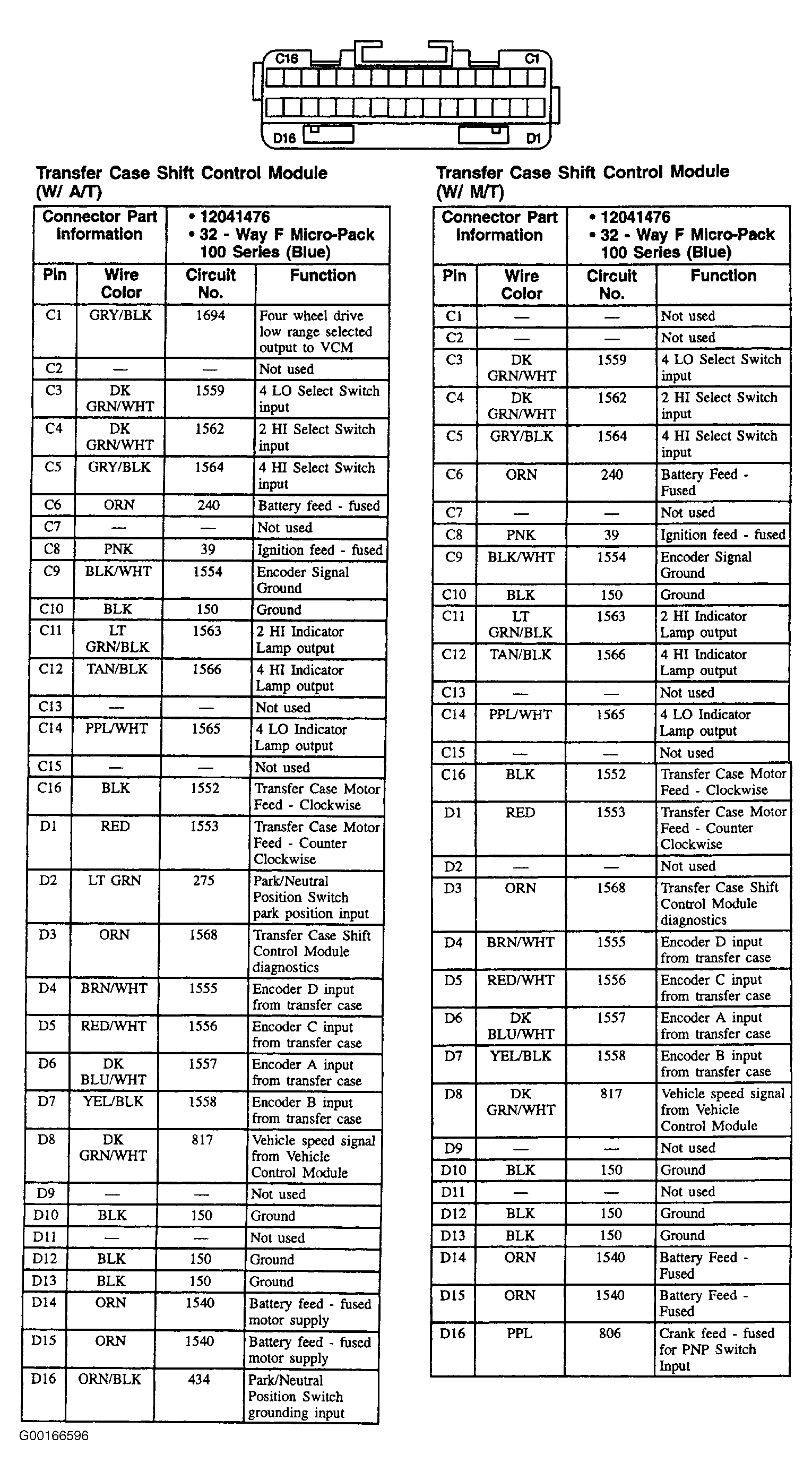

Fig 1: Transfer Case Shift Control Module - 32-Pin Connector, Blue
G00166596Courtesy of GENERAL MOTORS CORP.
