Engine Fuel Sender Module (4.3L)

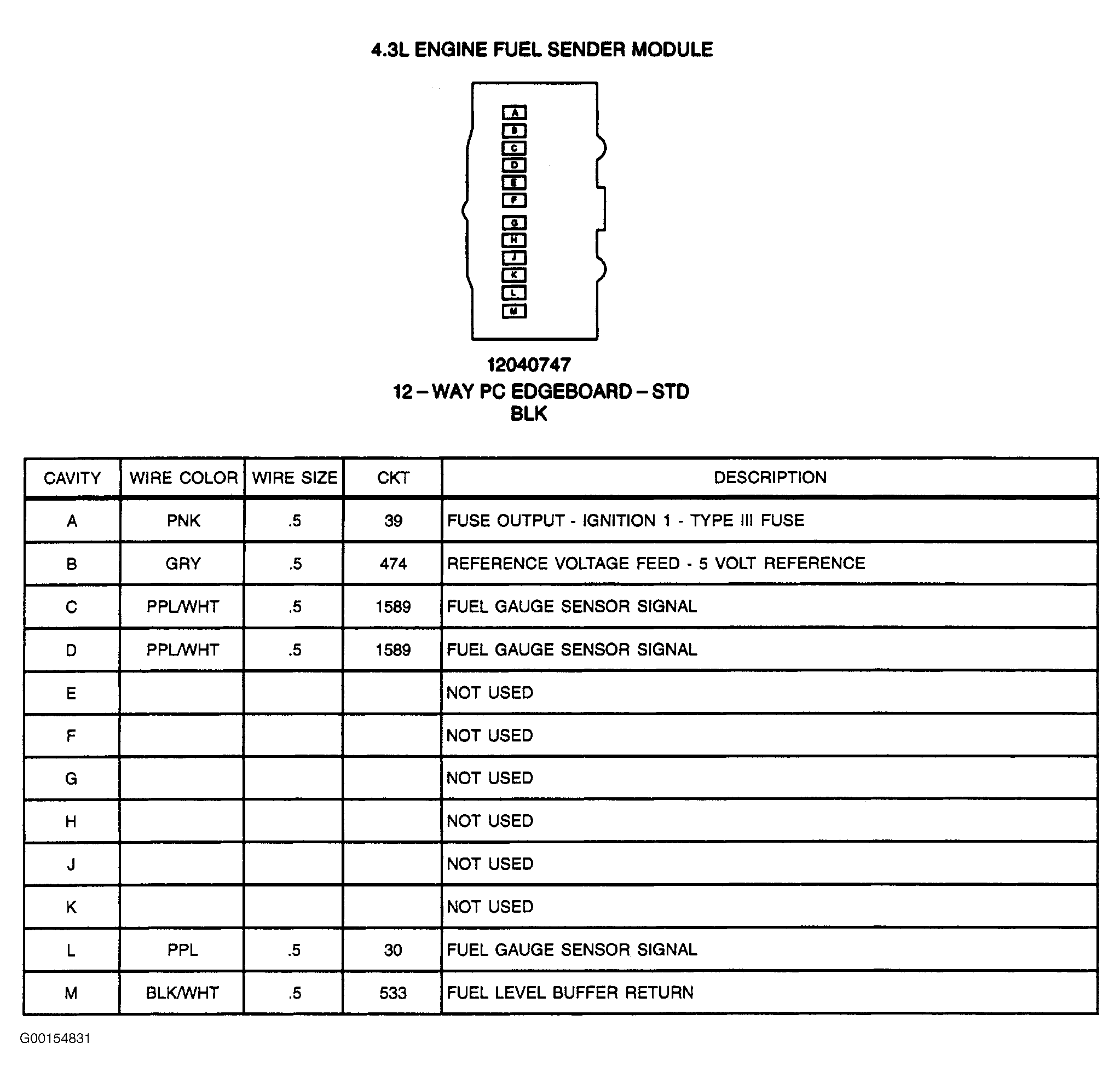

Fig 1: Engine Fuel Sender Module (4.3L) - 12-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
