Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

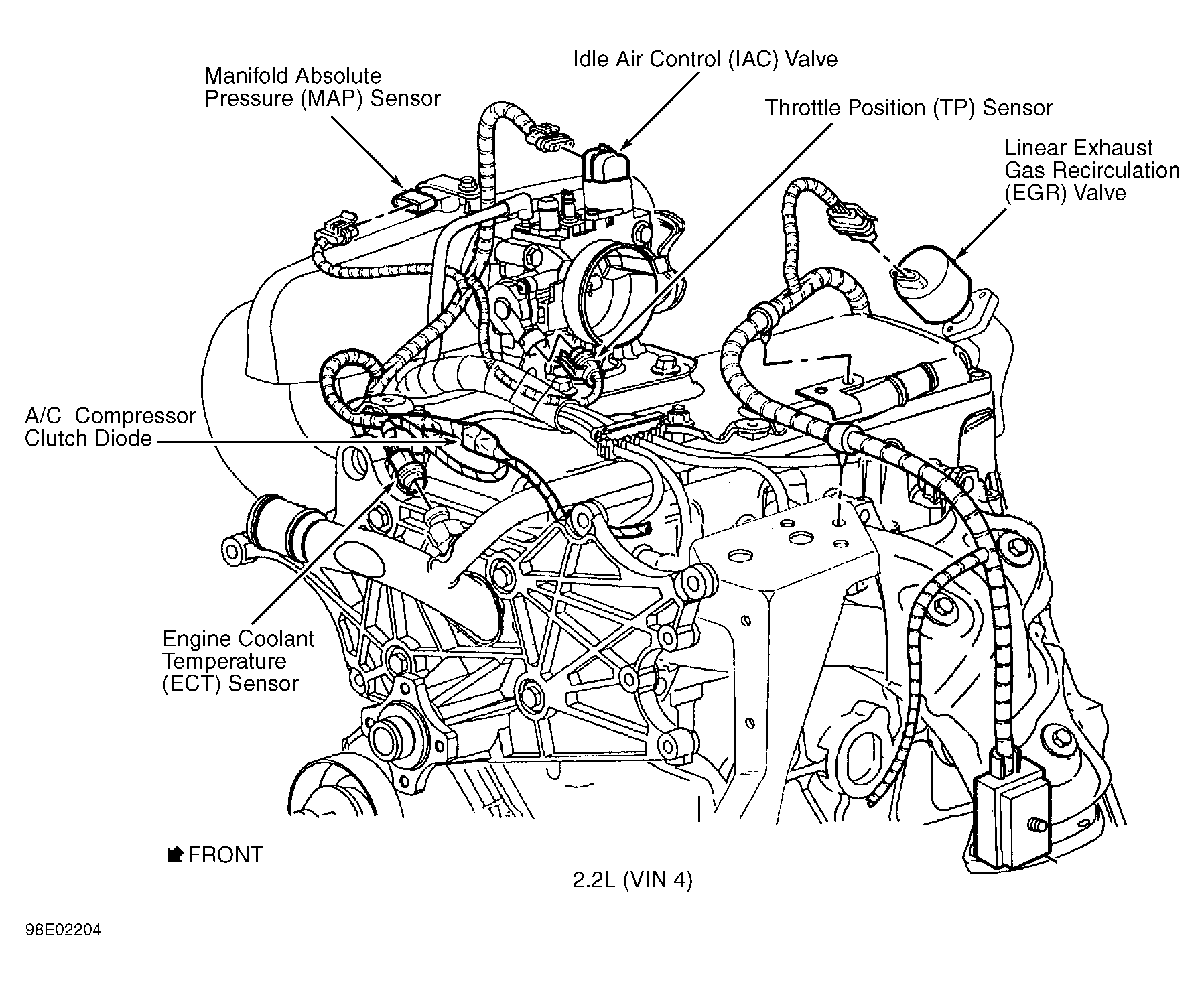

| A/C Compressor Clutch Diode (2.2L VIN 4) | In A/C compressor wire harness, between A/C compressor & engine harness breakout. See Figure. |

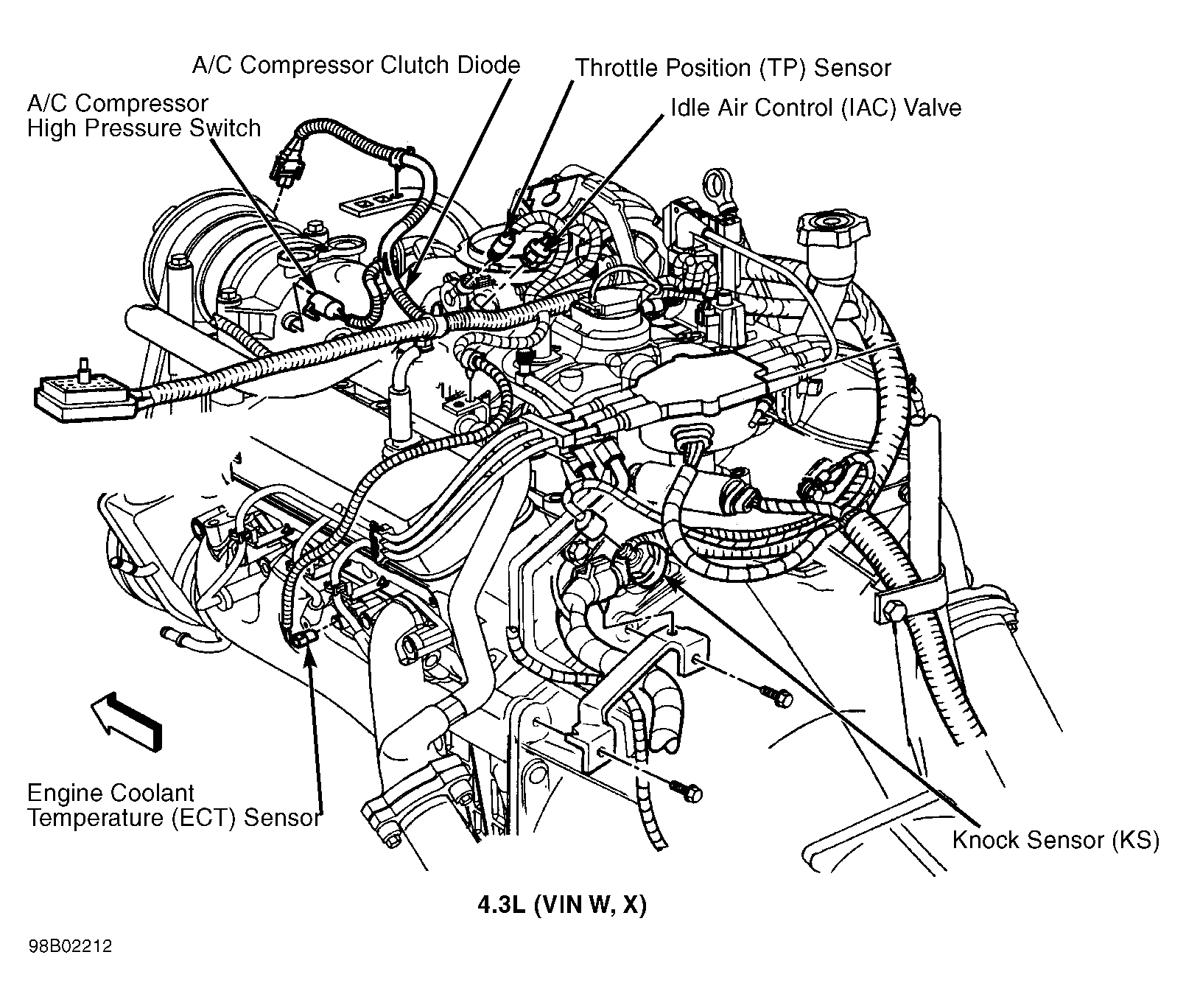

| A/C Compressor Clutch Diode (4.3L VIN W, X) | In A/C compressor clutch wire harness, behind compressor. See Figure. |
| Anti-lock Diode | In instrument cluster. |
| Battery Megafuse | On right side of radiator support, below battery. |
| Body Bussed Electrical Center (BBEC) | Behind left side of dash, near I/P fuse block. |
| Brake Warning Diode | In instrument cluster. |
| Daytime Running Lamps (DRL) Diode | In underhood bussed electrical center. |
| I/P Fuse Block | On left side of dash. |
| Power Seats Circuit Breaker | In body bussed electrical center. |
| Power Window Circuit Breaker | In body bussed electrical center. |
| Underhood Bussed Electrical Center (UBEC) | On top of left front fender wall. See Figure. |
