Section 719 (Door System, Mirror System & Window System)
>>
Diagnostic Information and Procedures
>>
Power Windows Inoperative - Lockout Function
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Windows Inoperative - Lockout Function
WARNING:
This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

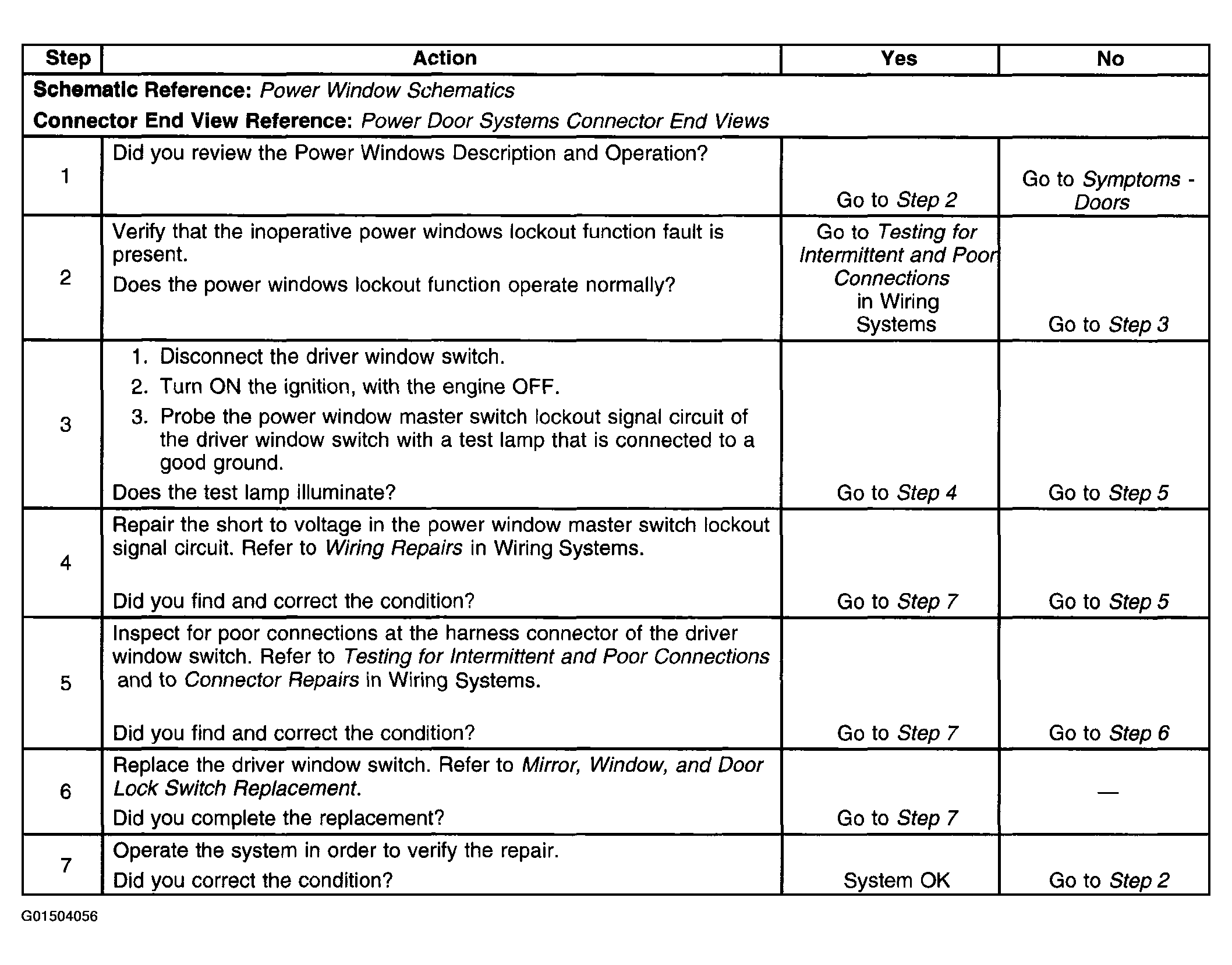

Fig 1: Power Windows Inoperative - Lockout Function Diagnostic System Check Chart
Courtesy of GENERAL MOTORS CORP.
