WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

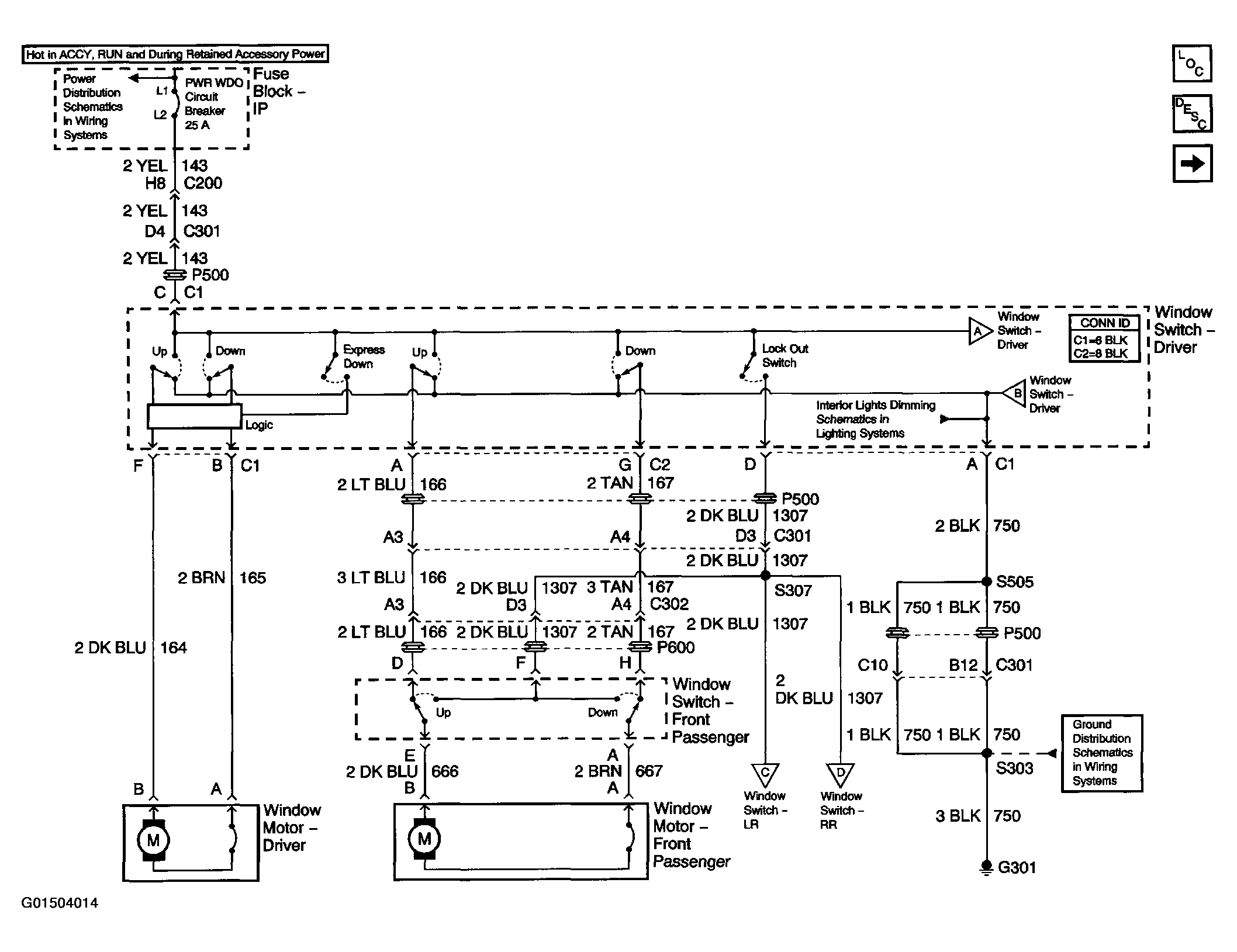

Fig 1: Power Window (Front Windows) Schematics Diagram
Courtesy of GENERAL MOTORS CORP.

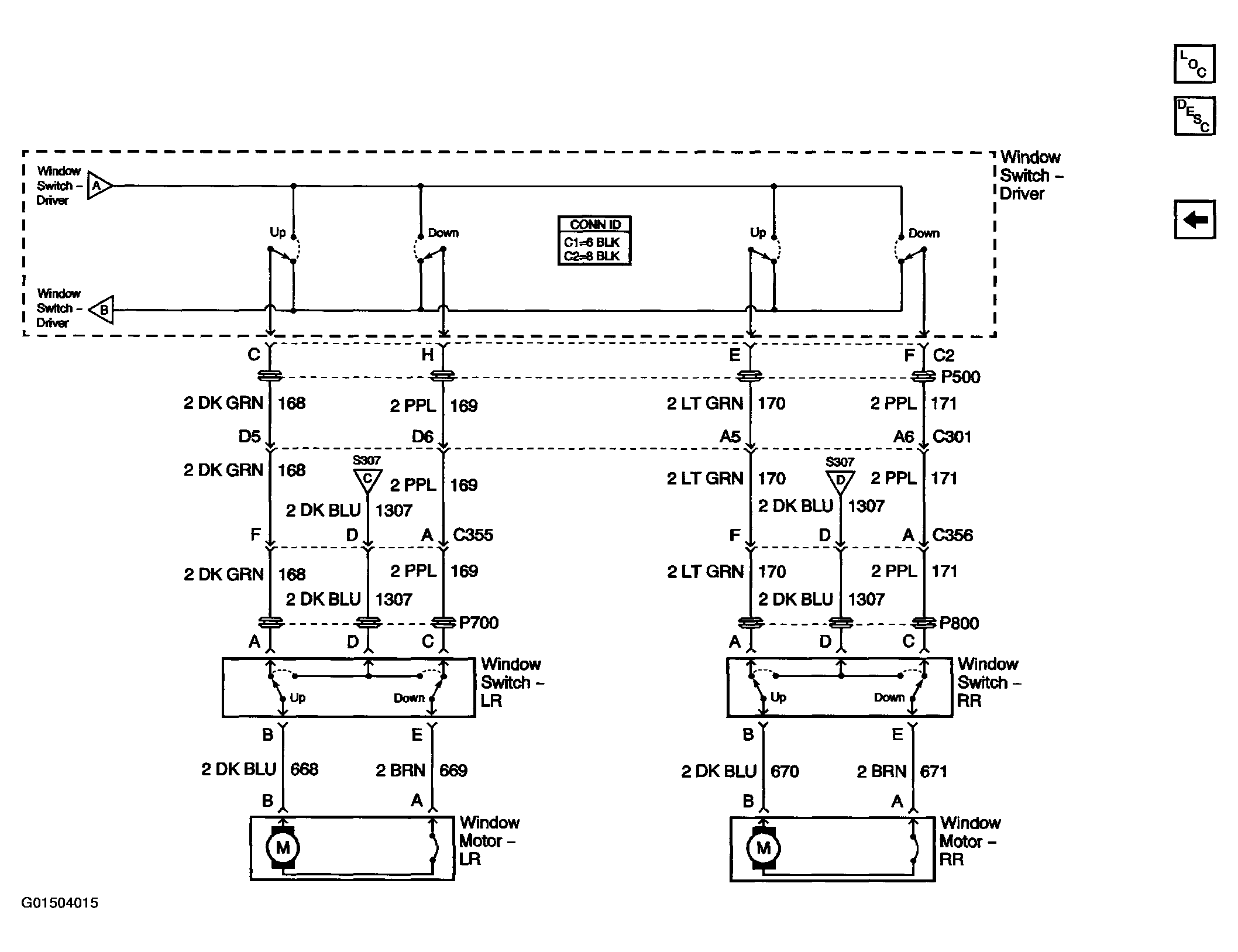

Fig 2: Power Window (Rear Windows) Schematics Diagram
