Removal & Installation
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Heated seat cushion cover connectors and several wire hold down clips will need to be removed to position seat cushion against seat back.

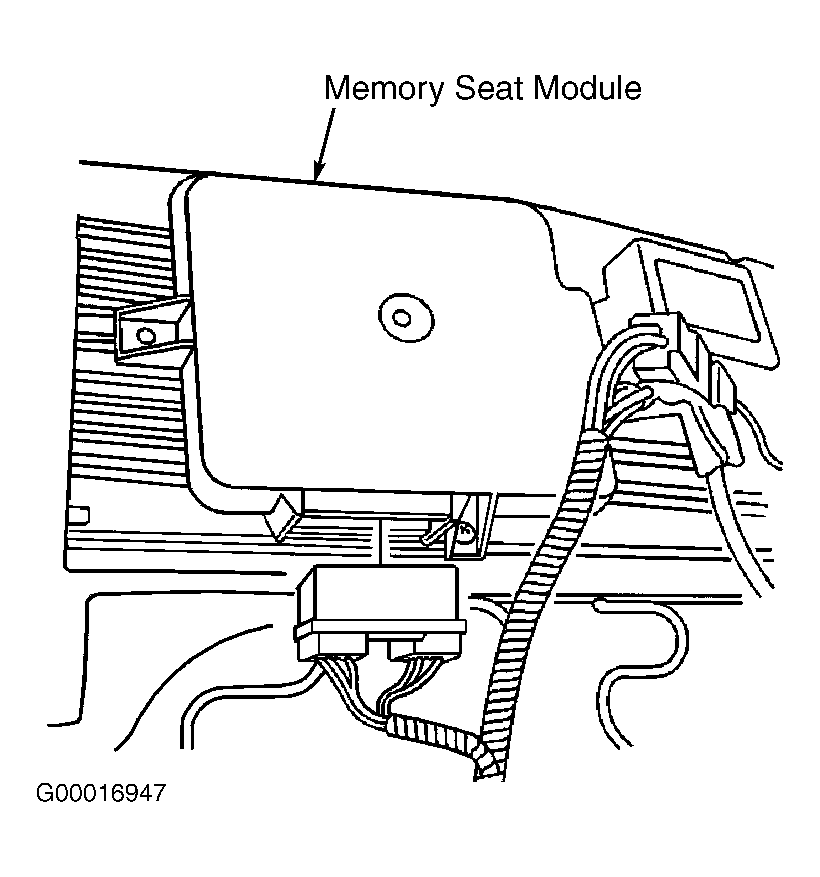

Disable air bag system. See AIR BAG RESTRAINT SYSTEMS article in RESTRAINTS. Move seat to full forward position. Remove seat track retainer bolt adjuster covers and seat track retainer bolts. Move seat to full rearward position. Remove front seat track cover and recline seat back fully rearward. Tilt seat forward and disengage front mounting points from floor. Disconnect harness connectors and remove seat from vehicle. Disconnect memory seat module harness connectors. Drill rivets retaining memory seat module to seat and remove. See Fig 1. To install, reverse removal procedure.
