Installation Procedure

    Fig 1: Remote Control Door Lock Receiver
    GM373581Courtesy of GENERAL MOTORS COMPANY
  1. Connect the electrical connector.
  2. Install the module starting with the large tang-tilt. Snap the 2 lock arms into the square holes.

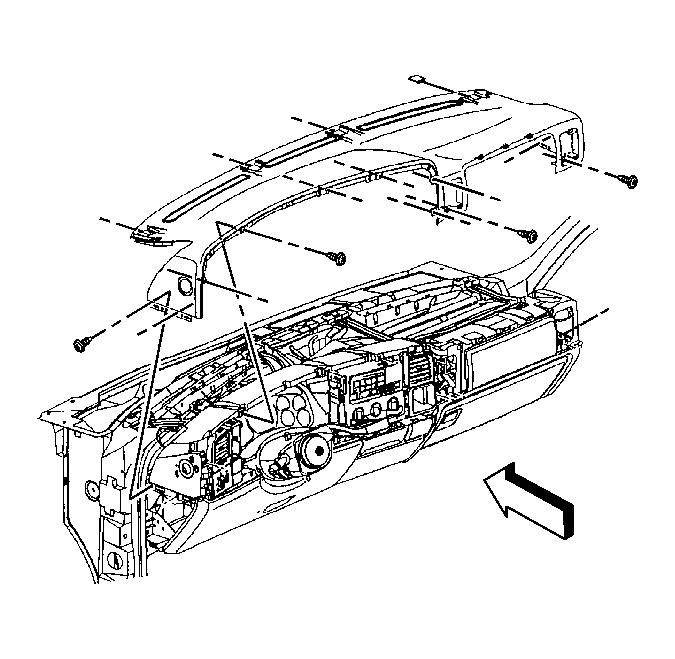

    3. Fig 2: Identifying I/P Assembly Upper Trim Panel
    GM348717Courtesy of GENERAL MOTORS COMPANY
  3. Install the instrument panel (IP) top cover. Refer to Instrument Panel Upper Trim Pad Replacement in Instrument Panel, Gauges and Console.
