LR of the Engine Compartment Components (w/Electronic Throttle Controls)

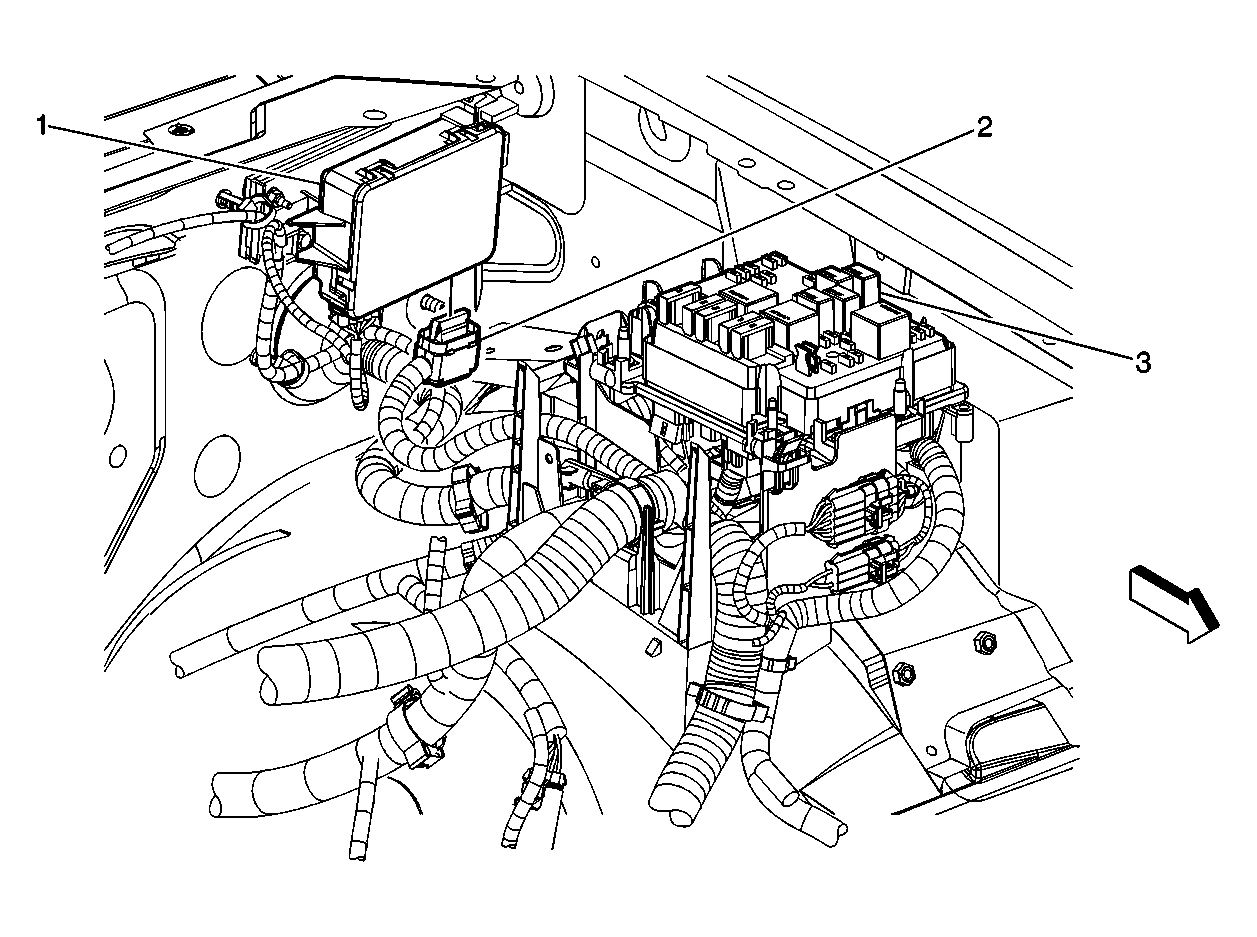

Fig 1: TAC Module And Underhood Junction Block
GM656496Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Throttle Actuator Control (TAC) Module
2 Throttle Actuator Control (TAC) Module Connector
3 Junction Block-Underhood
