Installation Procedure

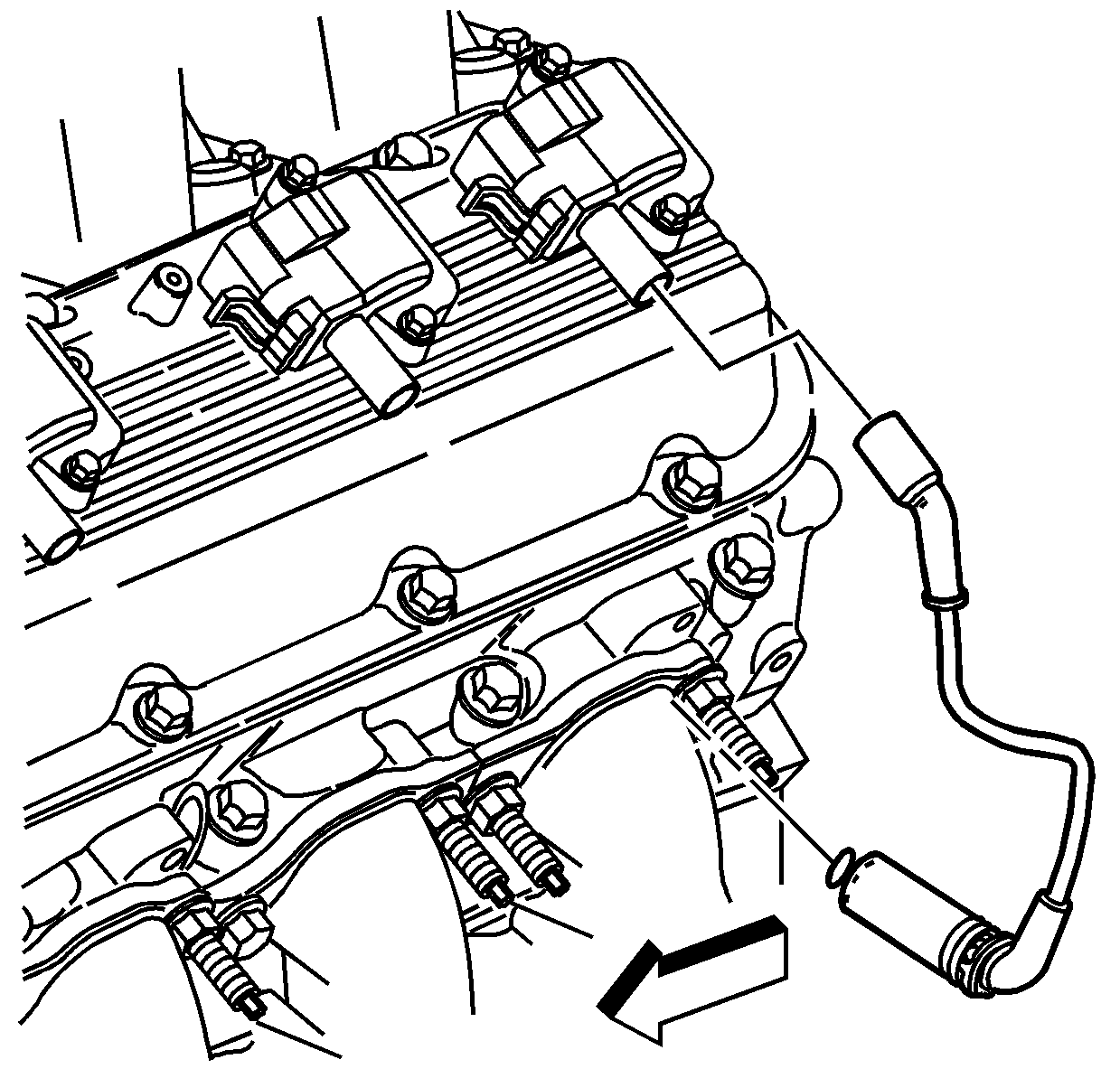

    Fig 1: View Of Spark Plug Wire
    GM470666Courtesy of GENERAL MOTORS COMPANY
  1. Install the spark plug wires at the ignition coil.
  2. Install the spark plug wire to each spark plug.
  3. Inspect the wires for proper installation:
    • Push sideways on each boot in order to inspect the seating.
    • Install any loose boot.
