LF Corner of the Engine Compartment

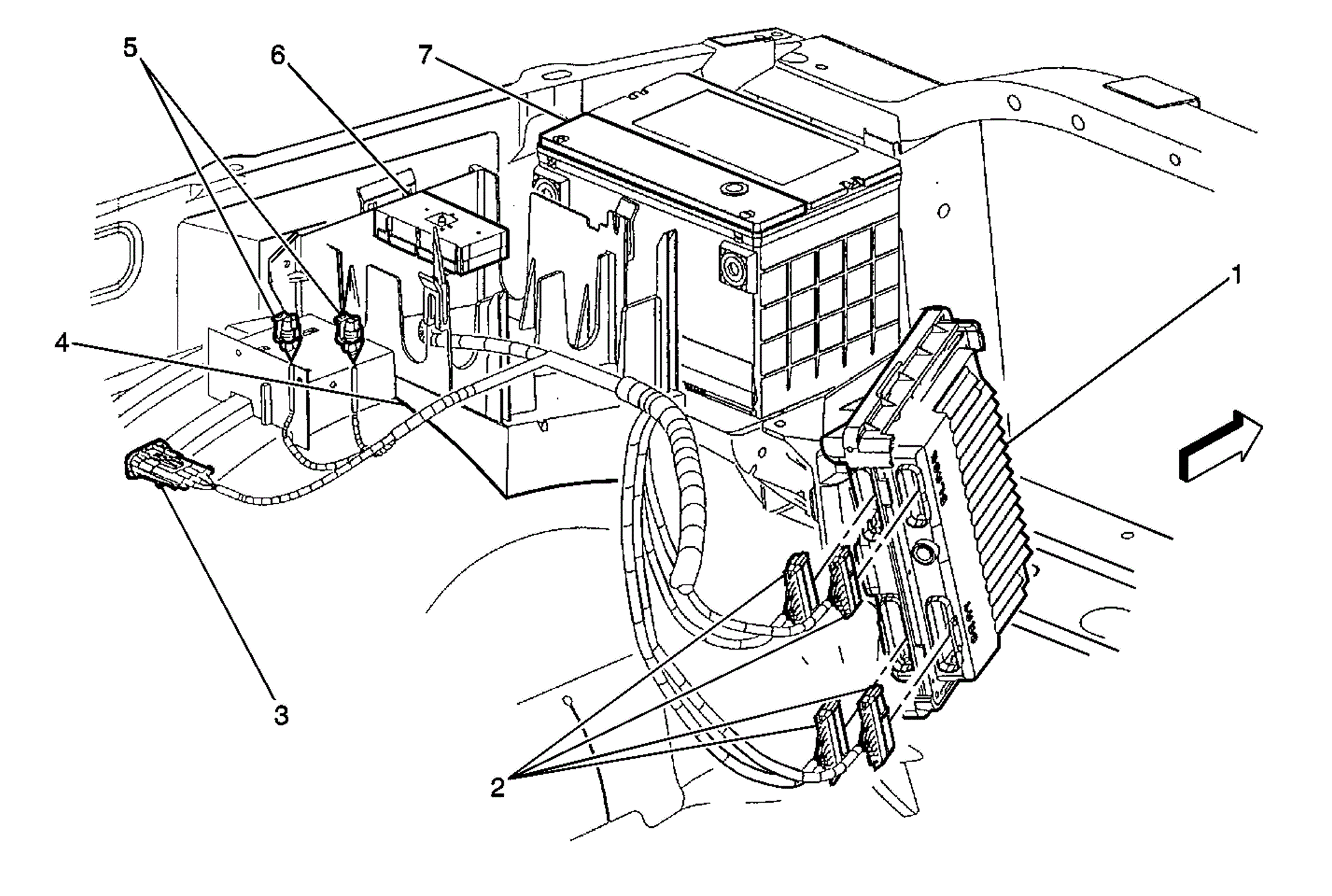

Fig 1: PCM And Underhood Junction Block
GM310775Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 PCM
2 PCM Connectors
3 Inline Chassis Harness Connector (C152)
4 Junction Block Underhood Bracket
5 Inline Connectors
6 Junction Block Underhood Connector
7 Battery
