Installation Procedure

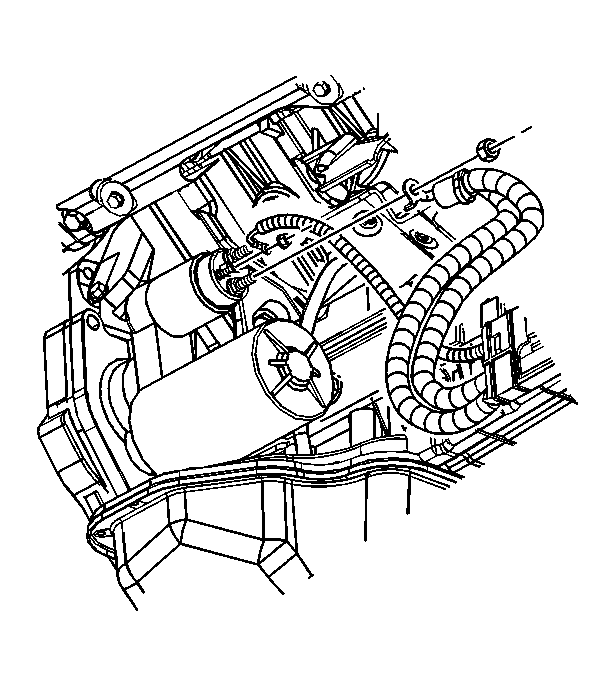

    Fig 1: View Of Positive Battery Cable Nut & Cable From The Starter (6.6L (LB7))
    GM674619Courtesy of GENERAL MOTORS COMPANY
  1. Install the battery positive cable to the vehicle.
  2. Install the battery positive cable to the starter solenoid stud.
  3. Refer to FASTENER NOTICE in Cautions and Notices.

    Install the starter solenoid nut.

    Tighten

    Tighten the starter solenoid nut to 9 N.m (80 lb in).

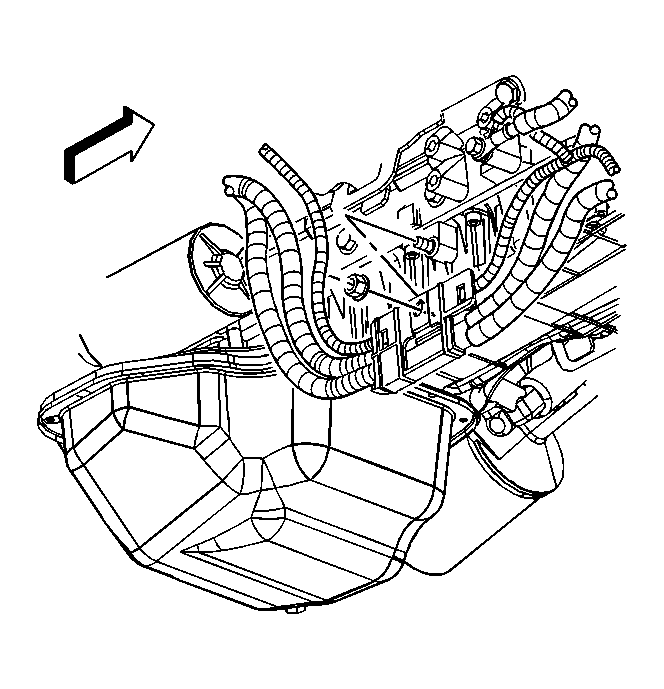

    4. Fig 2: View Of Battery Cable Bracket Nut
    GM673568Courtesy of GENERAL MOTORS COMPANY
  4. Install the battery positive cable in the retainer.
  5. Install the battery positive cable bracket and nut.

    Tighten

    Tighten the battery cable retainer nut to 12 N.m (106 lb in).

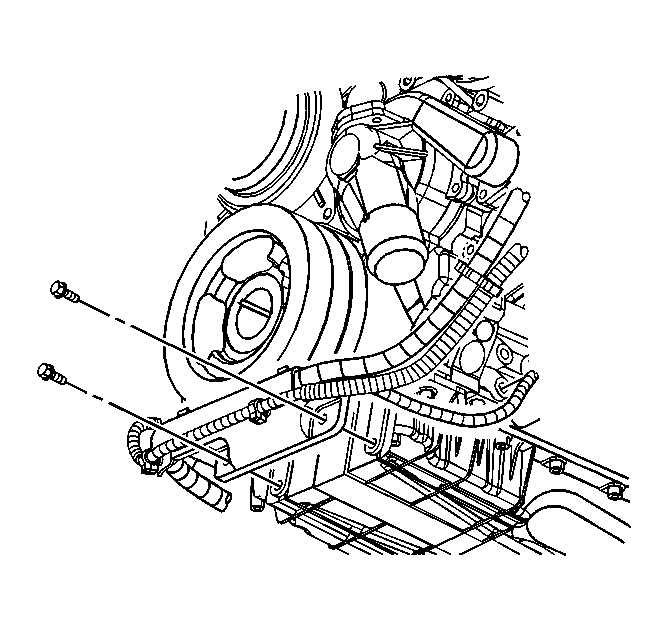

    6. Fig 3: View Of Battery Cable Bracket Bolts At Lower Crankcase
    GM673564Courtesy of GENERAL MOTORS COMPANY
  6. Install the battery positive cable to the channel.
  7. Install the battery cable channel bolts.

    Tighten

    Tighten the battery cable channel bolts to 8 N.m (71 lb in).

  8. Lower the vehicle.
  9. Install the negative cable clip to the clip on the positive cable.
    10. Fig 4: View Of Battery Cables At Junction Block
    GM662521Courtesy of GENERAL MOTORS COMPANY
  10. Install the positive cable (1) into the junction block.
  11. Snap the junction block cover closed.
    12. Fig 5: Positive Battery Cable Bolt
    GM662502Courtesy of GENERAL MOTORS COMPANY
  12. Tighten the positive cable bolt at the UBEC.

    Tighten

    Tighten the positive cable bolt at the UBEC to 9 N.m (80 lb in).

    13. Fig 6: View Of Battery & Positive Battery Cable
    GM662504Courtesy of GENERAL MOTORS COMPANY
  13. Connect the positive battery cable.

    Tighten

    Tighten the positive battery cable bolt to 17 N.m (13 lb ft).

    14. Fig 7: View Of Battery Cables
    GM662092Courtesy of GENERAL MOTORS COMPANY
  14. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Auxiliary Battery) , Battery Negative Cable Disconnection and Connection (Single Battery) .
