Installation Procedure

Important:  Do not reuse the old mounting screws. Always install new mounting screws with the new EBCM.

Important:  Do not use RTV or any other type of sealant on the EBCM gasket or mating surfaces.

1. Install EBCM (2) on to the BPMV (3).
2. Connect the electrical connectors to the EBCM.
   NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
3. Install the 4 new T-25 Torx® screws (1) in the EBCM (2).

   Tighten

   Tighten the 4 T-25 Torx® screws to 5 N.m (39 lb in) in an X-pattern.

4. Revise the tire calibration using the Scan Tool.
5. Return to Diagnostic System Check - ABS .

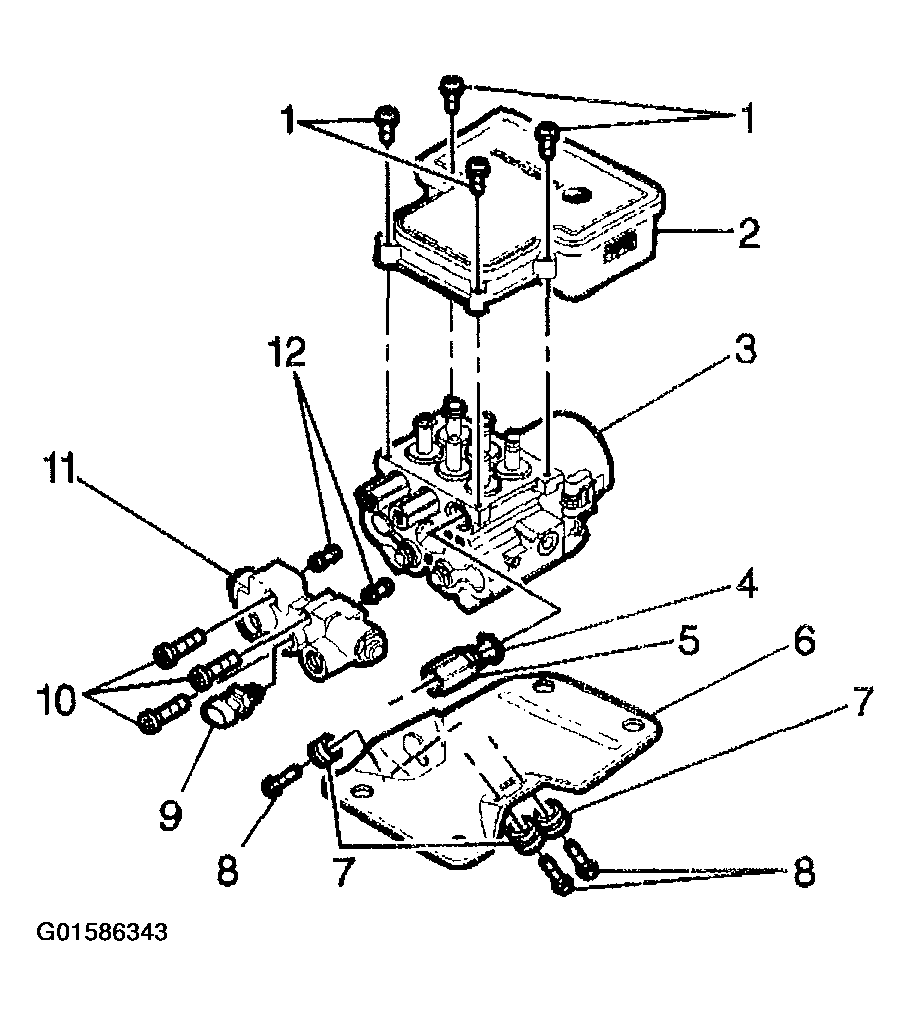

   Fig 1: EBCM, BPMV & Components

   Courtesy of GENERAL MOTORS CORP.
