Window Motor Connector End View - Front Passenger

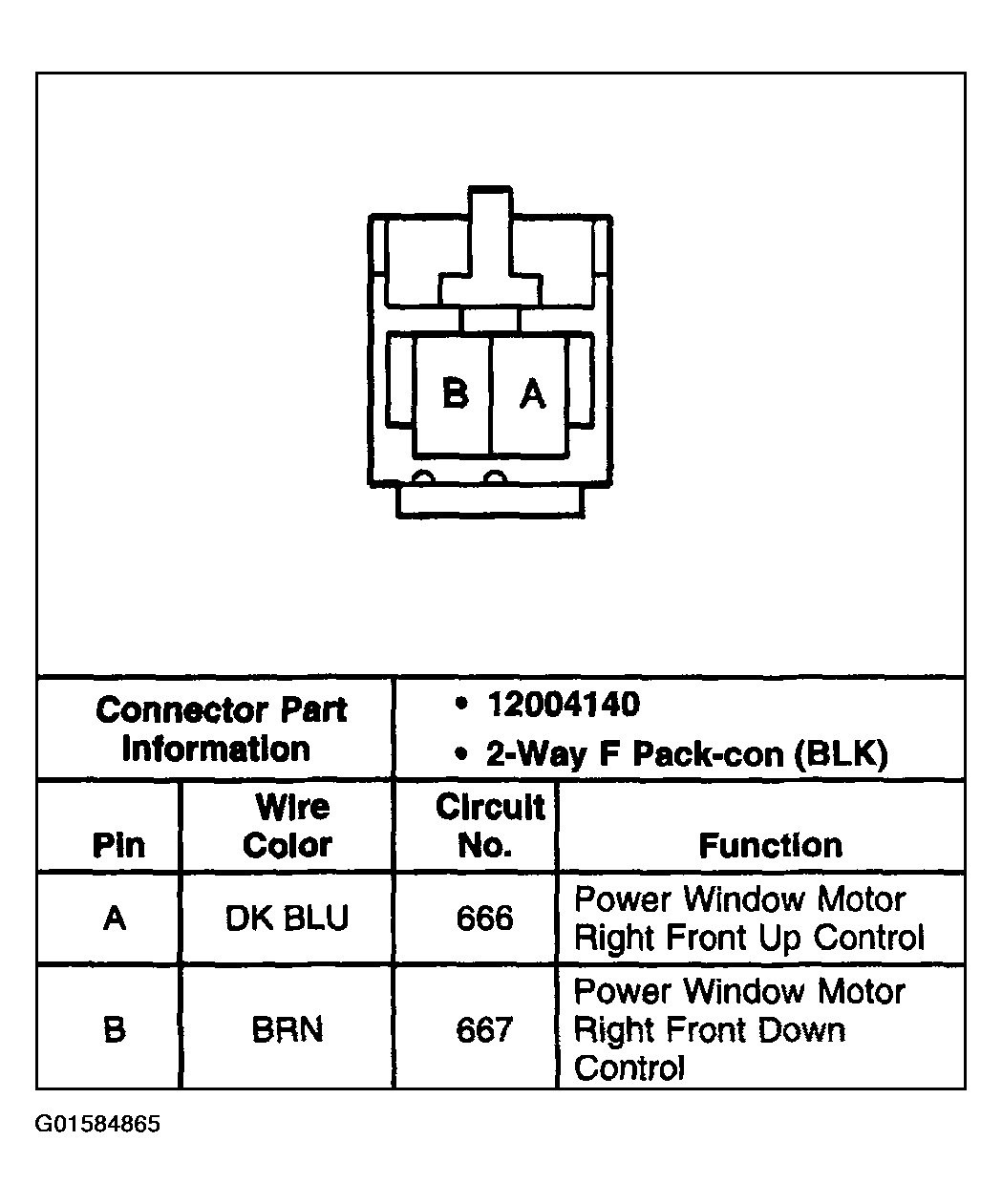

Fig 1: Window Motor Connector End View - Front Passenger
G01584865Courtesy of GENERAL MOTORS CORP.
