Engine Electrical Component Views

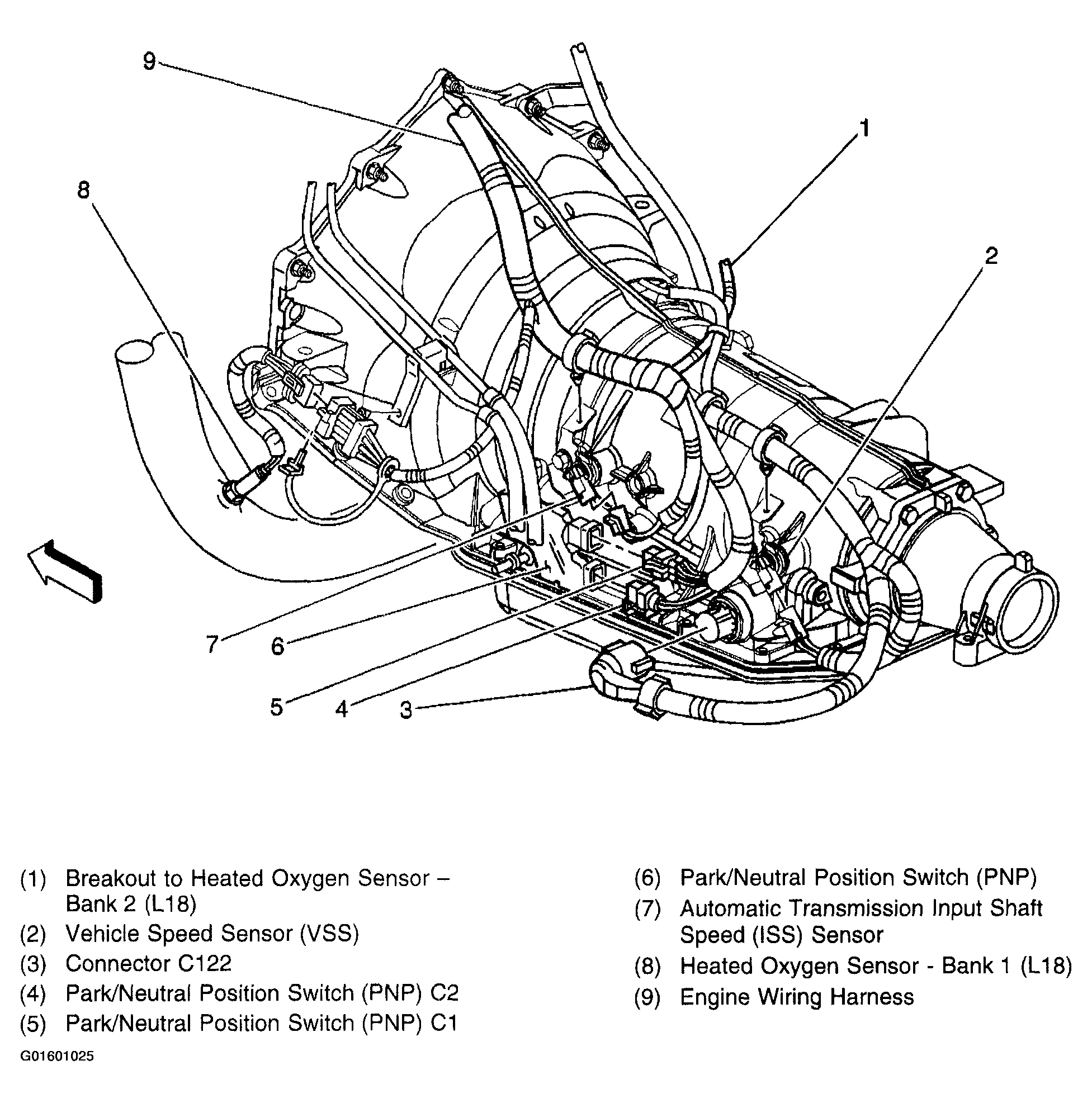

Fig 1: C122, PNP Switch, VSS and TISS Sensors - Automatic Transmission

Courtesy of GENERAL MOTORS CORP.

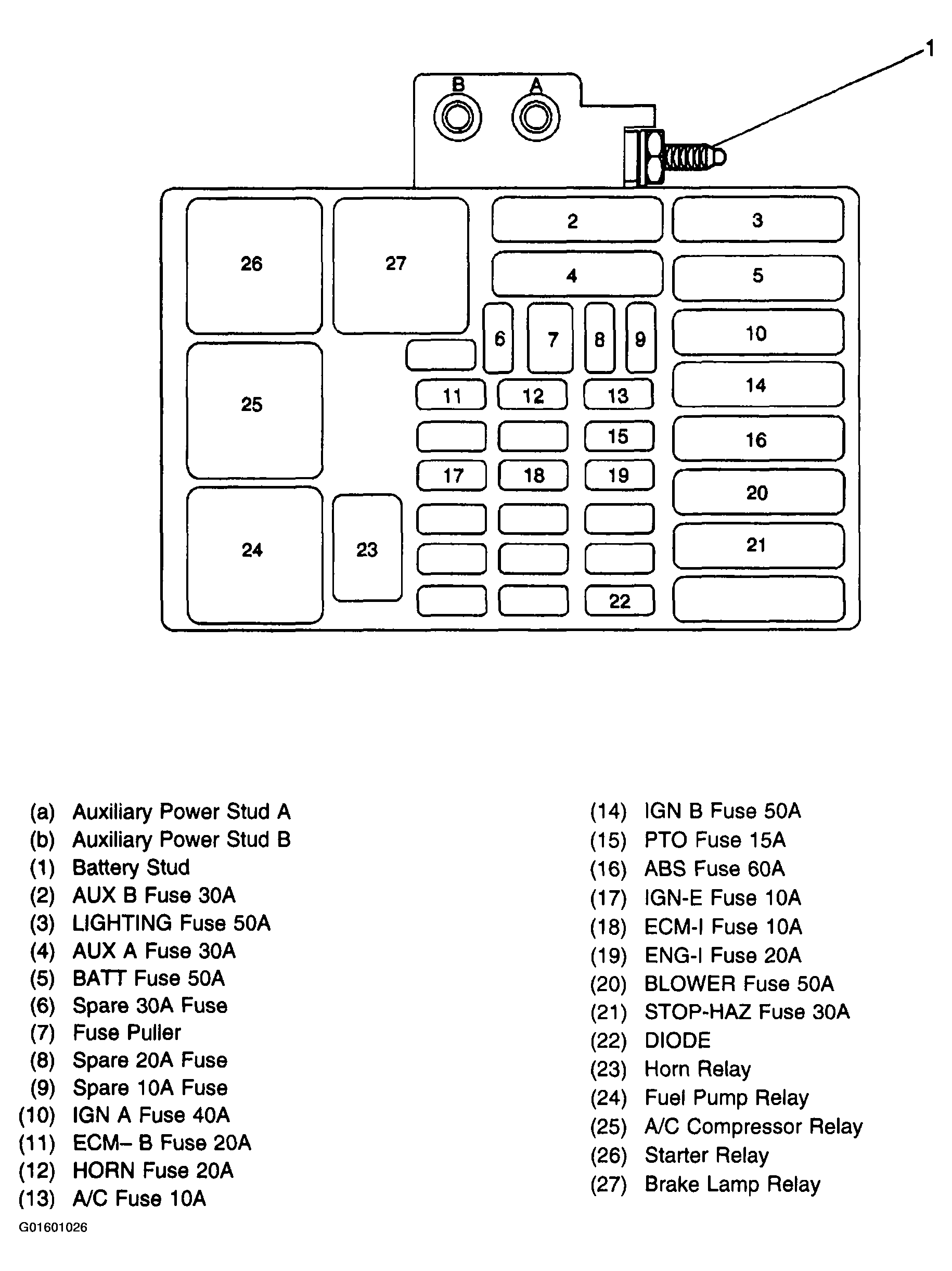

Fig 2: Underhood Fuse Block

Courtesy of GENERAL MOTORS CORP.

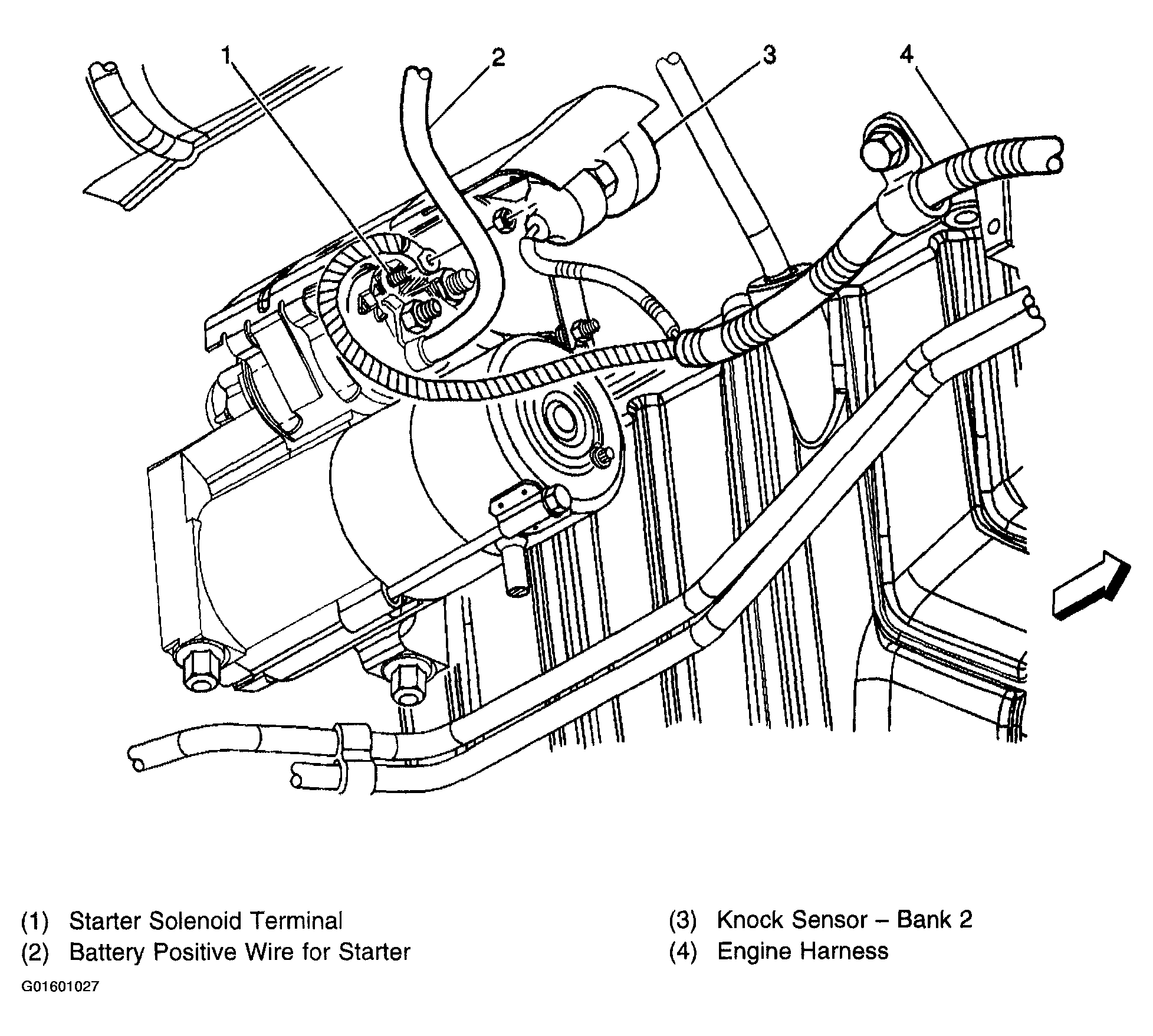

Fig 3: Starter and Knock Sensor - Bank 2

Courtesy of GENERAL MOTORS CORP.

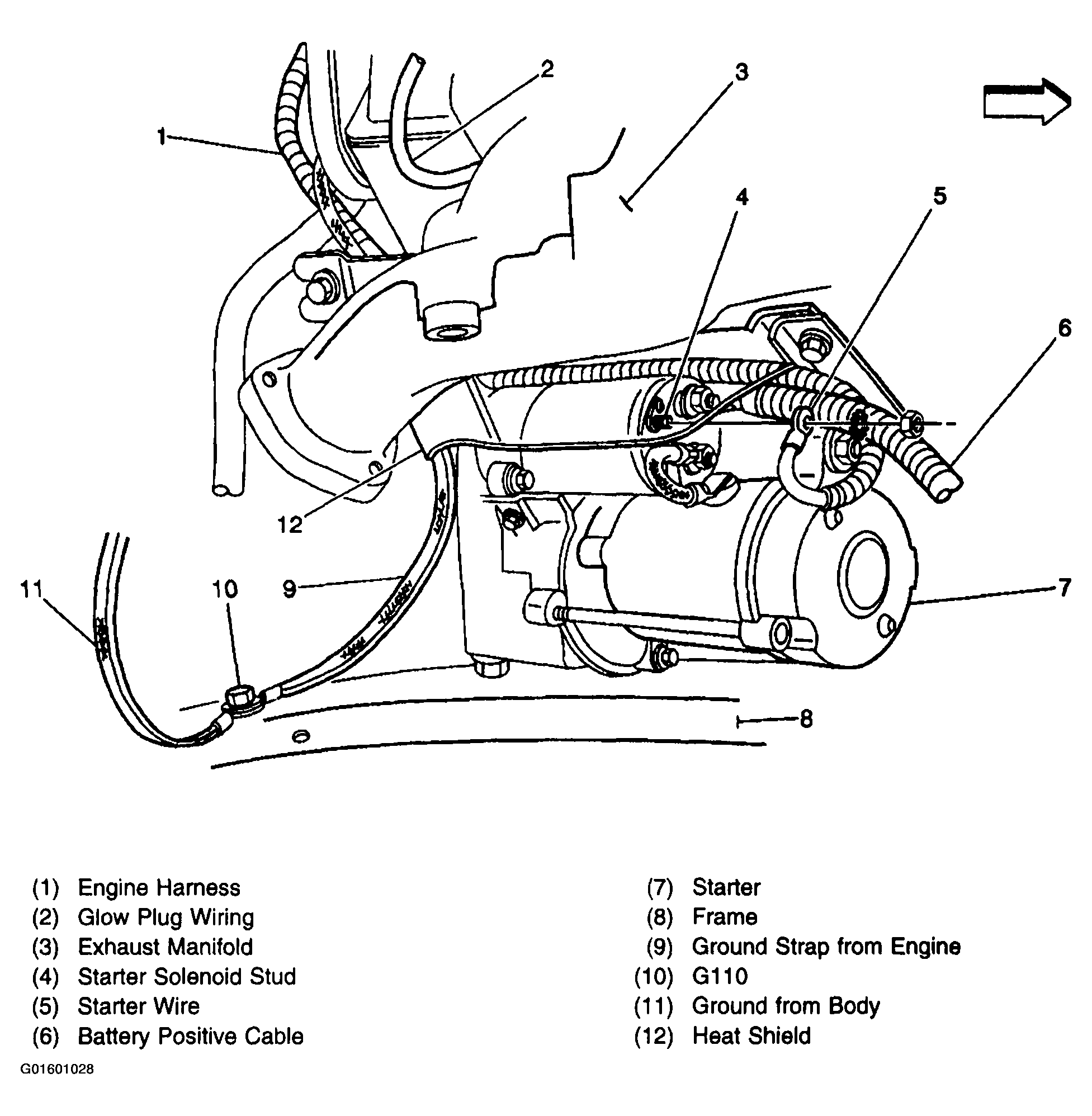

Fig 4: G110 & Starter

Courtesy of GENERAL MOTORS CORP.

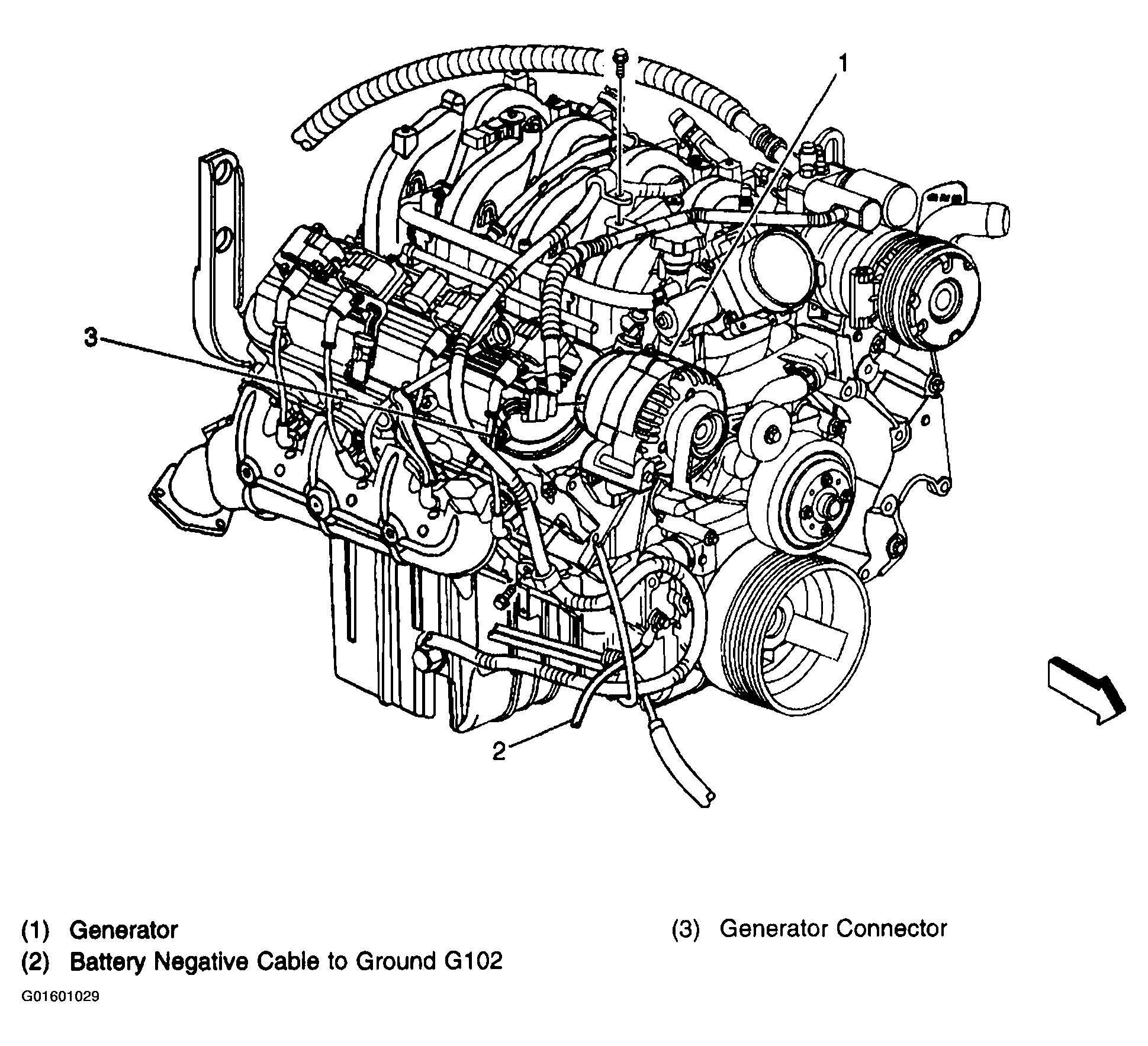

Fig 5: G102 & Generator Wiring - L18

Courtesy of GENERAL MOTORS CORP.

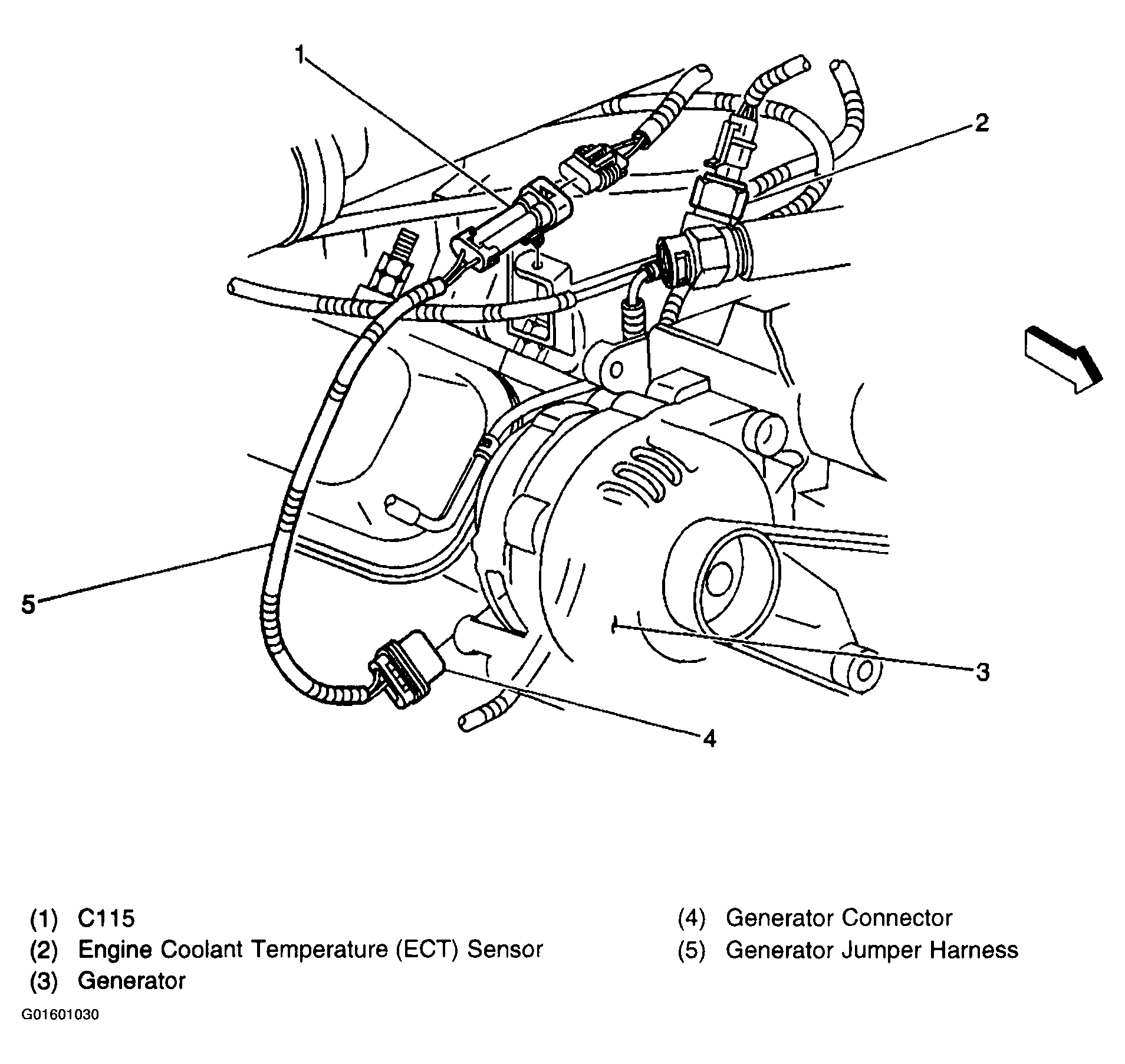

Fig 6: C115, Generator & Engine Coolant Temperature Sensor - L65

Courtesy of GENERAL MOTORS CORP.

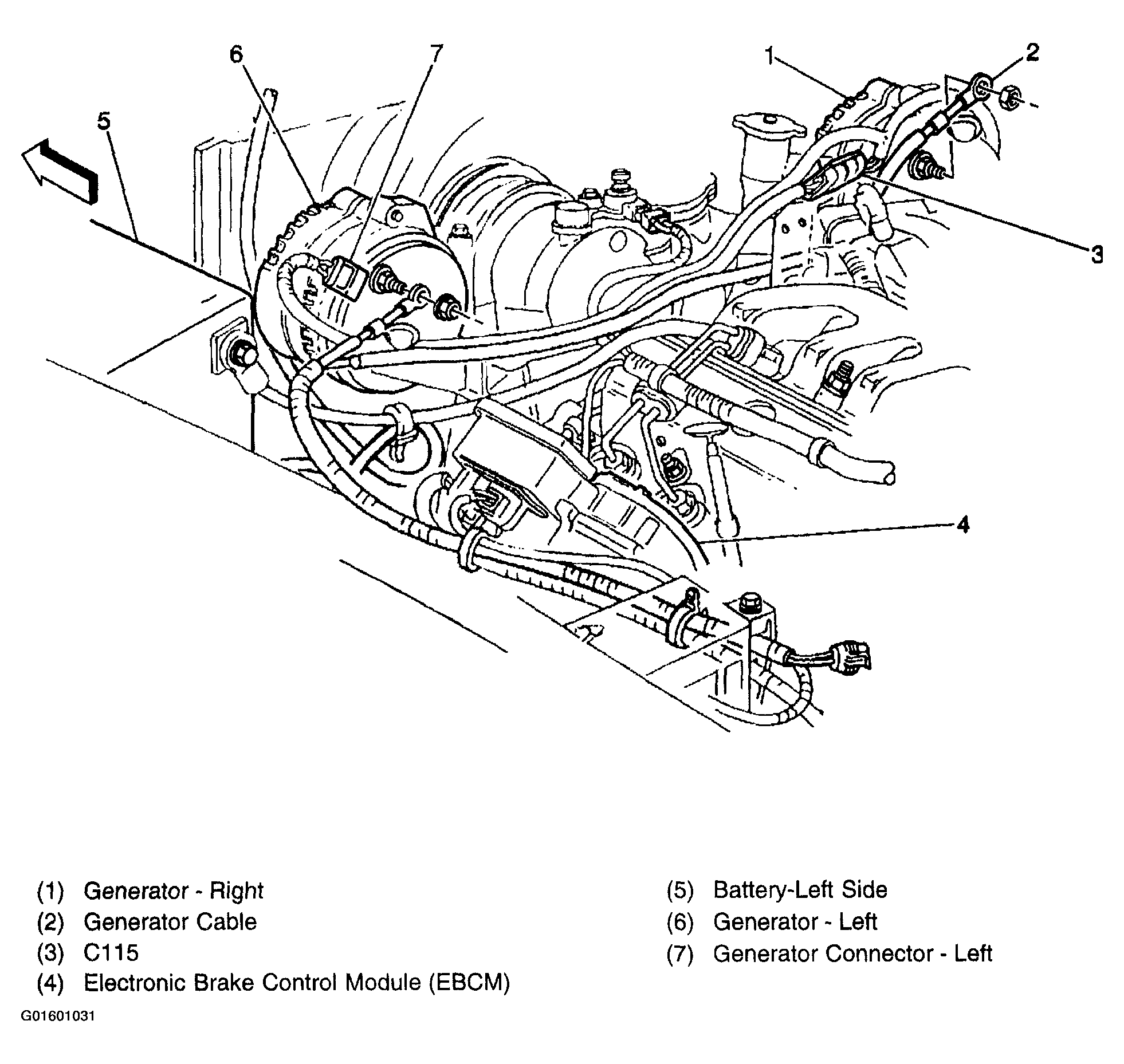

Fig 7: Dual Generator Support Wiring

Courtesy of GENERAL MOTORS CORP.

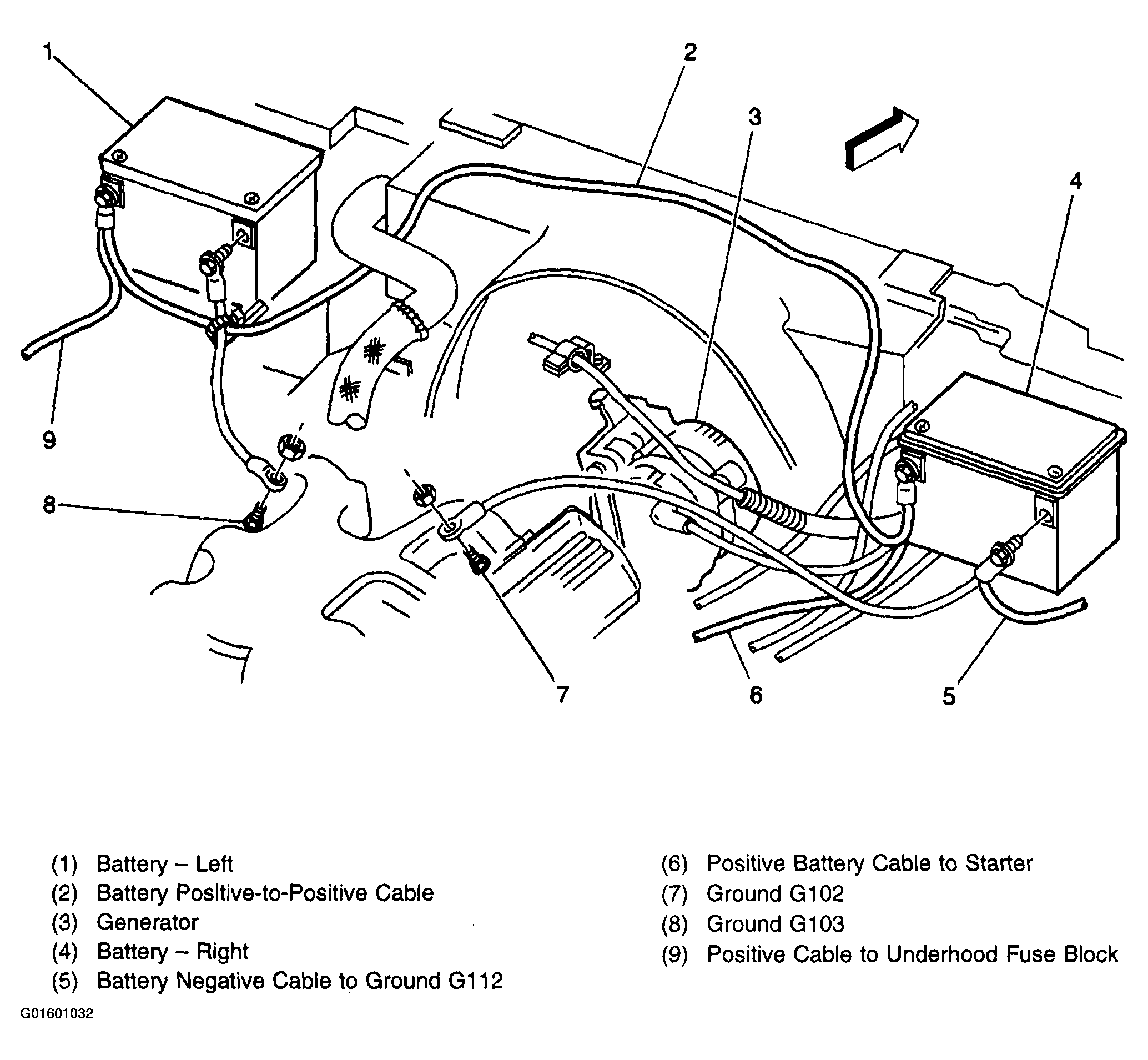

Fig 8: G102, G103 & Dual Battery Wiring - L65 Single Generator

Courtesy of GENERAL MOTORS CORP.

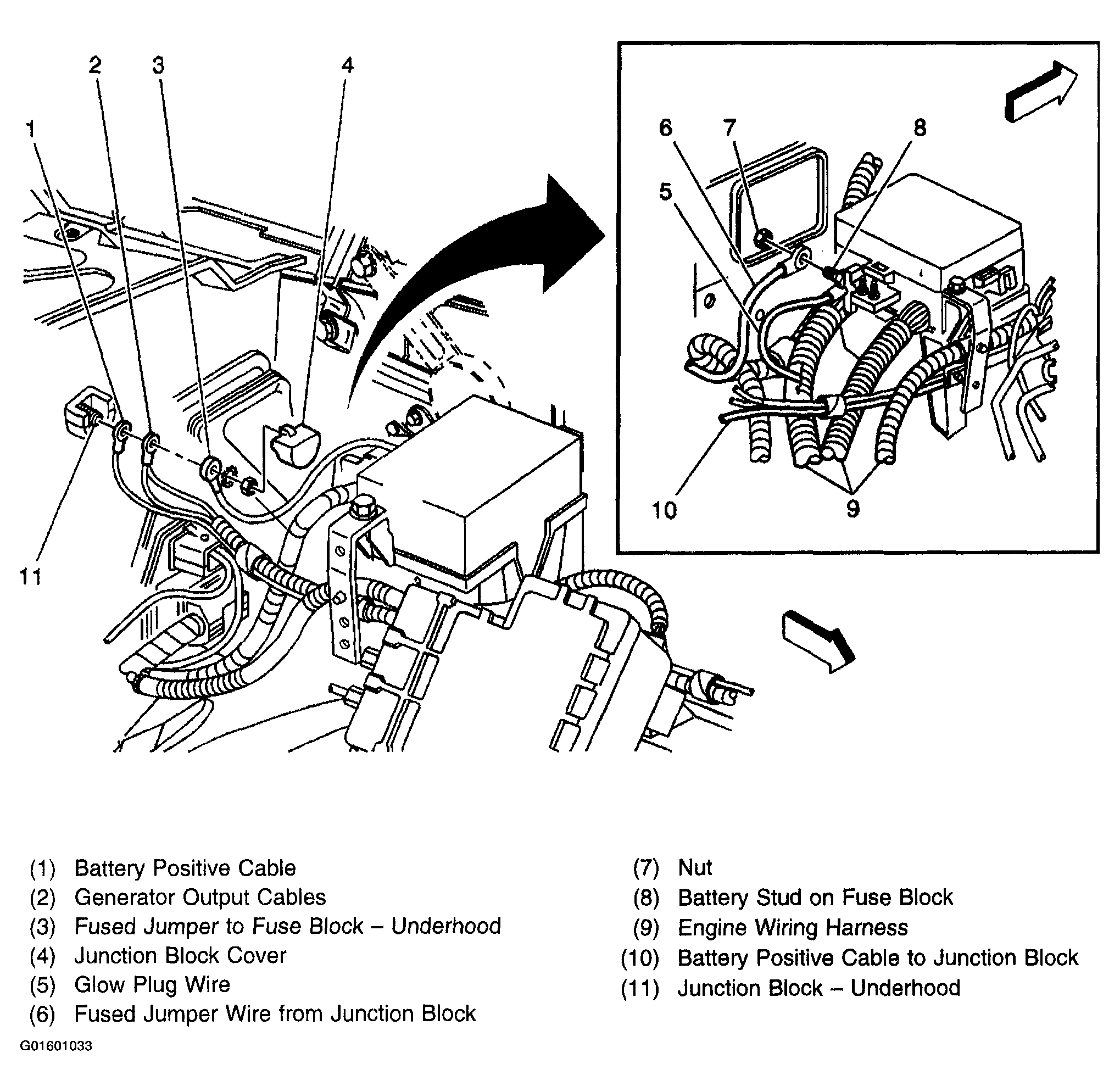

Fig 9: Battery Wiring To Underhood Fuse Block - L65 Dual Generator

Courtesy of GENERAL MOTORS CORP.

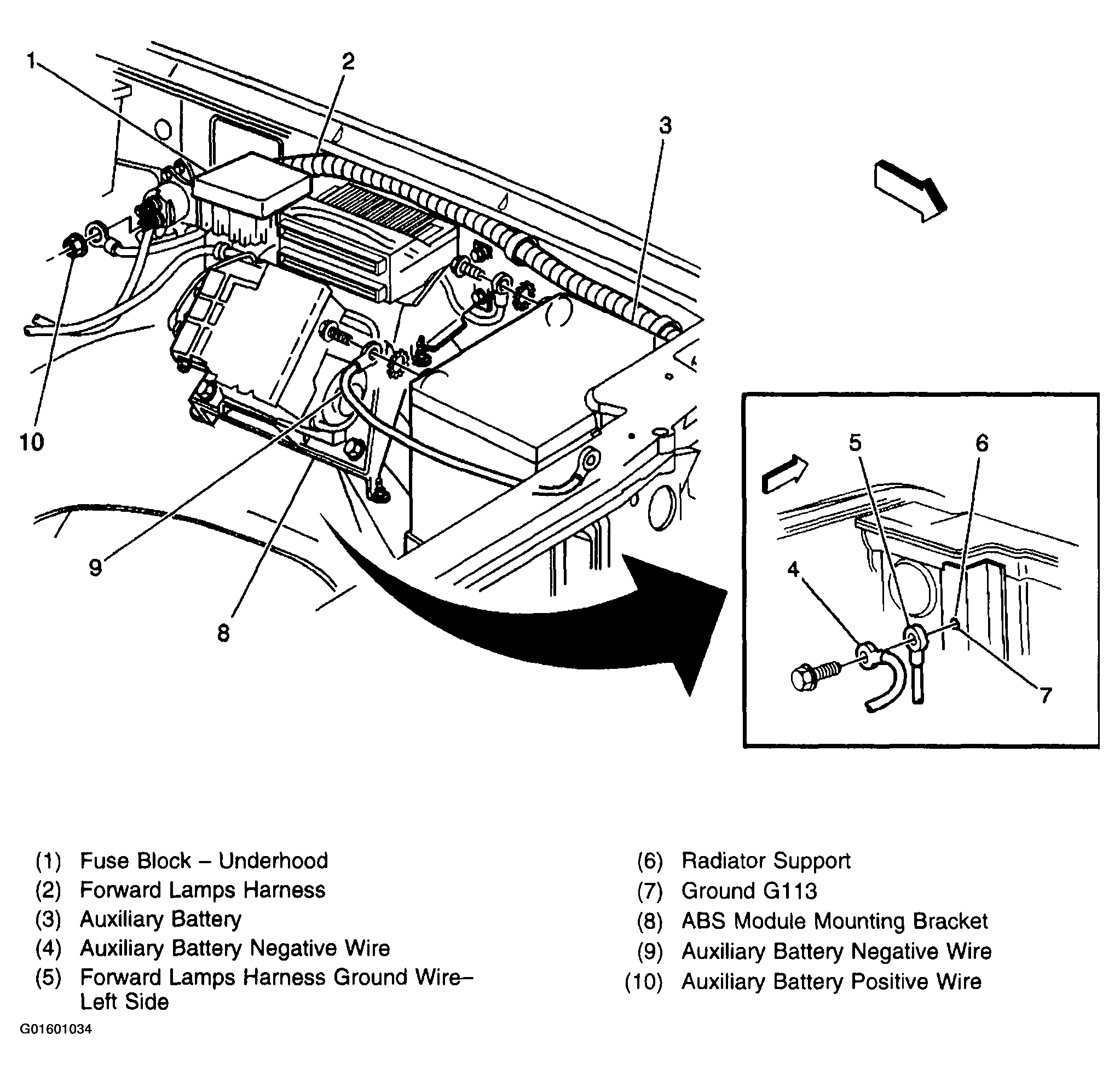

Fig 10: G113 & Auxiliary Battery Connections

Courtesy of GENERAL MOTORS CORP.

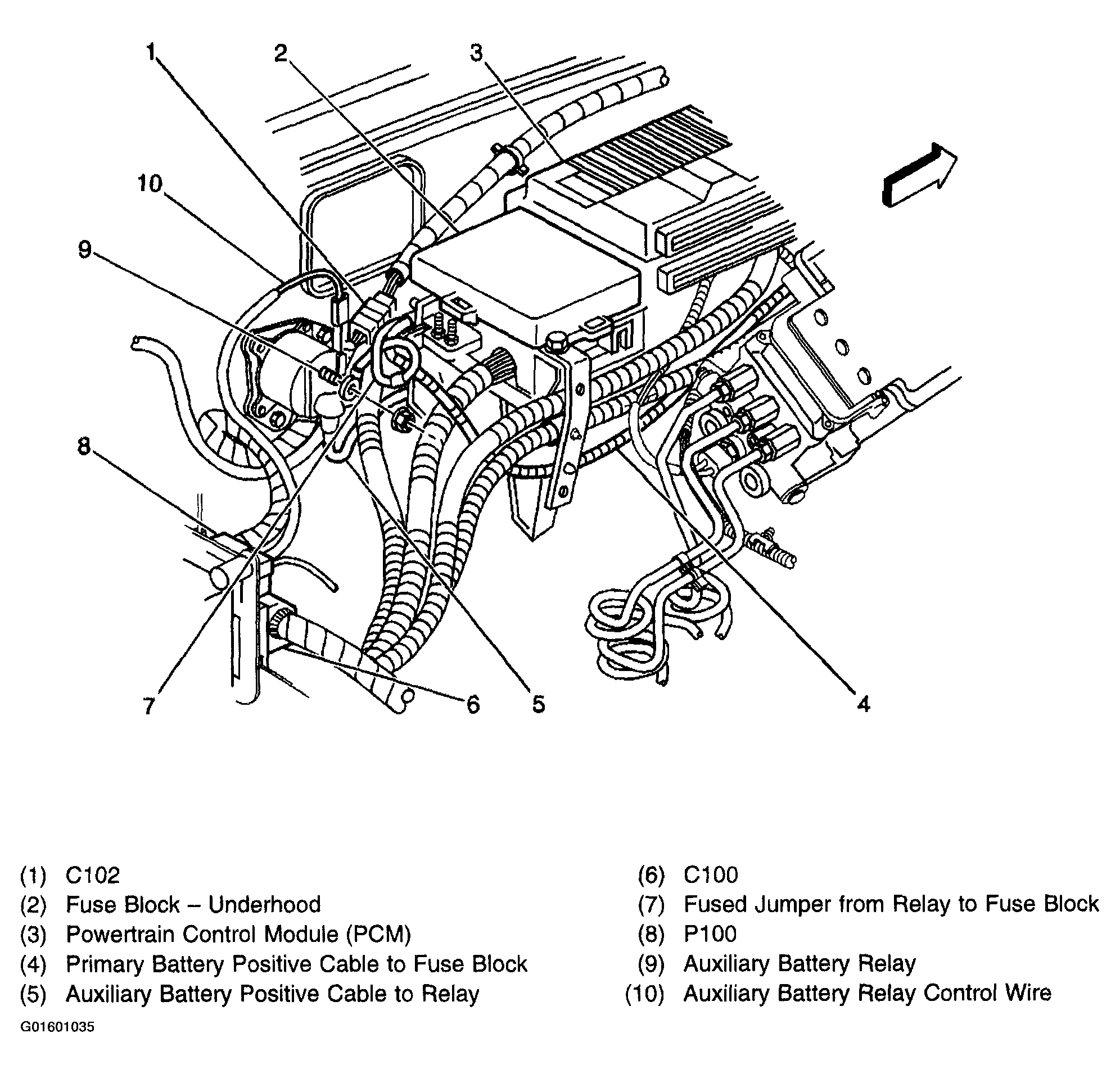

Fig 11: Auxiliary Battery Relay Wiring

Courtesy of GENERAL MOTORS CORP.
