Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

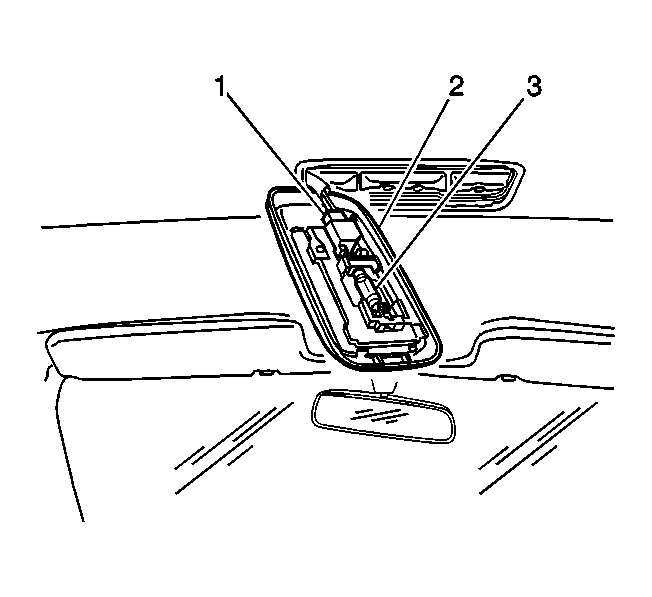

    Fig 1: Electrical Connector, Dome Lamp And Bulb
    GM241559Courtesy of GENERAL MOTORS CORP.
  1. Install the bulb (3) to the dome lamp (2), if removed.
  2. Connect the dome lamp electrical connector (1).

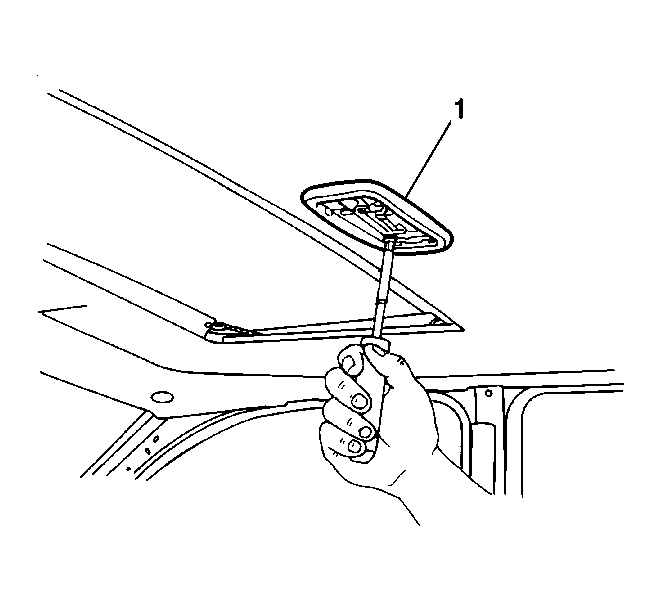

    3. Fig 2: Removing/Installing Dome Lamp Lens
    GM245041Courtesy of GENERAL MOTORS CORP.
  3. Install the dome lamp (1) to the roof.
  4. Install the dome lamp lens.
