Connector Identification

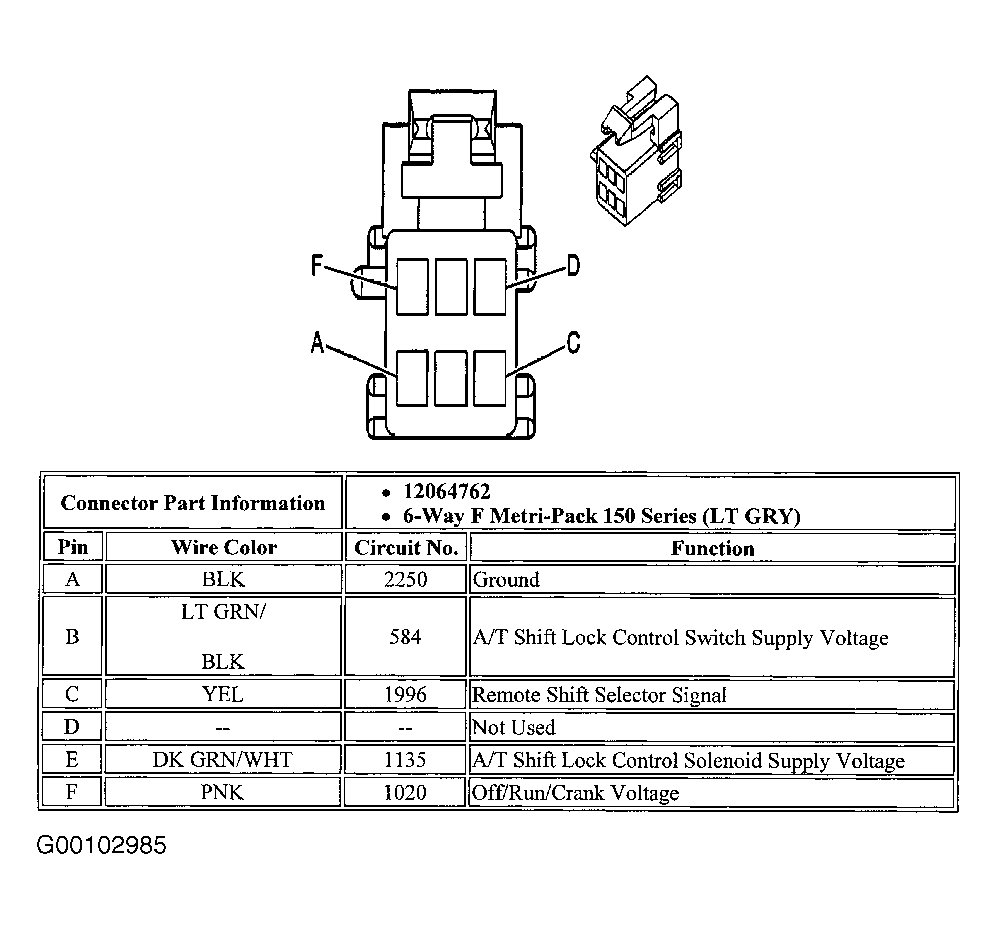

Fig 1: Identifying Park & Shift Lock Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

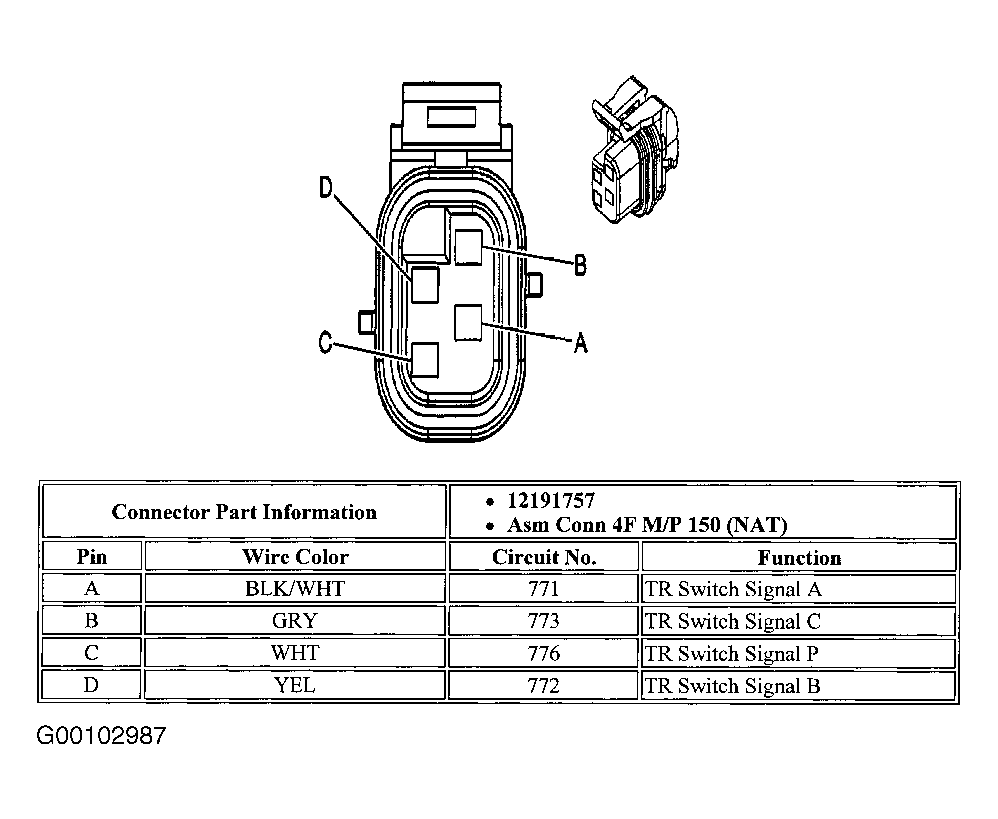

Fig 2: Identifying PNP Switch Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

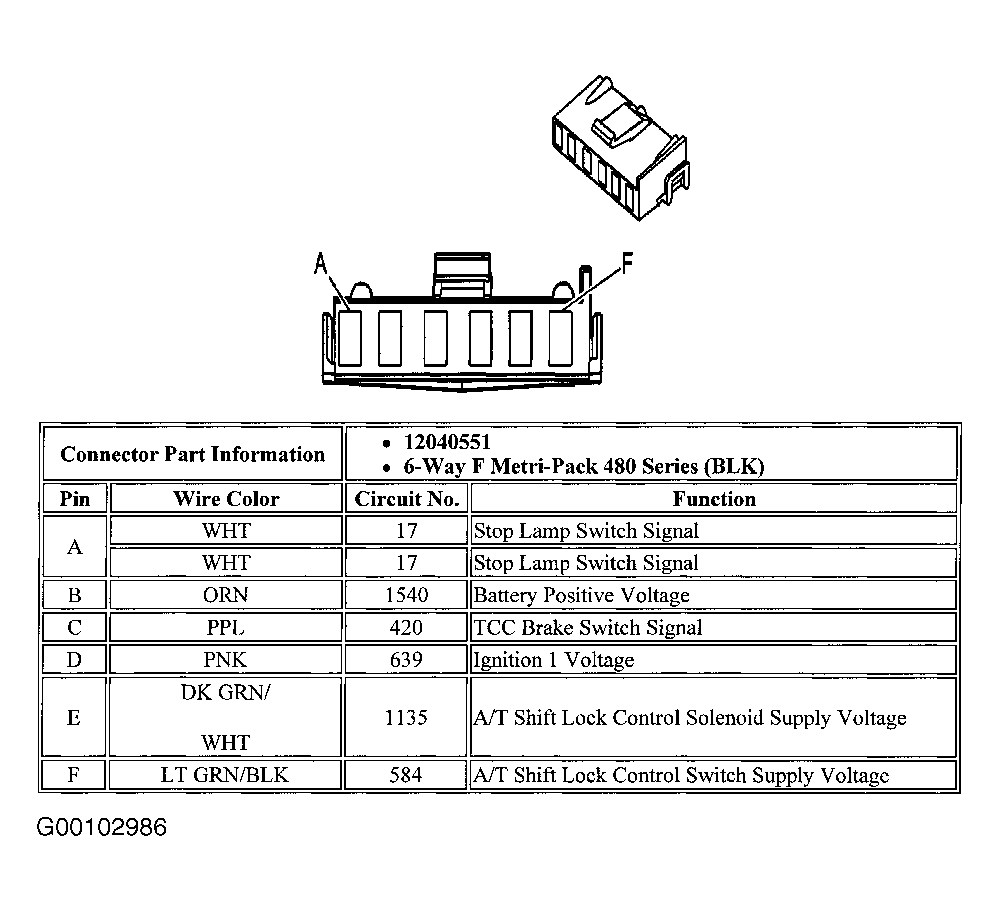

Fig 3: Identifying Stoplamp Switch Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.
