Floor Shift Control Assembly: Installation

  1. Install the transmission control. Install the transmission control bolts. See Fig 2 . Tighten the transmission control bolts to 18 ft lbs. (25 N.m).
  2. Install the range selector cable (2) to the floor shift control. See Fig 1 . Install the end of the range selector cable (1) to the transmission control ball stud.
  3. Connect the shift lock control solenoid wiring harness. Install the front floor console. See FLOOR CONSOLE  .
  4. Check for proper operation of the floor shift control. Adjust the range selector cable if necessary. See RANGE SELECTOR CABLE  under ADJUSTMENTS.

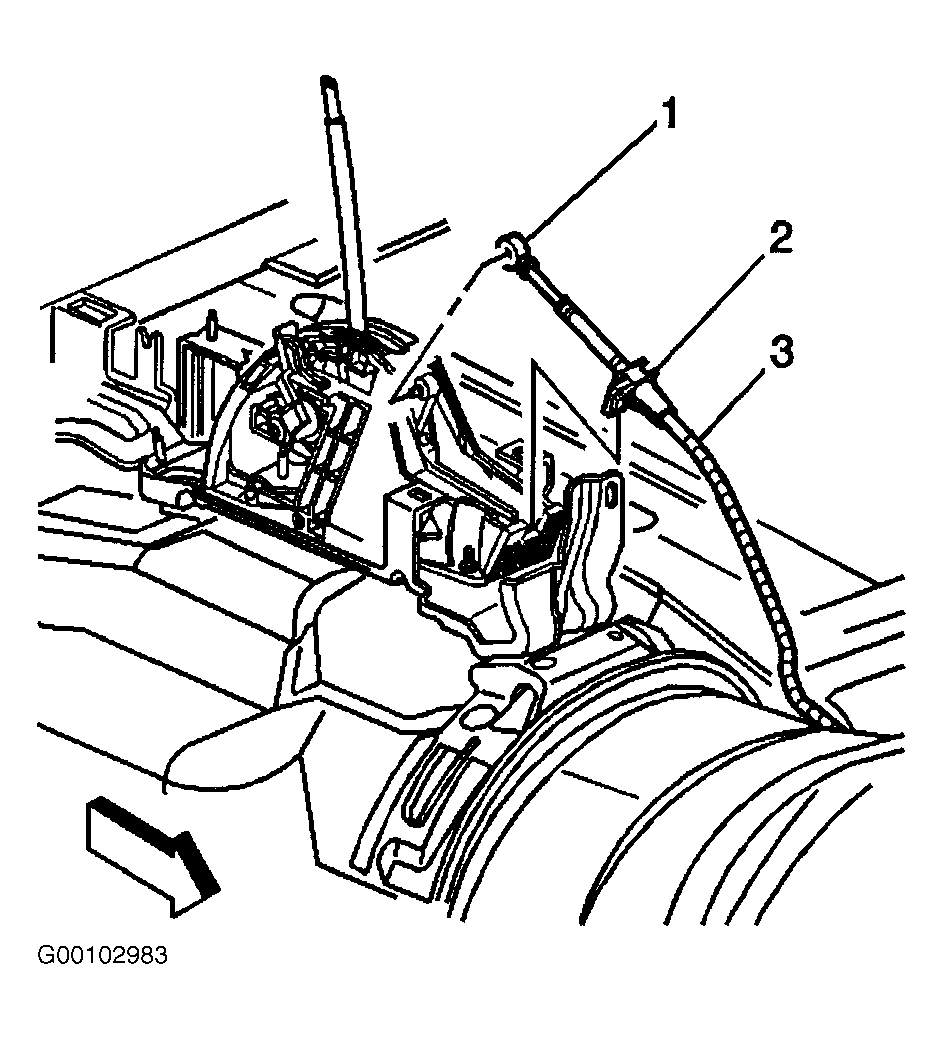

Fig 1: Removing & Installing Floor Shift Wiring & Cable
G00102983Courtesy of GENERAL MOTORS CORP.

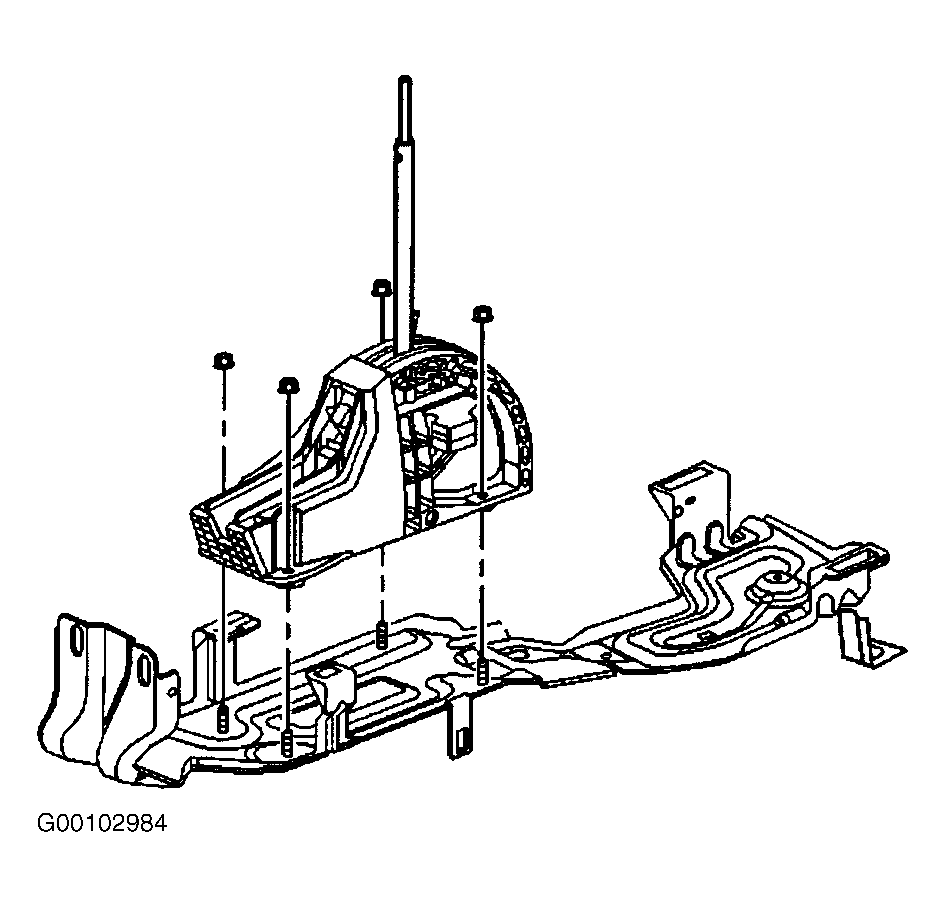

Fig 2: Removing & Installing Floor Shift Control Assembly
G00102984Courtesy of GENERAL MOTORS CORP.
