Floor Shift Control Cable: Installation

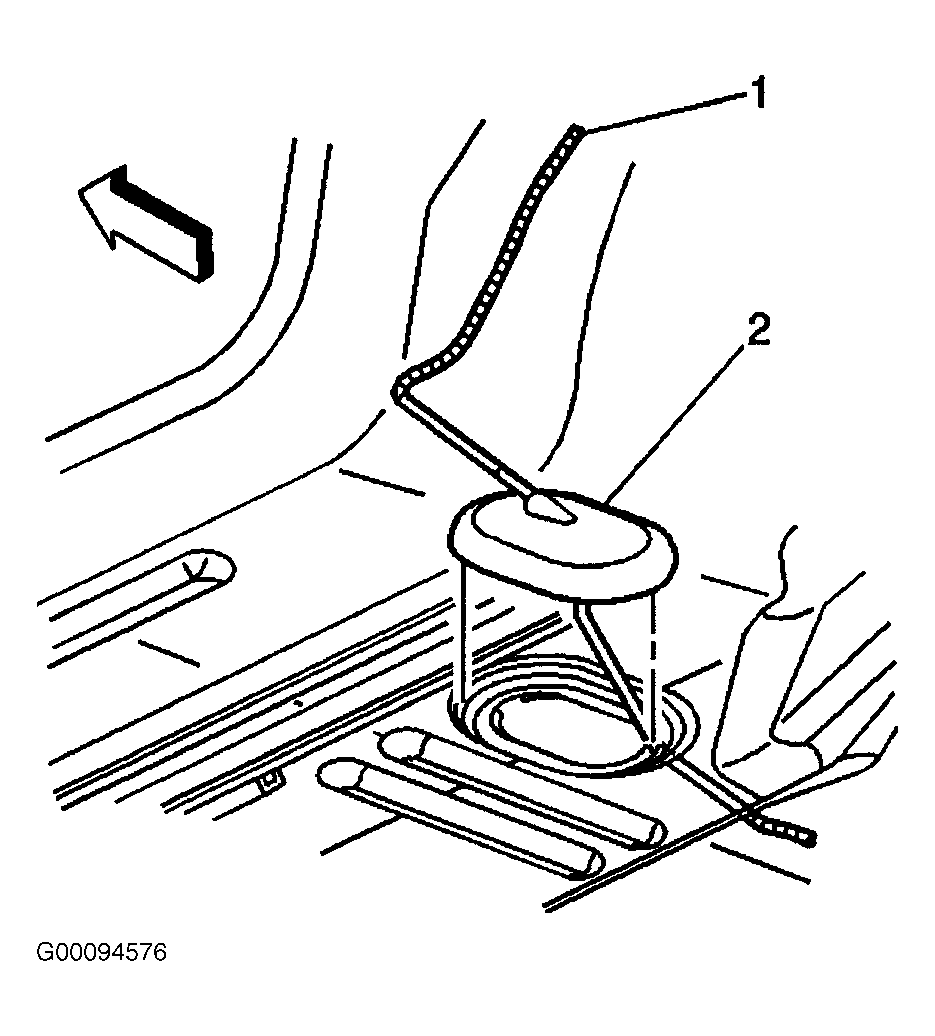

  1. Push the cable down through the floor panel and install the grommet (2). See Figure . Install the range selector cable (2) to the floor shift control assembly. See Figure .
  2. Install the end of the range selector cable (1) to floor control ball stud. Install the drivers side front mat and carpet. Install the console. See FLOOR CONSOLE  .
  3. Raise and support the vehicle. Install the cable to the retainer (3) on the floor panel. See Figure . If the vehicle is equipped with 4WD, install the cable to the retainers located on the transfer case.
  4. On all models, install the range selector cable (4) to the bracket (1). Install the retainer (5) to the range selector cable. Install the end of the range selector cable to the transmission range selector lever ball stud (6). Adjust the range selector cable. Lower the vehicle and check for proper operation.
