Identifying Blower Motor Resistor Harness Connector End View

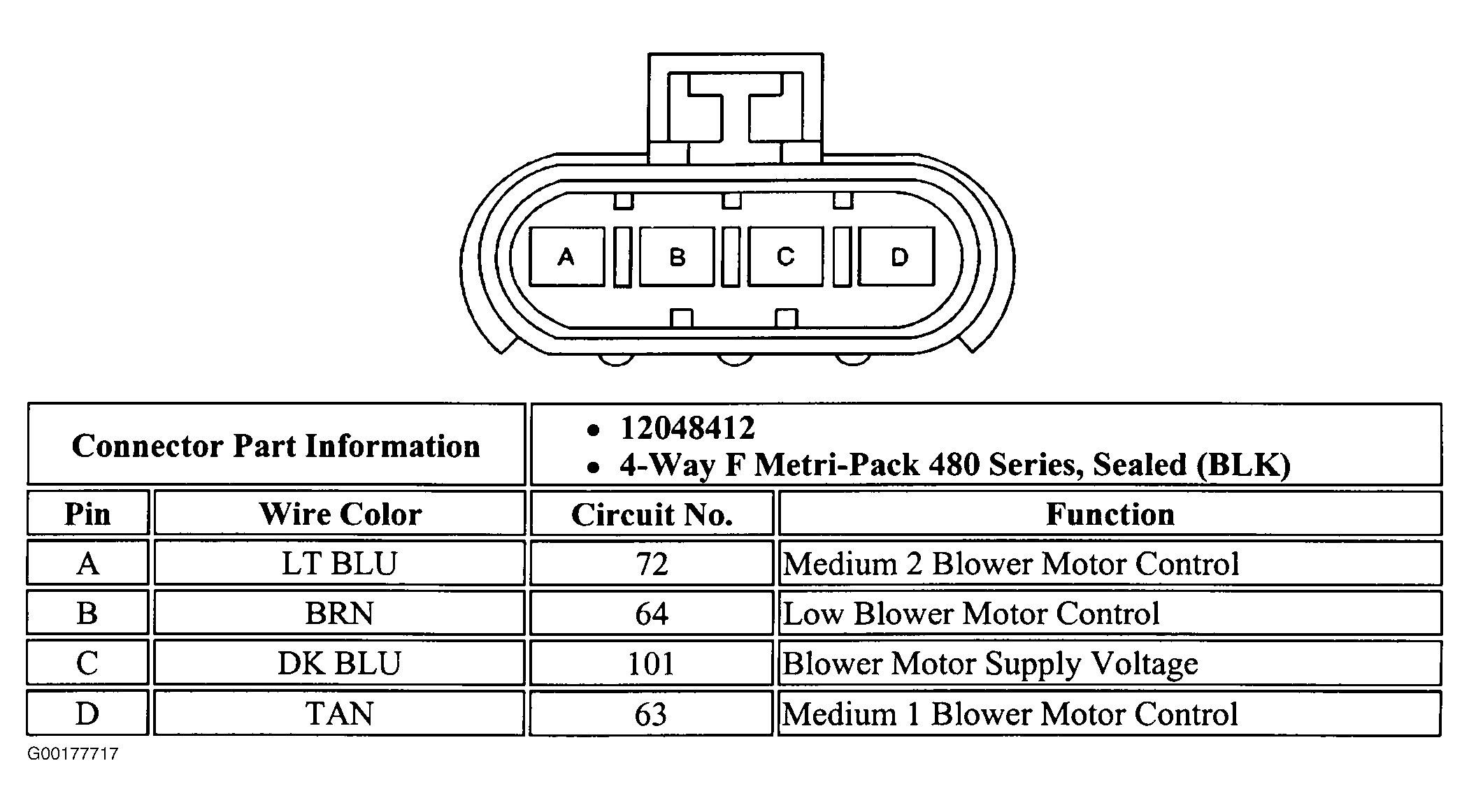

Fig 1: Identifying Blower Motor Resistor Harness Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
